- Description
- Package Content
Details

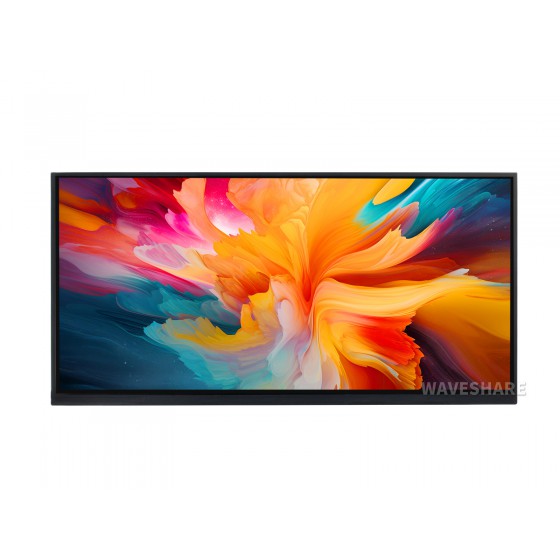

High Resolution | Multi-Point Touch | Full Color
- Size11.6″
- Resolution1768×828
- Display InterfaceHDMI/Type-C
- Display PanelIPS
- Viewing Angle178°
- Touch TypeCapacitive
- Touch Points10-Point
- Touch PortUSB Type-C
- Touch PanelIn-Cell
- OSD MenuBrightness/Contrast
- BrightnessSupports DDC/CI control
- Brightness300cd/m²
- Audio Output 13.5mm Jack
- Audio Output 24PIN Header
- SmartphoneWired Projection
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Working with Raspberry Pi 5
Working with Jetson Series Board
Working with mini PC
Working with laptop
Working With Full-Featured Type-C Smartphone
- Please make sure that the laptop or smartphone itself features a full-featured Type-C interface
- For reference only, the above controller boards or hosts are NOT included
Excellent Display Performance With 178° Wide Viewing Angle
- up to 10-point touch, depending on the operating system
- In-Cell touch technology, built-in touch sensor for a lighter and thinner design
Featuring a simplified structure with Ultra-narrow bezel and Slim thickness, while offering rapid response. Supports customization of glass cover shape and Logo
Normal Display
In-Cell Touch Display
Support audio and video transmission, plug and play,
instantly zoom in the smartphone screen
(For supported mobile phone models, please contact customer service)
Support the following ways to customize the touch screen display in bulk order
Waveshare grows with display
* Waveshare has been focusing on display design for over 10 years.
HDMI Certified
Selection Guide
PartNumber | Display | Touch | Audio | Device Support | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Resolu-tion | Display Port | Display Panel | View Angle | Touch Type | Touch Port | Toughened Glass Panel | Optical Bonding | Spe- aker | Signal Output | Pi | JETSON NANO | PC | |
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system. |
|||||||||||||
2.8inch RPi LCD (A) | 320×240 | SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
3.2inch RPi LCD (B) | 320×240 | SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
3.5inch RPi LCD (A) | 480×320 | SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
3.5inch RPi LCD (B) | 480×320 | SPI | IPS | 160° | Resistive | SPI | × | × | × | × | √ | × | × |
3.5inch RPi LCD (C) | 480×320 | High-Speed SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
4inch RPi LCD (A) | 480×320 | SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO. |
|||||||||||||
2.8inch DPI LCD | 480×640 | DPI | IPS | 160° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
3.5inch DPI LCD | 640×480 | DPI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
4inch DPI LCD (C) | 720×720 | DPI | IPS | 170° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
5inch DPI LCD | 800×480 | DPI | IPS | 160° | – | – | × | × | × | × | √ | × | × |
7inch DPI LCD | 1024×600 | DPI | IPS | 170° | – | – | × | × | × | × | √ | × | × |
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only. |
|||||||||||||
2.8inch DSI LCD | 480×640 | DSI | IPS | 160° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
3.4inch DSI LCD (C) | 800×800 | DSI | IPS | 170° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
4inch DSI LCD | 480×800 | DSI | IPS | 170° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
4inch DSI LCD (C) | 720×720 | DSI | IPS | 170° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
4.3inch DSI LCD | 800×480 | DSI | IPS | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
4.3inch DSI LCD (with case) | 800×480 | DSI | IPS | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
4.3inch DSI QLED | 800×480 | DSI | IPS(QLED) | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
5inch DSI LCD | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
5inch DSI LCD (B) | 800×480 | DSI | IPS | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
5inch DSI LCD (C) | 1024×600 | DSI | IPS | 178° | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (with case A) | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (with cam) | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (with cam and case) | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (B) | 800×480 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (B) (with case A) | 800×480 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (C) | 1024×600 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (C) (with case A) | 1024×600 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
7.9inch DSI LCD | 400×1280 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
8inch DSI LCD | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
8inch DSI LCD (with cam) | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
8inch DSI LCD (C) | 1280×800 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
10.1inch DSI LCD (C) | 1280×800 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
11.9inch DSI LCD | 320×1480 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly. |
|||||||||||||
2.8inch HDMI LCD (H) | 480×640 | HDMI | IPS | 160° | Capacitive | USB-C / I2C | √ | √ | × | × | √ | √ | √ |
3.2inch HDMI LCD (H) | 480×800 | HDMI | IPS | 160° | × | × | × | × | × | × | √ | √ | Display ONLY |
3.4inch 800x800 LCD | 800x800 | HDMI | IPS | 170° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
3.5inch HDMI LCD | 480×320 | HDMI | IPS | 160° | Resistive | SPI | × | × | × | √ | √ | × | Display ONLY |
3.5inch 480x800 LCD | 480×800 | HDMI | IPS | 170° | Capacitive | USB-C | × | × | × | × | √ | √ | √ |
4inch 720x720 LCD | 720x720 | HDMI | IPS | 170° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
4inch HDMI LCD | 480×800 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | × | √ | × | Display ONLY |
4inch HDMI LCD (C) | 720×720 | HDMI | IPS | 170° | Capacitive | USB-C / I2C | √ | √ | × | √ | √ | √ | √ |
4inch HDMI LCD (H) | 480×800 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | √ | √ | × | Display ONLY |
4.3inch HDMI LCD (B) | 800×480 | HDMI | IPS | 160° | Capacitive | USB | × | × | × | √ | √ | √ | √ |
5DP-CAPLCD-H | 1024×600 | HDMI | IPS | 178° | Capacitive | Type-C | √ | × | × | √ | √ | √ | √ |
5DP-CAPLCD-B | 1024×600 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
5DP-CAPLCD-G | 1024×600 | HDMI | IPS | 178° | Resistive | Type-C | √ | × | × | √ | √ | √ | √ |
5inch HDMI LCD | 800×480 | HDMI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
5inch HDMI LCD (with bicolor case) | 800×480 | HDMI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
5inch HDMI LCD (B) | 800×480 | HDMI | TFT | – | Resistive | USB | × | × | × | × | √ | × | √ |
5inch HDMI LCD (B) (with bicolor case) | 800×480 | HDMI | TFT | – | Resistive | USB | × | × | × | × | √ | × | √ |
5inch HDMI LCD (G) | 800×480 | HDMI/VGA | TFT | – | Resistive | USB | × | × | × | √ | √ | × | √ |
5inch HDMI LCD (H) | 800×480 | HDMI/VGA | TFT | – | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
5inch HDMI LCD (H) V4 | 800×480 | HDMI | TFT | – | Capacitive | USB | √ | × | × | × | √ | × | √ |
5inch HDMI AMOLED | 960×544 | HDMI | AMOLED | 170° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
5inch 1080x1080 LCD | 1080×1080 | HDMI | IPS | 160° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
5.5inch HDMI AMOLED | 1080×1920 | HDMI | AMOLED | 170° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
5.5inch HDMI AMOLED (with case A) | 1080×1920 | HDMI | AMOLED | 170° | Capacitive | USB | √ | √ | × | √ | √ | × | × |
5.5inch 1440x2560 LCD | 1440×2560 | HDMI | IPS | 170° | Capacitive | USB | √ | √ | × | √ | √ | × | √ |
5.5inch 1440x2560 LCD (with case A) | 1440×2560 | HDMI | IPS | 170° | Capacitive | USB | √ | √ | × | √ | √ | × | × |
6.25inch 720x1560 LCD | 720×1560 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | × | √ | √ | √ |
7EP-CAPLCD Monitor | 1280×800 | HDMI/Type-C | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
7inch HDMI LCD | 1024×600 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | × | √ | × | Display ONLY |
7inch HDMI LCD (B) | 800×480 | HDMI | TFT | – | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (B) (with bicolor case) | 800×480 | HDMI | TFT | – | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (C) | 1024×600 | HDMI | IPS | 170° | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (C) (with bicolor case) | 1024×600 | HDMI | IPS | 170° | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (H) | 1024×600 | HDMI/VGA | IPS | 170° | Capacitive | USB | × | × | × | √ | √ | √ | √ |
7inch HDMI LCD (H) (with case) | 1024×600 | HDMI/VGA | IPS | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
7HP-CAPQLED | 1024×600 | HDMI | IPS (QLED) | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
7.9inch HDMI LCD | 400×1280 | HDMI | IPS | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
7.9inch Side Monitor | 400×1280 | HDMI | IPS | 170° | × | × | √ | × | √ | × | √ | √ | √ |
7.9inch Touch Monitor | 400×1280 | HDMI | IPS | 170° | Capacitive | USB | √ | × | √ | × | √ | √ | √ |
8DP-CAPLCD | 1280×800 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
8HP-CAPLCD Monitor | 1280×800 | HDMI/Type-C | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
8inch 768x1024 LCD | 768×1024 | HDMI | IPS | 178° | Capacitive | Type-C | √ | × | √ | √ | √ | √ | √ |
8inch 1536x2048 LCD | 1536×2048 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
8.8inch Side Monitor | 480×1920 | HDMI | IPS | 170° | × | × | × | × | √ | × | √ | √ | Display ONLY |
9HP-CAPQLED-B | 1280×720 | HDMI | IPS (QLED) | 178° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
9.3inch 1600x600 LCD | 1600×600 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
9.7inch 768x1024 LCD | 768×1024 | HDMI | IPS | 178° | Capacitive | Type-C | √ | × | √ | √ | √ | √ | √ |
10.1inch HDMI LCD | 1024×600 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | × | √ | × | Display ONLY |
10.1inch HDMI LCD (B) (with case) | 1280×800 | HDMI | IPS | 170° | Capacitive | USB | √ | × | × | × | √ | × | √ |
10.1inch HDMI LCD (E) | 1024×600 | HDMI | IPS | 170° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
10.1inch HDMI LCD (G) (with case) | 1920×1200 | HDMI | IPS | 160° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
10.1inch HDMI LCD (H) (with case) | 1024×600 | HDMI/VGA | TFT | – | Capacitive | USB | × | × | × | × | √ | √ | √ |
10.1inch HDMI LCD (F) (with case) | 1024×600 | HDMI/VGA | IPS | 170° | Capacitive | USB | √ | × | √ | × | √ | √ | √ |
10.1EP-CAPLCD | 1920×1200 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
10.1DP-CAPLCD | 1280×800 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
10.1HP-CAPQLED | 1280×720 | HDMI | IPS (QLED) | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
10.1HP-CAPLCD Monitor | 1280×800 | HDMI/Type-C | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
10.4HP-CAPQLED | 1600×720 | HDMI | IPS(QLED) | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
10.5inch HDMI AMOLED | 2560×1600 | HDMI | AMOLED | 160° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
11.6inch 1768x828 LCD | 1768×828 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C | In-Cell | × | × | √ | √ | √ | √ |
11.6inch HDMI LCD (H) | 1920×1080 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
11.6inch HDMI LCD (H) (with case) | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
11.9inch HDMI LCD | 320×1480 | HDMI | IPS | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
11.9inch Side Monitor | 320×1480 | HDMI | IPS | 170° | × | × | √ | × | √ | × | √ | √ | √ |
11.9inch Touch Monitor | 320×1480 | HDMI | IPS | 170° | Capacitive | USB | √ | × | √ | × | √ | √ | √ |
12.3inch 1920x720 LCD | 1920×720 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C | In-Cell | × | × | √ | √ | √ | √ |
12.3inch HDMI LCD | 1920×720 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
13.3inch HDMI LCD (H) | 1920×1080 | HDMI | IPS | 178° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
13.3inch HDMI LCD (H) (with case) | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | × | √ | √ | √ | √ | √ |
13.3inch HDMI LCD (H) (with case) V2 | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | × | √ | √ | √ | √ | √ |
13.3inch QHD AMOLED | 2560×1440 | HDMI/Type-C | AMOLED | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
14inch 2160x1440 LCD | 2160×1440 | HDMI/Type-C/DP | IPS | 178° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
15.6inch Dual Monitor | 1920×1080 | HDMI/Type-C | IPS | 178° | × | × | × | × | √ | √ | √ | √ | √ |
15.6inch HDMI LCD | 1920×1080 | HDMI | IPS | 178° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
15.6inch HDMI LCD (H) (with case) | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | × | √ | √ | √ | √ | √ |
15.6inch FHD Monitor | 1920×1080 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C / USB | √ | × | √ | √ | √ | √ | √ |
15.6HP-CAPQLED | 1920×1080 | HDMI | IPS(QLED) | 178° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
15.6inch QLED Monitor | 1920×1080 | HDMI | IPS(QLED) | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
18.5inch FHD LCD | 1080×1920 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
21.5inch FHD LCD | 1080×1920 | HDMI | IPS | 170° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
21.5inch FHD Monitor | 1080×1920 | HDMI | IPS | 170° | Capacitive | Type-C | √ | √ | √ | × | √ | √ | √ |
Have a look :
Weight: 0.847 kg
Quick Overview
- 11.6inch 1768×828 LCD x1
- HDMI flat cable ~1m x1
- USB-A to Type-C cable ~1m x1
- Type-C dual-plug cable x1
- Triangular stand x1
- HDMI to Micro HDMI adapter x1
- Cleaning cloth x1
- Button board x1
- 1.27H 4PIN button board cable x1
- Capacitive touch pen x1
