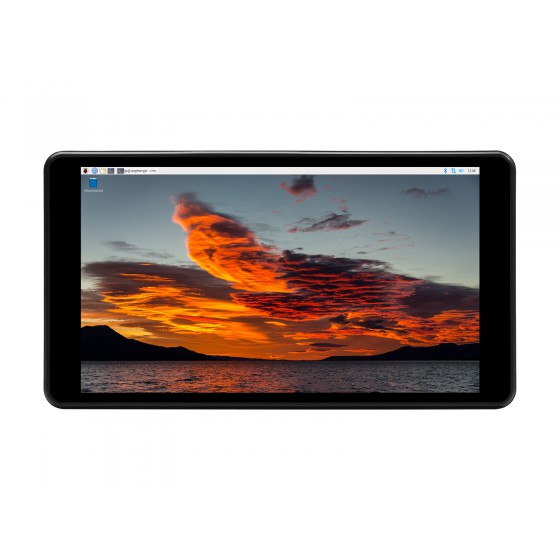

Raspberry Pi 5.5inch 2K Capacitive Touch LCD Display, HDMI Interface, IPS Screen, 1440×2560

SKU:23113
Part No.:5.5inch 1440x2560 LCD (with case A)

$70.99 Qty:

PriceQuantity
$68.5910+
$67.3950+
$66.91100+

Version Options

The display only The display with case

Related Products:

13.3inch 2K AMOLED Touch Display, 2560×1440, HDMI/Type-C Display Interface, Optical Bonding Toughened Glass Panel, Metal Case

10.5inch Capacitive Touch AMOLED, HDMI, 2560×1600 2K Resolution, Optical Bonding

8inch 2K Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1536×2048, IPS, High Compatibility

Description
Package Content

Details

Raspberry Pi 5.5inch 2K Capacitive Touch LCD Display, HDMI Interface, IPS Screen, 1440×2560, Toughen Glass Panel, with case(optional)

5.5″ 2K Touch Display

High Resolution | Multi-touch | Full Color

Size5.5″
Resolution1440×2560
Display InterfaceHDMI
Display PanelIPS
Viewing Angle170°
Touch TypeCapacitive
Touch Points10-Point
Touch PortUSB
Touch PanelToughened Glass
Touch Panel TechOptical Bonding
Audio Output13.5mm Jack
Audio Output24PIN Header

The display orientation is portrait by default, 1440×2560 resolution (H×V). Change the software config for landscape display.

Version Options

For more detailed part list, please refer to the package content

The display only

The display with case
Only support Raspberry Pi 4B

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali, single point touch, driver free

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

For the moment, only the Raspberry Pi 4B and CM4 have adequate CPU performance to drive this 2K display completely.
Support more powerful future versions as long as its GPU performance is equivalent to or better than the Pi 4B.
Limited by the hardware, when working with Raspberry Pi 3B+/Pi 3B/Zero 2w/Zero w, only supports default portrait display and cannot be rotated.
The case only supports Raspberry Pi 4B.

Connection Examples

Working with Raspberry Pi 4B

The display only

The display with case

Working with Compute Module 4

Working with mini PC

for reference only, Raspberry Pi 4B and CM4 are not included

IPS Display Panel

Excellent Display & Color Performance

2K High Resolution

1440 x 2560 Pixels
Optical bonding, dust-proof and clearer display

Capacitive 10-point Touch

Support 10-point touch, the actual number of touch points is related
to the software and system
Toughened glass panel, hardness up to 6H

Interface Introduction

Dimensions

the display only

the display with case

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services

Wiki: www.waveshare.com/wiki/5.5inch_1440x2560_LCD

Product Certification

HDMI Certified

Selection Guide

PartNumber	Display				Touch				Audio		Device Support
PartNumber	Resolu-tion	Display Port	Display Panel	View Angle	Touch Type	Touch Port	Toughened Glass Panel	Optical Bonding	Spe- aker	Signal Output	Pi	JETSON NANO	PC
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
2.8inch RPi LCD (A)	320×240	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.2inch RPi LCD (B)	320×240	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (A)	480×320	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (B)	480×320	SPI	IPS	160°	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (C)	480×320	High-Speed SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
4inch RPi LCD (A)	480×320	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD	480×640	DPI	IPS	160°	Capacitive	I2C	√	√	×	×	√	×	×
3.5inch DPI LCD	640×480	DPI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
4inch DPI LCD (C)	720×720	DPI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
5inch DPI LCD	800×480	DPI	IPS	160°	–	–	×	×	×	×	√	×	×
7inch DPI LCD	1024×600	DPI	IPS	170°	–	–	×	×	×	×	√	×	×
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only.
2.8inch DSI LCD	480×640	DSI	IPS	160°	Capacitive	I2C	√	√	×	×	√	×	×
3.4inch DSI LCD (C)	800×800	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
4inch DSI LCD	480×800	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
4inch DSI LCD (C)	720×720	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
4.3inch DSI LCD	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
4.3inch DSI LCD (with case)	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
4.3inch DSI QLED	800×480	DSI	IPS(QLED)	160°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD (B)	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD (C)	1024×600	DSI	IPS	178°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD (D)	720×1280	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
6.25inch DSI LCD	720×1560	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
7inch DSI LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with case A)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with cam)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with cam and case)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (B)	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (B) (with case A)	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (C)	1024×600	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (C) (with case A)	1024×600	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (E)	1280×800	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
7.9inch DSI LCD	400×1280	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
8inch DSI LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
8inch DSI LCD (with cam)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
8inch DSI LCD (C)	1280×800	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
8.8inch DSI LCD	480×1920	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
10.1inch DSI LCD (C)	1280×800	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
11.9inch DSI LCD	320×1480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly.
2.8inch HDMI LCD (H)	480×640	HDMI	IPS	160°	Capacitive	USB-C / I2C	√	√	×	×	√	√	√
3.2inch HDMI LCD (H)	480×800	HDMI	IPS	160°	×	×	×	×	×	×	√	√	Display ONLY
3.4inch 800x800 LCD	800x800	HDMI	IPS	170°	Capacitive	Type-C	√	√	×	√	√	√	√
3.5inch HDMI LCD	480×320	HDMI	IPS	160°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
3.5inch 480x800 LCD	480×800	HDMI	IPS	170°	Capacitive	USB-C	×	×	×	×	√	√	√
4inch 720x720 LCD	720x720	HDMI	IPS	170°	Capacitive	Type-C	√	√	×	√	√	√	√
4inch HDMI LCD	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
4inch HDMI LCD (C)	720×720	HDMI	IPS	170°	Capacitive	USB-C / I2C	√	√	×	√	√	√	√
4inch HDMI LCD (H)	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
4.3inch HDMI LCD (B)	800×480	HDMI	IPS	160°	Capacitive	USB	×	×	×	√	√	√	√
5DP-CAPLCD-H	1024×600	HDMI	IPS	178°	Capacitive	Type-C	√	×	×	√	√	√	√
5DP-CAPLCD-B	1024×600	HDMI	IPS	178°	Capacitive	Type-C	√	√	×	√	√	√	√
5DP-CAPLCD-G	1024×600	HDMI	IPS	178°	Resistive	Type-C	√	×	×	√	√	√	√
5inch HDMI LCD	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (with bicolor case)	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (B)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (B) (with bicolor case)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (G)	800×480	HDMI/VGA	TFT	–	Resistive	USB	×	×	×	√	√	×	√
5inch HDMI LCD (H)	800×480	HDMI/VGA	TFT	–	Capacitive	USB	√	×	×	√	√	√	√
5inch HDMI LCD (H) V4	800×480	HDMI	TFT	–	Capacitive	USB	√	×	×	×	√	×	√
5inch HDMI AMOLED	960×544	HDMI	AMOLED	170°	Capacitive	USB	√	√	×	√	√	√	√
5inch 1080x1080 LCD	1080×1080	HDMI	IPS	160°	Capacitive	Type-C	√	√	√	√	√	√	√
5inch 720x1280 LCD	720×1280	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	×	√	√	√
5.5inch HDMI AMOLED	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	√	×	√	√	√	√
5.5inch HDMI AMOLED (with case A)	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	√	×	√	√	×	×
5.5inch 1440x2560 LCD	1440×2560	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	×	√
5.5inch 1440x2560 LCD (with case A)	1440×2560	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	×	×
6.25inch 720x1560 LCD	720×1560	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	×	√	√	√
7EP-CAPLCD	1280×800	HDMI	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
7EP-CAPLCD Monitor	1280×800	HDMI/Type-C	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
7inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
7inch HDMI LCD (B)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (B) (with bicolor case)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C) (with bicolor case)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (H)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	×	×	×	√	√	√	√
7inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
7HP-CAPQLED	1024×600	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
7.9inch HDMI LCD	400×1280	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
7.9inch Side Monitor	400×1280	HDMI	IPS	170°	×	×	√	×	√	×	√	√	√
7.9inch Touch Monitor	400×1280	HDMI	IPS	170°	Capacitive	USB	√	×	√	×	√	√	√
8DP-CAPLCD	1280×800	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
8HP-CAPLCD Monitor	1280×800	HDMI/Type-C	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
8inch 768x1024 LCD	768×1024	HDMI	IPS	178°	Capacitive	Type-C	√	×	√	√	√	√	√
8inch 1536x2048 LCD	1536×2048	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
8.8inch Side Monitor	480×1920	HDMI	IPS	170°	×	×	×	×	√	×	√	√	Display ONLY
9HP-CAPQLED-B	1280×720	HDMI	IPS (QLED)	178°	Capacitive	USB	√	×	×	√	√	√	√
9.3inch 1600x600 LCD	1600×600	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
9.7inch 768x1024 LCD	768×1024	HDMI	IPS	178°	Capacitive	Type-C	√	×	√	√	√	√	√
10.1inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
10.1inch HDMI LCD (B) (with case)	1280×800	HDMI	IPS	170°	Capacitive	USB	√	×	×	×	√	×	√
10.1inch HDMI LCD (E)	1024×600	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	√	√
10.1inch HDMI LCD (G) (with case)	1920×1200	HDMI	IPS	160°	Capacitive	USB	√	√	√	√	√	√	√
10.1inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	TFT	–	Capacitive	USB	×	×	×	×	√	√	√
10.1inch HDMI LCD (F) (with case)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	√	×	√	×	√	√	√
10.1EP-CAPLCD	1920×1200	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
10.1DP-CAPLCD	1280×800	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
10.1HP-CAPQLED	1280×720	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
10.1HP-CAPLCD Monitor	1280×800	HDMI/Type-C	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
10.4HP-CAPQLED	1600×720	HDMI	IPS(QLED)	178°	Capacitive	Type-C	√	√	√	√	√	√	√
10.5inch HDMI AMOLED	2560×1600	HDMI	AMOLED	160°	Capacitive	USB	√	√	√	√	√	√	√
11.6inch 1768x828 LCD	1768×828	HDMI/Type-C	IPS	178°	Capacitive	Type-C	In-Cell	×	×	√	√	√	√
11.6inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
11.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
11.9inch HDMI LCD	320×1480	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
11.9inch Side Monitor	320×1480	HDMI	IPS	170°	×	×	√	×	√	×	√	√	√
11.9inch Touch Monitor	320×1480	HDMI	IPS	170°	Capacitive	USB	√	×	√	×	√	√	√
12.3inch 1920x720 LCD	1920×720	HDMI/Type-C	IPS	178°	Capacitive	Type-C	In-Cell	×	×	√	√	√	√
12.3inch HDMI LCD	1920×720	HDMI	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
13.3inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
13.3inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
13.3inch HDMI LCD (H) (with case) V2	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
13.3inch QHD AMOLED	2560×1440	HDMI/Type-C	AMOLED	178°	Capacitive	Type-C	√	√	√	√	√	√	√
14inch 2160x1440 LCD	2160×1440	HDMI/Type-C/DP	IPS	178°	Capacitive	Type-C	√	√	×	√	√	√	√
15.6inch FHD Monitor (C)	1920×1080	mini HDMI/Type-C	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
15.6inch Dual Monitor	1920×1080	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√
15.6inch HDMI LCD	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
15.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
15.6inch FHD Monitor	1920×1080	HDMI/Type-C	IPS	178°	Capacitive	Type-C / USB	√	×	√	√	√	√	√
15.6HP-CAPQLED	1920×1080	HDMI	IPS(QLED)	178°	Capacitive	USB	√	√	×	√	√	√	√
15.6inch QLED Monitor	1920×1080	HDMI	IPS(QLED)	178°	Capacitive	Type-C	√	√	√	√	√	√	√
18.5inch FHD LCD	1080×1920	HDMI/Type-C	IPS	178°	Capacitive	Type-C	√	√	×	√	√	√	√
21.5inch FHD LCD	1080×1920	HDMI	IPS	170°	Capacitive	Type-C	√	√	×	√	√	√	√
21.5inch FHD Monitor	1080×1920	HDMI	IPS	170°	Capacitive	Type-C	√	√	√	×	√	√	√

Have a look :
RPi LCD Comparing

Weight: 0.173 kg

Quick Overview

5.5inch 1440x2560 LCD kit

5.5inch 1440x2560 LCD x1
HDMI cable x1
USB type A plug to micro B plug cable x1
USB adapter (B) x1
HDMI adapter (B) x1
HDMI to Micro HDMI adapter (C) x1
USB adapter (D) x1
Screws pack x1

5.5inch 1440x2560 LCD with case kit

5.5inch 1440x2560 LCD x1
Black ABS case x1
Cooling fan x1
HDMI to Micro HDMI adapter (C) x1
USB adapter (D) x1
Screws pack x1

Waveshare

Raspberry Pi 5.5inch 2K Capacitive Touch LCD Display, HDMI Interface, IPS Screen, 1440×2560

Details

Selection Guide

Quick Overview

5.5inch 1440x2560 LCD kit

5.5inch 1440x2560 LCD with case kit

INFO & SERVICES

HELP

LINKS

BE THE FIRST TO KNOW
