7inch Capacitive Touch Screen LCD (H), 1024×600, HDMI, IPS, Various Systems Support

SKU: 14628
Part Number: 7inch HDMI LCD (H)
UPC: 614961952010

$57.99
$53.9910+
$51.9950+
$51.19100+
Description

Details

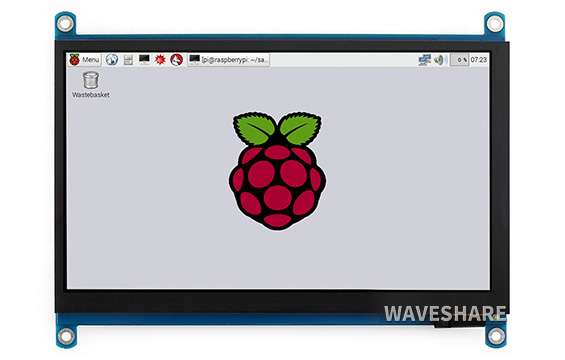

7inch Capacitive Touch Screen LCD (H), 1024×600, HDMI, IPS, Various Devices & Systems Support
7" HDMI Touch Display
  • Size7"
  • Resolution1024×600
  • Display PortHDMI / VGA
  • Display PanelIPS
  • Viewing Angle170°
  • Touch TypeCapacitive
  • Touch Points5-Points
  • Touch PortUSB
  • OSD MenuBrightness/Contrast
  • Audio Output13.5mm Jack
  • Audio Output24PIN Header
  • GamingXbox360/PS4/Switch
Device & System Support

Raspberry Pi
Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free
Game Console
Xbox360, PS4, Switch...
Hookup Example

Working with Raspberry Pi 4

Working with Raspberry Pi Zero W

Working with AI Computer Jetson Nano

Working with mini PC

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system.

Enjoy Gaming

* audio output via earphone/speaker port.

Demystifying Design Details
  1. LCD FFC cable anti-interference design, more stable for industrial application
  2. VCOM voltage adjustment for optimizing display effect
  3. USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
  4. 4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
  5. One-way isolation circuit. When powered from Touch port, the 5V voltage from Touch port will provide power supply for both touch function and display circuit. When powered from Power Only port, the Touch port will provide power supply for just touch function, and the other circuit will be powered via Power Only port. The two power inputs are totally isolated to prevent any breakdown
  6. Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit
  7. OSD menu config buttons for adjusting backlight and display color
  8. DC-DC LCD driver circuit, low heating on long term operation
  9. VGA port to support VGA devices
Appearance and Dimensions
Resources & Services
Product Certification

HDMI Certified

* We are an official authorized HDMI Adopter.

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PartNumberDisplayTouchAudioDevice Support
ResolutionDisplay PortDisplay PanelView AngleTouch TypeTouch PortTouch PanelSpe-
aker
Signal OutputPiJETSON NANOPC
GPIO Displays
3.2inch RPi LCD (C) 320×240 High-Speed SPI TFT Resistive SPI × × × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT Resistive SPI × × × ×
4inch RPi LCD (C) 480×320 High-Speed SPI TFT Resistive SPI × × × ×
HDMI / TYPE-C Displays
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × Display ONLY
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × Display ONLY
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB ×
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C Toughened Glass × × × ×
5inch DPI LCD 800×480 DPI IPS 160° × × × × × × ×
5inch HDMI LCD 800×480 HDMI TFT Resistive SPI × × × ×
5inch HDMI LCD (with case) 800×480 HDMI TFT Resistive SPI × × × ×
5inch HDMI LCD (B) 800×480 HDMI TFT Resistive USB × × ×
5inch HDMI LCD (B) (with case) 800×480 HDMI TFT Resistive USB × × ×
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT Resistive USB × ×
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT Capacitive USB Toughened Glass ×
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB Toughened Glass ×
5.5inch HDMI AMOLED (with case) 1080×1920 HDMI AMOLED 170° Capacitive USB Toughened Glass × × ×
7inch DPI LCD 1024×600 DPI IPS 170° × × × × × × ×
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT Capacitive USB × × ×
7inch HDMI LCD (B) (with case) 800×480 HDMI TFT Capacitive USB × × ×
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × ×
7inch HDMI LCD (C) (with case) 1024×600 HDMI IPS 170° Capacitive USB × × ×
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB ×
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB Toughened Glass ×
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × Display ONLY
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT Capacitive USB × ×
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB Toughened Glass × × ×
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB Toughened Glass
12.5inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB Toughened Glass
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB Toughened Glass
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB Toughened Glass
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB Toughened Glass
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB Toughened Glass

Have a look :
RPi LCD Comparing

Package Content

Weight: 0.273 kg

Quick Overview

  1. 7inch HDMI LCD (H) x1
  2. HDMI cable x1
  3. HDMI to Micro HDMI Adapter x1
  4. USB type A plug to micro B plug cable x1
  5. RPi screws pack (4pcs) x 1
  6. Quick start sheet x1
