STLINK-V3SET, modular debugger / programmer for STM32 / STM8

SKU: 15880
Part Number: STLINK-V3SET
Brand: ST




STLINK-V3SET, modular in-circuit debugger and programmer for STM32/STM8
STLINK-V3SET Debugger/Programmer

Suitable for STM8 / STM32 microcontrollers

The STLINK-V3SET is a modular stand-alone debugging and programming probe for the STM8 and STM32 microcontrollers. The SWIM and JTAG/SWD interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

Features at a glance
  • Stand-alone probe with modular extensions
  • Self-powered through a Micro-B USB connector (does not provide power supply to the target application)
  • USB 2.0 high-speed compatible interface
  • Direct firmware update (DFU) support, to use with more future devices
  • Supports JTAG / SWD interfaces, 3V~3.6V application voltage support and 5 V tolerant inputs
  • Supports SWIM interface, 1.65V~5.5V application voltage support, only available with adapter board MB1440
  • Virtual COM port (VCP) specific features:
    • 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
    • VCP frequency up to 15 MHz
    • Available on STDC14 debug connector (not available on MIPI10)
  • Drag-and-drop Flash programming
  • Two color LEDs: communication, power

Software Support

Hardware Support

All STM32 MCUs with JTAG / SWD interface

All STM8 MCUs with SWIM interface

  • for reference only, the STM32 and STM8 boards above are NOT included
  • JP4 and JP6 jumper caps must be connected to use the SWIM interface

Product assembly diagram

STLINK Series Selection Guide
JTAG/SWD application voltage 1.65V~3.6V① 3V~3.6V 1.65V~3.6V①
SWIM application voltage N/A 1.65V~5.5V 1.65V~5.5V
SWV support YES②
Debug interface multi multi③ 2
LED Indicator two colors④
① ST-LINK/V2 and STLINK-V3MINIE support STM32 low-power devices.
② Only available for STM32 at present.
③ STLINK-V3SET features GPIO port besides the programming port.
④ Two colors LED indicates both power and communication.

What's On Board
  1. Micro USB port
  2. Power LED indicator
  3. COM LED indicator
    COM LED is blinking RED: the first USB enumeration with the PC is taking place.
    COM LED is RED: communication between STLINK-V3SET and the PC is established (end of enumeration).
    COM LED is blinking GREEN/RED: data are being exchanged between the target and the PC.
  4. UART header (VCP)
  5. SWIM header
  6. SWD header
    enabled when jumper cap is connected
  2. CAN header
    enabled when jumper cap is connected
  4. UART Bridge
  5. SPI/UART/I2C/CAN/GPIOs Bridge
  6. SPI Bridge
  7. JTAG20 header
  8. STDC14 header

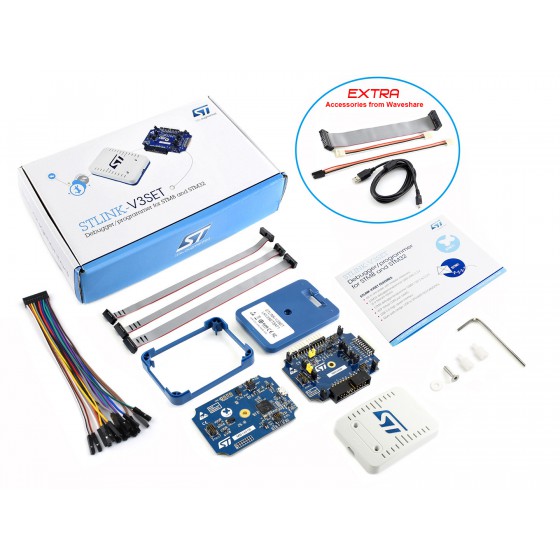

Product show

Outline dimensions

Resources & Services

Weight: 0.23 kg
