3.2inch RPi LCD (C), 320x240, 125MHz High-Speed SPI

SKU: 16088
Part Number: 3.2inch RPi LCD (C)
Brand: Waveshare
UPC: 614961953918

$24.99
Description

Details

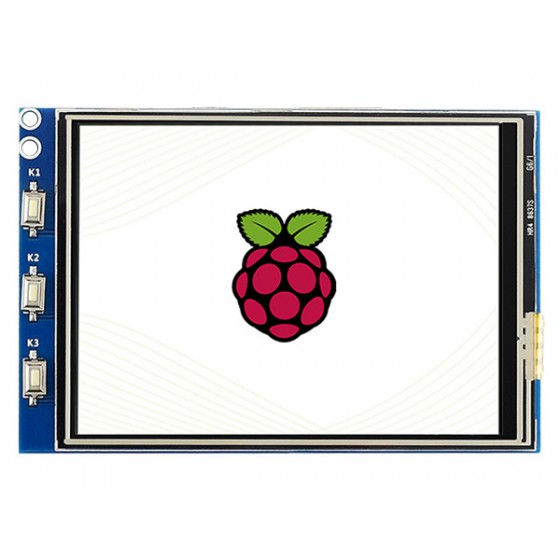

320x240, 3.2 inch Touch Screen TFT LCD Designed for Raspberry Pi, 125MHz High-Speed SPI

Features

  • 320x240 hardware resolution

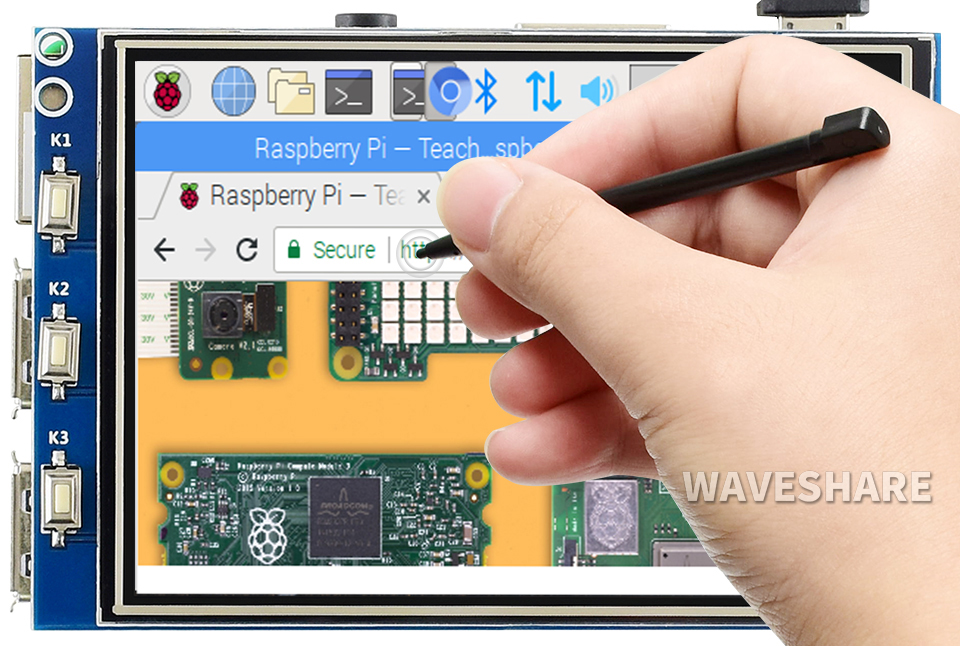

  • Resistive touch control

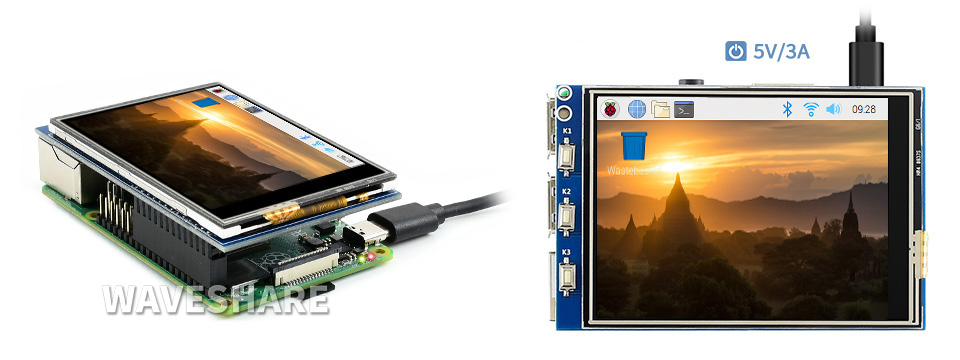

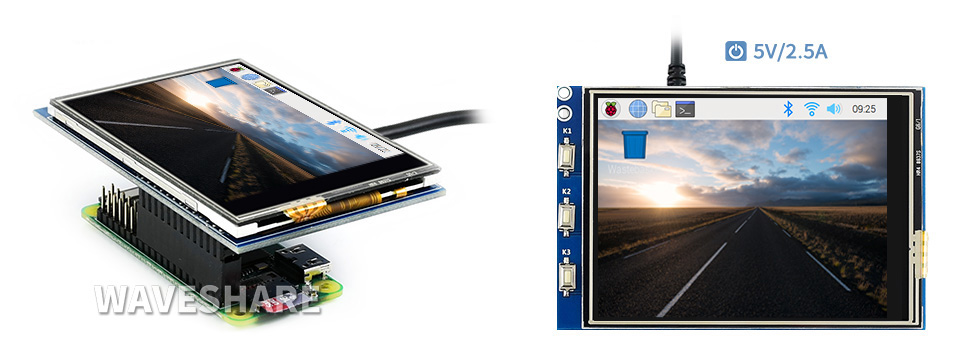

  • Supports any revision of Raspberry Pi (directly-pluggable)
  • 125MHz High-Speed SPI signal transmission, clear & stable display effect
  • Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
  • Supports FBCP software driver as well, allows to config software resolution and set up dual-display
  • Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
  • High quality immersion gold surface plating
  • Combined with the Raspberry Pi (refresh rate up to 50Hz), allows you to:
    • Watch videos (multi formats like MP4)
    • Play video games (RetroPie, take a bite)
    • Take photos by touching (up to 17 camera modes)
    • Use software keyboard (system interaction without keyboard/mouse)

Key Parameters

LCD Type TFT
LCD Interface SPI
Touch Screen Type Resistive
Touch Screen Controller XPT2046
Colors 65536
Backlight LED
Resolution 320x240 (Pixel)
Aspect Ratio 8:5
Power Consumption TBD
Backlight Current TBD
Operating Temp. (℃) TBD

Interface

PIN NO. SYMBOL DESCRIPTION
1、17 3.3V Power positive (3.3V power input)
2、4 5V Power positive (5V power input)
3、5、7、8、10、22 NC NC
6、9、14、20、25 GND Ground
11 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
12 KEY1 Key
13 RST Reset, low active
15 LCD_RS Instruction/Data Register selection, low for instruction, high for data
16 KEY2 Key
18 KEY3 Key
19 LCD_SI / TP_SI SPI data input of LCD / Touch Panel
21 TP_SO SPI data output of Touch Panel
23 LCD_SCK / TP_SCK SPI clock of LCD / Touch Panel
24 LCD_CS LCD chip selection, low active
26 TP_CS Touch Panel chip selection, low active

External Dimension

3.2inch-RPi-LCD-C-dimension

Development Resources

Wiki : www.waveshare.com/wiki/3.2inch_RPi_LCD_(C)

Selection Guide

PartNumberDisplayTouchAudioDevice Support
ResolutionDisplay PortDisplay PanelView AngleTouch TypeTouch PortTouch PanelSpe-
aker
Signal OutputPiJETSON NANOPC
GPIO Displays
3.2inch RPi LCD (C) 320×240 High-Speed SPI TFT Resistive SPI × × × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT Resistive SPI × × × ×
4inch RPi LCD (C) 480×320 High-Speed SPI TFT Resistive SPI × × × ×
HDMI / TYPE-C Displays
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × Display ONLY
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × Display ONLY
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB ×
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C Toughened Glass × × × ×
5inch DPI LCD 800×480 DPI IPS 160° × × × × × × ×
5inch HDMI LCD 800×480 HDMI TFT Resistive SPI × × × ×
5inch HDMI LCD (with case) 800×480 HDMI TFT Resistive SPI × × × ×
5inch HDMI LCD (B) 800×480 HDMI TFT Resistive USB × × ×
5inch HDMI LCD (B) (with case) 800×480 HDMI TFT Resistive USB × × ×
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT Resistive USB × ×
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT Capacitive USB Toughened Glass ×
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB Toughened Glass ×
5.5inch HDMI AMOLED (with case) 1080×1920 HDMI AMOLED 170° Capacitive USB Toughened Glass × × ×
7inch DPI LCD 1024×600 DPI IPS 170° × × × × × × ×
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT Capacitive USB × × ×
7inch HDMI LCD (B) (with case) 800×480 HDMI TFT Capacitive USB × × ×
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × ×
7inch HDMI LCD (C) (with case) 1024×600 HDMI IPS 170° Capacitive USB × × ×
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB ×
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB Toughened Glass ×
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × Display ONLY
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT Capacitive USB × ×
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB Toughened Glass × × ×
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB Toughened Glass
12.5inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB Toughened Glass
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB Toughened Glass
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB Toughened Glass
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB Toughened Glass
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB Toughened Glass

Have a look :
RPi LCD Comparing

Package Content

Weight: 0.054 kg

Quick Overview

  1. 3.2inch RPi LCD (C) x1
  2. Touch pen x1
  3. RPi screws pack (2pcs) x1
