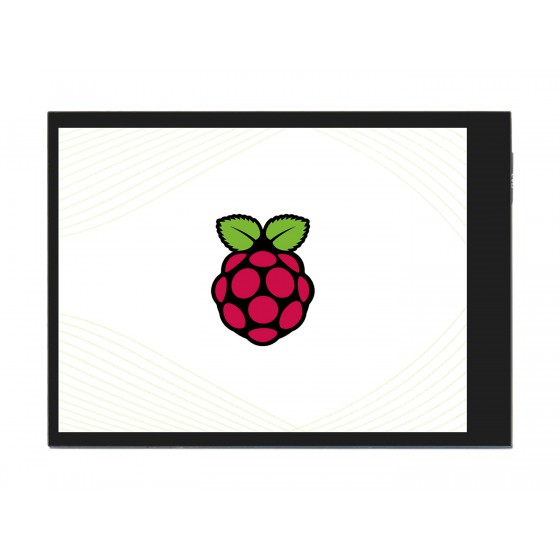

2.8inch Capacitive Touch Screen LCD for Raspberry Pi, 480×640, DPI, IPS, Optical Bonding Toughened Glass Cover, Low Power

SKU:18628
Part No.:2.8inch DPI LCD
Brand:Waveshare

$34.99
PriceQuantity
$33.9910+
$33.4950+
$33.29100+
Related Products:
Description

Details

2.8inch Capacitive Touch Screen LCD for Raspberry Pi, 480×640, DPI, IPS, Optical Bonding Toughened Glass Cover, Low Power Solution
2.8" DPI Touch Display
  • Size2.8"
  • Resolution480×640
  • Display PortDPI666 (262K Colors)
  • Display PanelIPS
  • Viewing Angle160°
  • Touch TypeCapacitive
  • Touch Points5-Points
  • Touch PortI2C
  • Touch PanelToughened Glass
  • Touch Panel TechOptical Bonding
  • Power ConsumptionLow Power
Device & System Support

Raspberry Pi
Based on Raspberry Pi 40PIN GPIO header
Driven by Raspberry Pi DPI666 interface, up to 60Hz refresh rate
5-Points touch control through Raspberry Pi I2C interface
Supports systems like Raspbian, Kali...

Supports future version which is backward compatible

  • The display orientation is portrait by default, 480×640 resolution (H×V). Change the software config for landscape display.
Connection Examples

Working with Raspberry Pi 4

Working with Raspberry Pi 3B+

Working with Raspberry Pi Zero W

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) Optical Bonding screen, better display experience, dust-proof.

Appearance and Dimensions
Resources & Services

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PartNumberDisplayTouchAudioDevice Support
Resolu-tionDisplay PortDisplay PanelView AngleTouch TypeTouch PortToughened Glass PanelOptical BondingSpe-
aker
Signal OutputPiJETSON NANOPC
SPI DISPLAYS
PROS: low price.
CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
2.8inch RPi LCD (A) 320×240 SPI TFT Resistive SPI × × × × × ×
3.2inch RPi LCD (B) 320×240 SPI TFT Resistive SPI × × × × × ×
3.5inch RPi LCD (A) 480×320 SPI TFT Resistive SPI × × × × × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT Resistive SPI × × × × × ×
4inch RPi LCD (A) 480×320 SPI TFT Resistive SPI × × × × × ×
DPI DISPLAYS
PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C × × × ×
3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C × × × × ×
4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C × × × ×
5inch DPI LCD 800×480 DPI IPS 160° × × × × × ×
7inch DPI LCD 1024×600 DPI IPS 170° × × × × × ×
DSI DISPLAYS
PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only.
2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C × × × ×
3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C × × × ×
4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C × × × ×
4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C × × × ×
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C × × × × ×
4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C × × × × ×
4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C × × × × ×
5inch DSI LCD 800×480 DSI TFT Capacitive I2C × × × × ×
5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C × × × × ×
5inch DSI LCD (C) 1024×600 DSI IPS 178° Capacitive I2C × × × × ×
7inch DSI LCD 800×480 DSI TFT Capacitive I2C × × × × ×
7inch DSI LCD (with case A) 800×480 DSI TFT Capacitive I2C × × × × ×
7inch DSI LCD (with cam) 800×480 DSI TFT Capacitive I2C × × × × ×
7inch DSI LCD (with cam and case) 800×480 DSI TFT Capacitive I2C × × × × ×
7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C × × × × ×
7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C × × × × ×
7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C × × × × ×
7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C × × × × ×
7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C × × × × ×
8inch DSI LCD 800×480 DSI TFT Capacitive I2C × × × × ×
8inch DSI LCD (with cam) 800×480 DSI TFT Capacitive I2C × × × × ×
8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C × × × ×
10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C × × × ×
11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C × × × × ×
HDMI / TYPE-C DISPLAYS
PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: somewhat costly.
2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C × ×
3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × Display ONLY
3.4inch 800x800 LCD 800x800 HDMI IPS 170° Capacitive Type-C ×
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × × Display ONLY
3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × ×
4inch 720x720 LCD 720x720 HDMI IPS 170° Capacitive Type-C ×
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × × Display ONLY
4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C ×
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × ×
5DP-CAPLCD-H 1024×600 HDMI IPS 178° Capacitive Type-C × ×
5DP-CAPLCD-B 1024×600 HDMI IPS 178° Capacitive Type-C ×
5DP-CAPLCD-G 1024×600 HDMI IPS 178° Resistive Type-C × ×
5inch HDMI LCD 800×480 HDMI TFT Resistive SPI × × × × × ×
5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT Resistive SPI × × × × × ×
5inch HDMI LCD (B) 800×480 HDMI TFT Resistive USB × × × × ×
5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT Resistive USB × × × × ×
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT Resistive USB × × × ×
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT Capacitive USB × ×
5inch HDMI LCD (H) V4 800×480 HDMI TFT Capacitive USB × × × ×
5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB ×
5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB ×
5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB × × ×
5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB × ×
5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB × × ×
6.25inch 720x1560 LCD 720×1560 HDMI IPS 178° Capacitive Type-C ×
7EP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT Capacitive USB × × × × ×
7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT Capacitive USB × × × × ×
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × ×
7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × ×
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × ×
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB × ×
7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB × ×
7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB × ×
7.9inch Side Monitor 400×1280 HDMI IPS 170° × × × ×
7.9inch Touch Monitor 400×1280 HDMI IPS 170° Capacitive USB × ×
8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB ×
8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB
8inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C ×
8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C
8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × × Display ONLY
9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB × ×
9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C
9.7inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C ×
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × × Display ONLY
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB × × × ×
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB ×
10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT Capacitive USB × × × ×
10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB × ×
10.1EP-CAPLCD 1920×1200 HDMI IPS 178° Capacitive Type-C
10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB ×
10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB × ×
10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB
10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C
10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB
11.6inch 1768x828 LCD 1768×828 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × ×
11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB ×
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB
11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB × ×
11.9inch Side Monitor 320×1480 HDMI IPS 170° × × × ×
11.9inch Touch Monitor 320×1480 HDMI IPS 170° Capacitive USB × ×
12.3inch 1920x720 LCD 1920×720 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × ×
12.3inch HDMI LCD 1920×720 HDMI IPS 178° Capacitive USB
13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB × ×
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB ×
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB ×
13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C
14inch 2160x1440 LCD 2160×1440 HDMI/Type-C/DP IPS 178° Capacitive Type-C ×
15.6inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × ×
15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB × ×
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB ×
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB ×
15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB ×
15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C
18.5inch FHD LCD 1080×1920 HDMI/Type-C IPS 178° Capacitive Type-C ×
21.5inch FHD LCD 1080×1920 HDMI IPS 170° Capacitive Type-C ×
21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C ×

Have a look :
RPi LCD Comparing

Weight: 0.034 kg

Quick Overview

  • 2.8inch DPI LCD x1
