- Description
- Package Content
Details
10.1inch, IPS, 1280x800, Capacitive Touch Screen LCD with Toughened Glass Cover, Supports Multi mini-PCs, Multi Systems
Features
- 10.1inch IPS screen,1280x800 high resolution
- Toughened glass capacitive touch panel, 6H hardness
- Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers
- When works with Raspberry Pi, supports Raspbian, Ubuntu, WIN10 IOT, single touch, and driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
- Play videos via USB flash drive, supported formats include MP4, AVI, RMVB, etc.
- Dual HDMI ports, one-key switching without frequent plugging
- Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
- Controlled via infrared remote controller OR onboard buttons
- 3.5mm audio jack, supports HDMI audio output
- Embedded ferrite Hi-Fi speaker
- Also supports VGA input (specific cable is required and should be purchased separately)
- 100x100mm spacing mounting holes (M4 screw hole) for general wall mount
- Comes with 45° tilt angle stand
Using with Game Consoles
Part Number | Microsoft XBOX | Sony PS4 | Nintendo Switch | |||
---|---|---|---|---|---|---|
Display | Sound | Display | Sound | Display | Sound | |
3.5inch HDMI LCD | √ | √ | √ | √ | √ | √ |
4.3inch HDMI LCD (B) | √ | √ | √ | √ | √ | √ |
5inch HDMI LCD (G) | √ | √ | √ | √ | √ | √ |
5inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
7inch HDMI LCD | √ | × | √ | × | √ | × |
7inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
10.1inch HDMI LCD | √ | × | √ | × | √ | × |
10.1inch HDMI LCD (B) | × | × | × | × | √ | × |
10.1inch HDMI LCD (H) | √ | √ | × | × | √ | √ |
11.6inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
13.3inch HDMI LCD (H) V2 | √ | √ | √ | √ | √ | √ |
15.6inch HDMI LCD (H) | √ | √ | √ | √ | √ | √ |
Note:
- Limited by the game console OS, the touch function is unavailable.
- Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

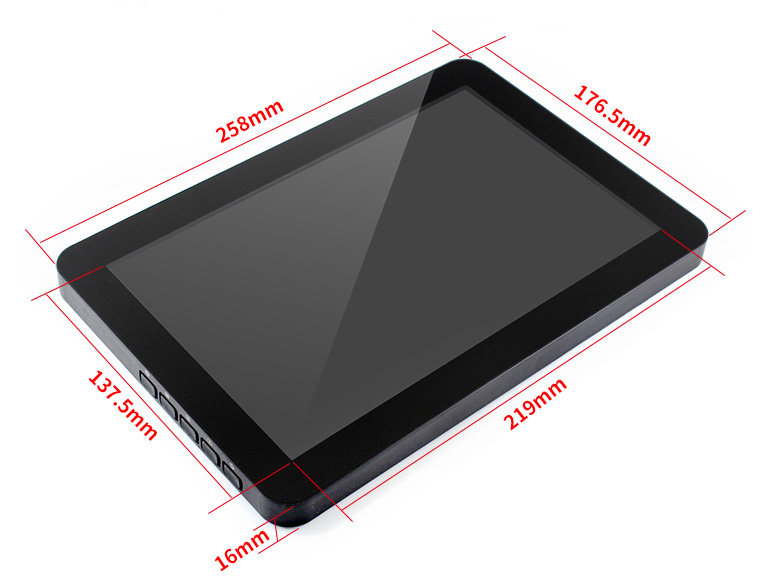

External Dimension
Development Resources
Wiki : www.waveshare.com/wiki/10.1inch_HDMI_LCD_(D)_(with_case)
Selection Guide
PartNumber | Display | Touch | Audio | Device Support | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Resolu-tion | Display Port | Display Panel | View Angle | Touch Type | Touch Port | Toughened Glass Panel | Optical Bonding | Spe- aker | Signal Output | Pi | JETSON NANO | PC | |
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system. |
|||||||||||||
2.8inch RPi LCD (A) | 320×240 | SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
3.2inch RPi LCD (B) | 320×240 | SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
3.5inch RPi LCD (A) | 480×320 | SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
3.5inch RPi LCD (B) | 480×320 | SPI | IPS | 160° | Resistive | SPI | × | × | × | × | √ | × | × |
3.5inch RPi LCD (C) | 480×320 | High-Speed SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
4inch RPi LCD (A) | 480×320 | SPI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO. |
|||||||||||||
2.8inch DPI LCD | 480×640 | DPI | IPS | 160° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
3.5inch DPI LCD | 640×480 | DPI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
4inch DPI LCD (C) | 720×720 | DPI | IPS | 170° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
5inch DPI LCD | 800×480 | DPI | IPS | 160° | – | – | × | × | × | × | √ | × | × |
7inch DPI LCD | 1024×600 | DPI | IPS | 170° | – | – | × | × | × | × | √ | × | × |
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only. |
|||||||||||||
2.8inch DSI LCD | 480×640 | DSI | IPS | 160° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
3.4inch DSI LCD (C) | 800×800 | DSI | IPS | 170° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
4inch DSI LCD | 480×800 | DSI | IPS | 170° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
4inch DSI LCD (C) | 720×720 | DSI | IPS | 170° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
4.3inch DSI LCD | 800×480 | DSI | IPS | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
4.3inch DSI LCD (with case) | 800×480 | DSI | IPS | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
4.3inch DSI QLED | 800×480 | DSI | IPS(QLED) | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
5inch DSI LCD | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
5inch DSI LCD (B) | 800×480 | DSI | IPS | 160° | Capacitive | I2C | √ | × | × | × | √ | × | × |
5inch DSI LCD (C) | 1024×600 | DSI | IPS | 178° | Capacitive | I2C | √ | × | × | × | √ | × | × |
5inch DSI LCD (D) | 720×1280 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
6.25inch DSI LCD | 720×1560 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
7inch DSI LCD | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (with case A) | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (with cam) | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (with cam and case) | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (B) | 800×480 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (B) (with case A) | 800×480 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (C) | 1024×600 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (C) (with case A) | 1024×600 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
7inch DSI LCD (E) | 1280×800 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
7.9inch DSI LCD | 400×1280 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
8inch DSI LCD | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
8inch DSI LCD (with cam) | 800×480 | DSI | TFT | – | Capacitive | I2C | √ | × | × | × | √ | × | × |
8inch DSI LCD (C) | 1280×800 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
8.8inch DSI LCD | 480×1920 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
10.1inch DSI LCD (C) | 1280×800 | DSI | IPS | 178° | Capacitive | I2C | √ | √ | × | × | √ | × | × |
11.9inch DSI LCD | 320×1480 | DSI | IPS | 170° | Capacitive | I2C | √ | × | × | × | √ | × | × |
13.3inch DSI LCD | 1920×1080 | DSI | IPS | 178° | Capacitive | I2C | √ | × | × | × | √ | × | × |
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly. |
|||||||||||||
2.8inch HDMI LCD (H) | 480×640 | HDMI | IPS | 160° | Capacitive | USB-C / I2C | √ | √ | × | × | √ | √ | √ |
3.2inch HDMI LCD (H) | 480×800 | HDMI | IPS | 160° | × | × | × | × | × | × | √ | √ | Display ONLY |
3.4inch 800x800 LCD | 800x800 | HDMI | IPS | 170° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
3.5inch HDMI LCD | 480×320 | HDMI | IPS | 160° | Resistive | SPI | × | × | × | √ | √ | × | Display ONLY |
3.5inch 480x800 LCD | 480×800 | HDMI | IPS | 170° | Capacitive | USB-C | × | × | × | × | √ | √ | √ |
4inch 720x720 LCD | 720x720 | HDMI | IPS | 170° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
4inch HDMI LCD | 480×800 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | × | √ | × | Display ONLY |
4inch HDMI LCD (C) | 720×720 | HDMI | IPS | 170° | Capacitive | USB-C / I2C | √ | √ | × | √ | √ | √ | √ |
4inch HDMI LCD (H) | 480×800 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | √ | √ | × | Display ONLY |
4.3inch HDMI LCD (B) | 800×480 | HDMI | IPS | 160° | Capacitive | USB | × | × | × | √ | √ | √ | √ |
5DP-CAPLCD-H | 1024×600 | HDMI | IPS | 178° | Capacitive | Type-C | √ | × | × | √ | √ | √ | √ |
5DP-CAPLCD-B | 1024×600 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
5DP-CAPLCD-G | 1024×600 | HDMI | IPS | 178° | Resistive | Type-C | √ | × | × | √ | √ | √ | √ |
5inch HDMI LCD | 800×480 | HDMI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
5inch HDMI LCD (with bicolor case) | 800×480 | HDMI | TFT | – | Resistive | SPI | × | × | × | × | √ | × | × |
5inch HDMI LCD (B) | 800×480 | HDMI | TFT | – | Resistive | USB | × | × | × | × | √ | × | √ |
5inch HDMI LCD (B) (with bicolor case) | 800×480 | HDMI | TFT | – | Resistive | USB | × | × | × | × | √ | × | √ |
5inch HDMI LCD (G) | 800×480 | HDMI/VGA | TFT | – | Resistive | USB | × | × | × | √ | √ | × | √ |
5inch HDMI LCD (H) | 800×480 | HDMI/VGA | TFT | – | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
5inch HDMI LCD (H) V4 | 800×480 | HDMI | TFT | – | Capacitive | USB | √ | × | × | × | √ | × | √ |
5inch HDMI AMOLED | 960×544 | HDMI | AMOLED | 170° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
5inch 1080x1080 LCD | 1080×1080 | HDMI | IPS | 160° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
5inch 720x1280 LCD | 720×1280 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | × | √ | √ | √ |
5.5inch HDMI AMOLED | 1080×1920 | HDMI | AMOLED | 170° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
5.5inch HDMI AMOLED (with case A) | 1080×1920 | HDMI | AMOLED | 170° | Capacitive | USB | √ | √ | × | √ | √ | × | × |
5.5inch 1440x2560 LCD | 1440×2560 | HDMI | IPS | 170° | Capacitive | USB | √ | √ | × | √ | √ | × | √ |
5.5inch 1440x2560 LCD (with case A) | 1440×2560 | HDMI | IPS | 170° | Capacitive | USB | √ | √ | × | √ | √ | × | × |
6.25inch 720x1560 LCD | 720×1560 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | × | √ | √ | √ |
7EP-CAPLCD | 1280×800 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
7EP-CAPLCD Monitor | 1280×800 | HDMI/Type-C | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
7inch HDMI LCD | 1024×600 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | × | √ | × | Display ONLY |
7inch HDMI LCD (B) | 800×480 | HDMI | TFT | – | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (B) (with bicolor case) | 800×480 | HDMI | TFT | – | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (C) | 1024×600 | HDMI | IPS | 170° | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (C) (with bicolor case) | 1024×600 | HDMI | IPS | 170° | Capacitive | USB | × | × | × | × | √ | × | √ |
7inch HDMI LCD (H) | 1024×600 | HDMI/VGA | IPS | 170° | Capacitive | USB | × | × | × | √ | √ | √ | √ |
7inch HDMI LCD (H) (with case) | 1024×600 | HDMI/VGA | IPS | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
7HP-CAPQLED | 1024×600 | HDMI | IPS (QLED) | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
7.9inch HDMI LCD | 400×1280 | HDMI | IPS | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
7.9inch Side Monitor | 400×1280 | HDMI | IPS | 170° | × | × | √ | × | √ | × | √ | √ | √ |
7.9inch Touch Monitor | 400×1280 | HDMI | IPS | 170° | Capacitive | USB | √ | × | √ | × | √ | √ | √ |
8DP-CAPLCD | 1280×800 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
8HP-CAPLCD Monitor | 1280×800 | HDMI/Type-C | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
8inch 768x1024 LCD | 768×1024 | HDMI | IPS | 178° | Capacitive | Type-C | √ | × | √ | √ | √ | √ | √ |
8inch 1536x2048 LCD | 1536×2048 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
8.8inch Side Monitor | 480×1920 | HDMI | IPS | 170° | × | × | × | × | √ | × | √ | √ | Display ONLY |
9HP-CAPQLED-B | 1280×720 | HDMI | IPS (QLED) | 178° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
9.3inch 1600x600 LCD | 1600×600 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
9.7inch 768x1024 LCD | 768×1024 | HDMI | IPS | 178° | Capacitive | Type-C | √ | × | √ | √ | √ | √ | √ |
10.1inch HDMI LCD | 1024×600 | HDMI | IPS | 170° | Resistive | SPI | × | × | × | × | √ | × | Display ONLY |
10.1inch HDMI LCD (B) (with case) | 1280×800 | HDMI | IPS | 170° | Capacitive | USB | √ | × | × | × | √ | × | √ |
10.1inch HDMI LCD (E) | 1024×600 | HDMI | IPS | 170° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
10.1inch HDMI LCD (G) (with case) | 1920×1200 | HDMI | IPS | 160° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
10.1inch HDMI LCD (H) (with case) | 1024×600 | HDMI/VGA | TFT | – | Capacitive | USB | × | × | × | × | √ | √ | √ |
10.1inch HDMI LCD (F) (with case) | 1024×600 | HDMI/VGA | IPS | 170° | Capacitive | USB | √ | × | √ | × | √ | √ | √ |
10.1EP-CAPLCD | 1920×1200 | HDMI | IPS | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
10.1DP-CAPLCD | 1280×800 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
10.1HP-CAPQLED | 1280×720 | HDMI | IPS (QLED) | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
10.1HP-CAPLCD Monitor | 1280×800 | HDMI/Type-C | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
10.4HP-CAPQLED | 1600×720 | HDMI | IPS(QLED) | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
10.5inch HDMI AMOLED | 2560×1600 | HDMI | AMOLED | 160° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
11.6inch 1768x828 LCD | 1768×828 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C | In-Cell | × | × | √ | √ | √ | √ |
11.6inch HDMI LCD (H) | 1920×1080 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
11.6inch HDMI LCD (H) (with case) | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
11.9inch HDMI LCD | 320×1480 | HDMI | IPS | 170° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
11.9inch Side Monitor | 320×1480 | HDMI | IPS | 170° | × | × | √ | × | √ | × | √ | √ | √ |
11.9inch Touch Monitor | 320×1480 | HDMI | IPS | 170° | Capacitive | USB | √ | × | √ | × | √ | √ | √ |
12.3inch 1920x720 LCD | 1920×720 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C | In-Cell | × | × | √ | √ | √ | √ |
12.3inch HDMI LCD | 1920×720 | HDMI | IPS | 178° | Capacitive | USB | √ | √ | √ | √ | √ | √ | √ |
13.3inch HDMI LCD (H) | 1920×1080 | HDMI | IPS | 178° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
13.3inch HDMI LCD (H) (with case) | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | × | √ | √ | √ | √ | √ |
13.3inch HDMI LCD (H) (with case) V2 | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | × | √ | √ | √ | √ | √ |
13.3inch QHD AMOLED | 2560×1440 | HDMI/Type-C | AMOLED | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
14inch 2160x1440 LCD | 2160×1440 | HDMI/Type-C/DP | IPS | 178° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
15.6inch FHD Monitor (C) | 1920×1080 | mini HDMI/Type-C | IPS | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
15.6inch Dual Monitor | 1920×1080 | HDMI/Type-C | IPS | 178° | × | × | × | × | √ | √ | √ | √ | √ |
15.6inch HDMI LCD | 1920×1080 | HDMI | IPS | 178° | Capacitive | USB | √ | × | × | √ | √ | √ | √ |
15.6inch HDMI LCD (H) (with case) | 1920×1080 | HDMI/VGA | IPS | 178° | Capacitive | USB | √ | × | √ | √ | √ | √ | √ |
15.6inch FHD Monitor | 1920×1080 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C / USB | √ | × | √ | √ | √ | √ | √ |
15.6HP-CAPQLED | 1920×1080 | HDMI | IPS(QLED) | 178° | Capacitive | USB | √ | √ | × | √ | √ | √ | √ |
15.6inch QLED Monitor | 1920×1080 | HDMI | IPS(QLED) | 178° | Capacitive | Type-C | √ | √ | √ | √ | √ | √ | √ |
18.5inch FHD LCD | 1080×1920 | HDMI/Type-C | IPS | 178° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
21.5inch FHD LCD | 1080×1920 | HDMI | IPS | 170° | Capacitive | Type-C | √ | √ | × | √ | √ | √ | √ |
21.5inch FHD Monitor | 1080×1920 | HDMI | IPS | 170° | Capacitive | Type-C | √ | √ | √ | × | √ | √ | √ |
Have a look :
Weight: 0.849 kg
