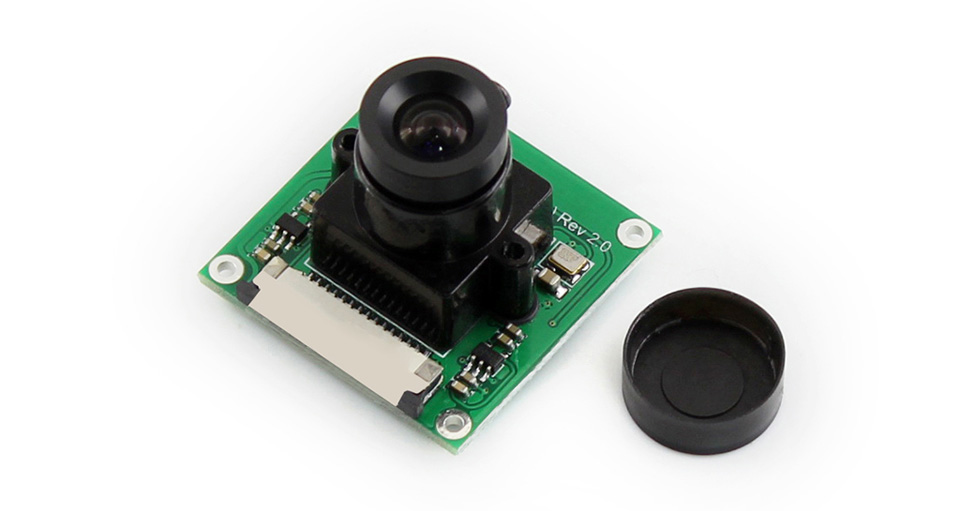

RPi Camera (B) for Raspberry Pi, OV5647, 5MP, Adjustable Focus
Raspberry Pi Camera (B)
5MP | Manual-Focus
Compatible with Raspberry Pi series boards

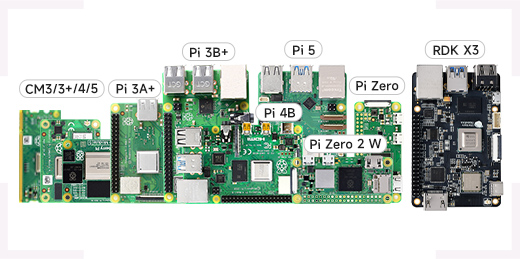

Device Support
Raspberry Pi series
Supports Raspberry Pi 5 / 4B / 3B+ / 3A+ / Zero / Zero 2W
CM 3 / 3+ / 4 / 5 (extra adapter board required)
CM 3 / 3+ / 4 / 5 (extra adapter board required)
Supports RDK X3 series
Supports ubuntu, extra CSI adapter board required
Specifications
| Sensor | OV5647 | CMOS size | 1/4 inch |
|---|---|---|---|
| PIXELS | 5MP | APERTURE | F2.0 |
| FOCAL LENGTH | 6mm | FIELD OF VIEW | 60.6° |
| Infrared night vision | Not supported | FOCUSING | Manual-Focus |

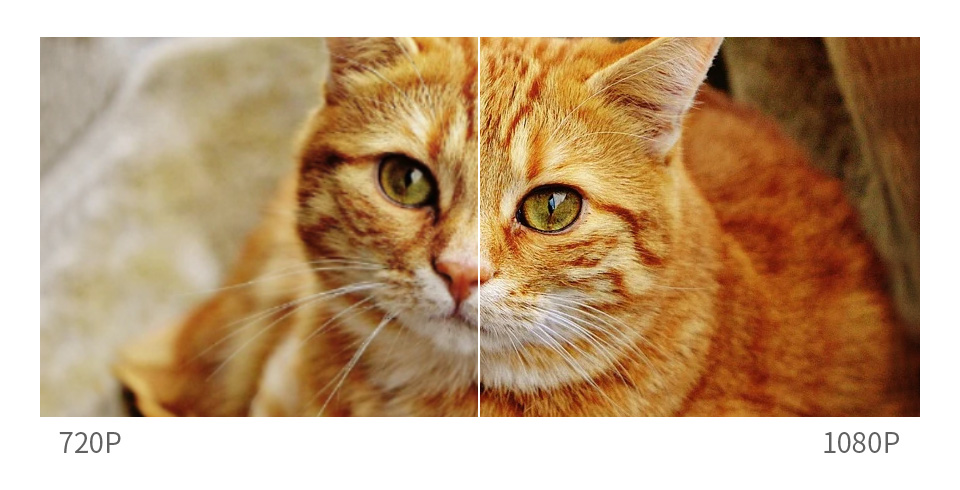

more clear 1080P HD video recording

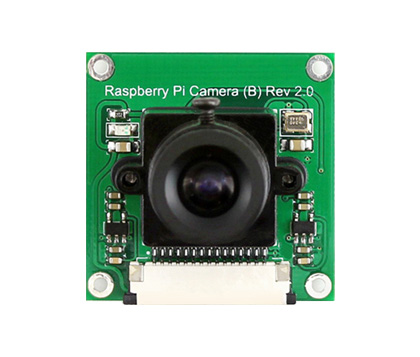

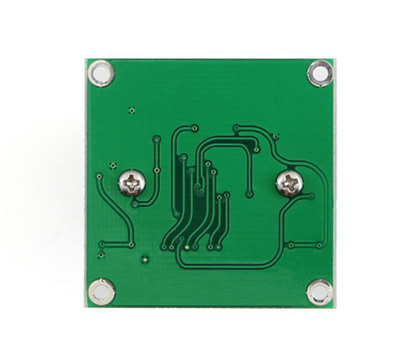

Concise Interface Design

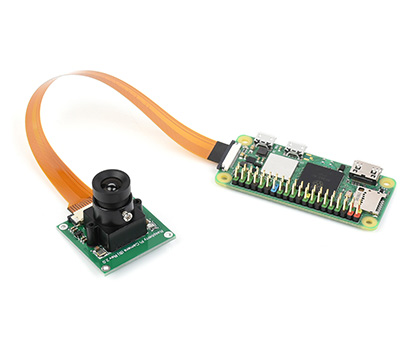

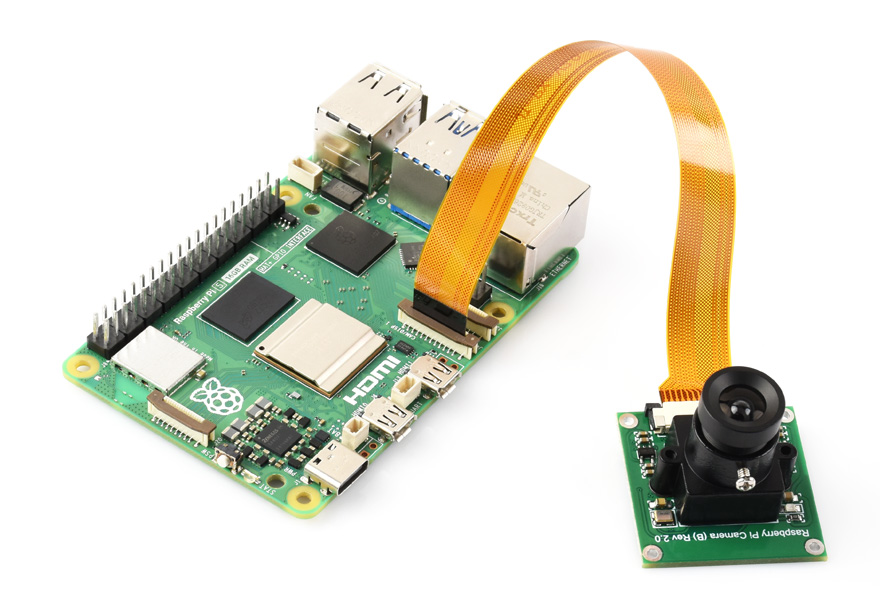

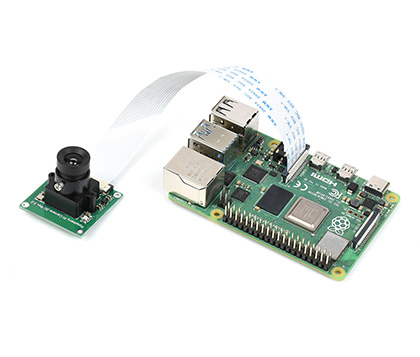

Working with Raspberry Pi
direct connect to Raspberry Pi different variants including 5/4B/3B+/3A+/3B/2B/B+/A+, and Raspberry Pi Zero / Zero 2 W series
* for reference only, the
Raspberry Pi 5,
Raspberry Pi 4B, and
Raspberry Pi Zero 2W
are NOT included, please purchase separately.
outline dimensions
OV5647 5MP Camera Selection Guide
| Partnumber | IR filter | Aperture | Focal Length (mm) | Angle of View (diagonal) | Dimensions (mm) | Features |
|---|---|---|---|---|---|---|
| RPi Camera (B) | integrated | 2 | 6 | 60.6° | 32×32 | - |
| RPi Camera (E) | N/A | 2.8 | 3.21 | 69.8° | 25×24 | - |
| RPi Camera (F) | N/A | 2 | 3.6 | 50° | 25×24 | - |
| RPi Camera (G) | integrated | 2.35 | 3.15 | 160° | 25×24 | - |
| RPi Camera (H) | N/A | 2.35 | 3.15 | 160° | 25×24 | - |
| RPi Camera (I) | integrated | 2 | 1.55 | 185° | 32×32 | - |
| RPi Camera (M) | integrated | 2 | 0.87 | 200° | 25×24 | - |
| RPi IR-CUT Camera | integrated | 2 | 3.6 | 50° | 31×32 | IR-CUT |
| RPi IR-CUT Camera (B) | integrated | 1.6 | 8 | 42° | 31×32 | IR-CUT |
| RPi Zero V1.3 Camera | integrated | 2.8 | 3.21 | 69.8° | 60×11.5 | for Zero Series |
| RPi FPC Camera | integrated | 2.8 | 3.21 | 69.8° | 300×16 | mini size |
| RPi FPC Camera (B) | integrated | 2.4 | 3.89 | 72.9° | 35×16 | mini size |
| OV5647-70 5MP OIS Camera | N/A | 2.8 | 3.2 | 70° | 19×19 | Optical Image Stabilization |
- Unless otherwise specified, cameras on the table are compatible with Raspberry Pi, CM3/3+/4, please refer to the detail product page for more information.
- Normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, and that is the reason why they can capture image in the night by using IR fill light.
If you're looking for cameras that can capture image in correct color in both day and night, please choose RPi IR-CUT Camera and RPi IR-CUT Camera (B).
Weight: 0.016 kg
Quick Overview
* the included FFC is 16cm, if you need a longer cable, please purchase separately.
- RPi Camera (B) x1
- 15PIN FFC (opposite sides contact) x1
- RPi Zero V1.3 Camera Cable ~15cm x1
