RPi Camera (M), Fisheye Lens

SKU: 14037
Part Number: RPi Camera (M)
Brand: Waveshare

$29.99
$28.992+
$28.493+
$28.294+

Related Products:

Description

Details

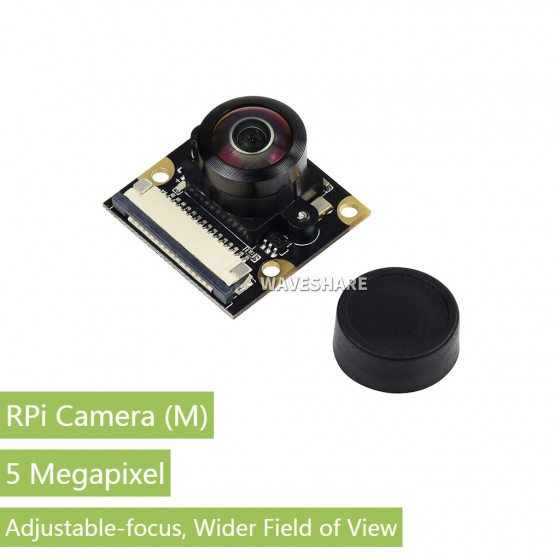

Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View

Features

  • Raspberry Pi Camera, supports all revisions of the Pi
  • Fisheye Lens, offers wider field of view
  • 5 megapixel OV5647 sensor
  • Adjustable focus distance
  • Camera specifications
    • CCD size : 1/4inch
    • Aperture (F) : 2
    • Focal Length : 0.87mm
    • Angle of View (diagonal) : 200 degree (while other normal cameras are typically 72 degree)
    • Sensor best resolution : 1080p
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
    • Supports connecting fill flash LED
  • 2592 × 1944 still picture resolution
  • Support 1080p30, 720p60 and 640x480p60/90 video record
  • Dimension: 25mm x 24mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Camera_(M)

OV5647 5MP Camera Selection Guide

PartnumberIR filterApertureFocal Length (mm)Adjustable Focus DistanceAngle of View (diagonal)Dimensions (mm)
RPi Camera (B) integrated 2 6 60.6° 32×32
RPi Camera (E) N/A 2.8 3.21 - 69.8° 25×24
RPi Camera (F) N/A 2 3.6 50° 25×24
RPi Camera (G) integrated 2.35 3.15 160° 25×24
RPi Camera (H) N/A 2.35 3.15 160° 25×24
RPi Camera (I) integrated 2 1.55 185° 32×32
RPi Camera (M) integrated 2 0.87 200° 25×24
RPi IR-CUT Camera N/A 2 3.6 50° 31×32
RPi IR-CUT Camera (B) N/A 1.4 8 40° 31×32
RPi Zero V1.3 Camera integrated 2.8 3.21 - 69.8° 60×11.5
RPi FPC Camera integrated 2.8 3.21 - 69.8° 300×16
RPi FPC Camera (B) N/A 2.4 3.89 - 72.9° 35×16×5
  • Unless otherwise specified, cameras on the table are compatible with Raspberry Pi, CM3/3+/4, please refer to the detail product page for more information.
  • Normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, and that is the reason why they can capture image in the night by using IR fill light.
    If you're looking for cameras that can capture image in correct color in both day and night, please choose RPi IR-CUT Camera and RPi IR-CUT Camera (B).

Weight: 0.017 kg

Quick Overview

The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

  1. RPi Camera (M) x1
  2. 15-pin FFC (opposite sides contact) x1
1
2
