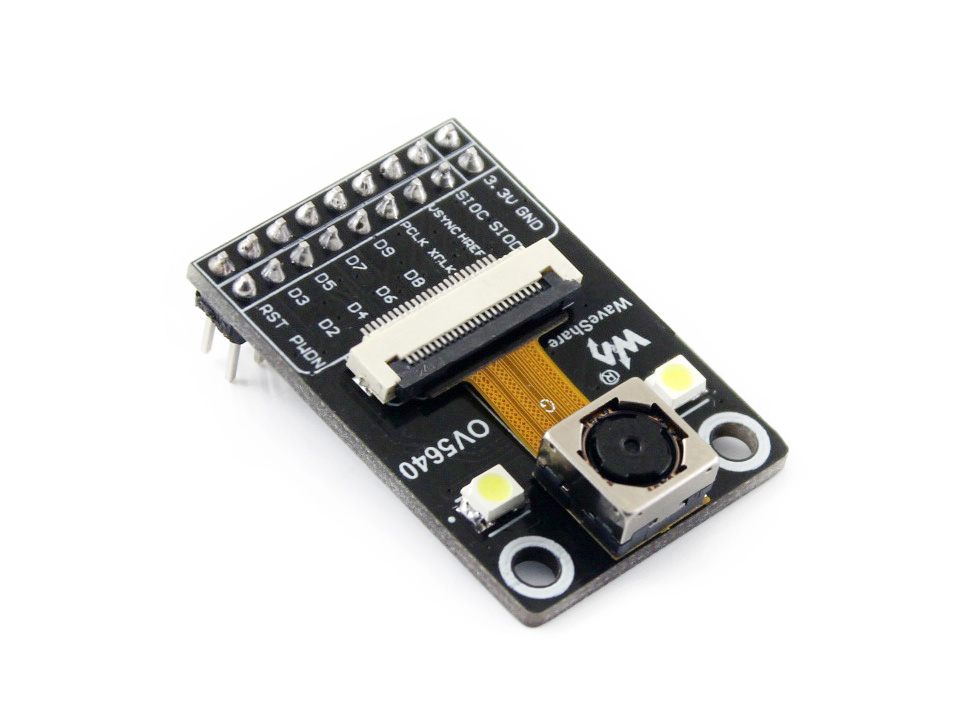

OV5640 Camera Board (C), 5 Megapixel (2592x1944), Auto Focusing, Onboard Flash

SKU: 13802
Part Number: OV5640 Camera Board (C)
Brand: Waveshare
UPC: 614961951518

$25.99
$25.292+
$24.893+
$24.694+

Select Version:

Description

Details

Camera Module Based on OV5640 Image Sensor, 5 Megapixel (2592x1944), Auto Focusing with Onboard Flash LED

Features

  • Pixels: 5 megapixel
  • Resolution: 2592x1944
  • Auto focusing by detecting the object distance
  • Onboard flash LED, allowed to take pictures in the dark
  • Sensor: OV5640
    • 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
    • Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
    • Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
    • Supports image scaling, panning, windowing, etc.
  • Lens:
    • CCD size: 1/4inch
    • Aperture (F): 2.8
    • Focal Length: 3.37mm (adjustable)
    • Diagonal: 67.4 degree
  • Output Formats:
    • YUV(422/420)/YCbCr422
    • RGB565/555/444
    • CCIR656
    • RAW RGB
    • Compressed Data
  • Operating Voltage: 3.3V
  • Control Interface: SCCB (I2C compatible)
  • Data Interface: DVP 8-bit
  • Dimension: 35.70mm × 23.90mm

Dimensions

OV5640 Camera Board (C) dimensions

Development Resources

Wiki : www.waveshare.com/wiki/OV5640_Camera_Board_(C)

Selection Guide

Part Number Pixels Sensor Best Resolution Dimension (mm) Feature
OV5640 Camera Board (A) 5M OV5640 QSXGA  2592x1944 35.7x23.9 Cost effective
OV5640 Camera Board (B) 5M OV5640 QSXGA  2592x1944 35.7x23.9 Fisheye lens, 170 degree diagonal
OV5640 Camera Board (C) 5M OV5640 QSXGA  2592x1944 35.7x23.9 Auto focusing, onboard flash
OV2640 Camera Board 2M OV2640 UXGA 1622x1200 35.7x23.9 Lower price
OV9655 Camera Board 1.3M OV9655 SXGA 1280x1024 35.7x23.9 Lower price
OV7670 Camera Board (B) 0.3M OV7670 VGA 640x480 35.2x34.3 Cheap
Package Content

Weight: 0.006 kg

Quick Overview

  1. OV5640 Camera Board (C) x1
