Digital camera based on OV9655, 1.3 Megapixel
Overview

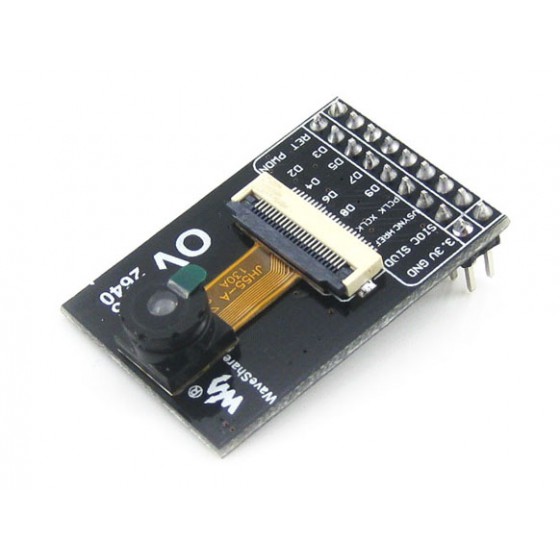

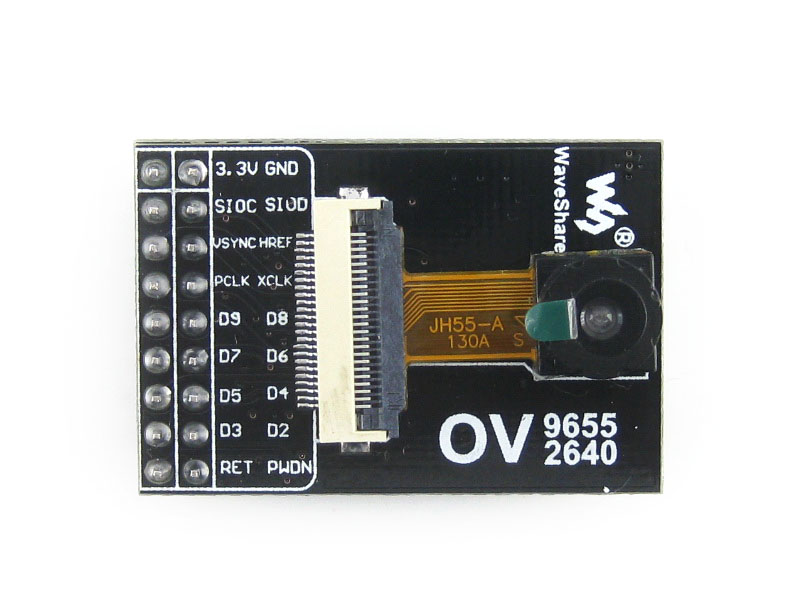

The OV9655 Camera Board is a simple digital camera based on OV9655.
The OV9655 Camera Board makes it possible to take photos and/or record video with your development board.
Features
OV9655, camera, control interface
Photos
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Wiki:
www.waveshare.com/wiki/OV9655_Camera_Board
Selection Guide
| Part Number | Pixels | Sensor | Best Resolution | Dimension (mm) | Feature |
|---|---|---|---|---|---|
| OV5640 Camera Board (A) | 5M | OV5640 | QSXGA 2592x1944 | 35.7x23.9 | Cost effective |
| OV5640 Camera Board (B) | 5M | OV5640 | QSXGA 2592x1944 | 35.7x23.9 | Fisheye lens, 170 degree diagonal |
| OV5640 Camera Board (C) | 5M | OV5640 | QSXGA 2592x1944 | 35.7x23.9 | Auto focusing, onboard flash |
| OV2640 Camera Board | 2M | OV2640 | UXGA 1622x1200 | 35.7x23.9 | Lower price |
| OV9655 Camera Board | 1.3M | OV9655 | SXGA 1280x1024 | 35.7x23.9 | Lower price |
| OV7670 Camera Board (B) | 0.3M | OV7670 | VGA 640x480 | 35.2x34.3 | Cheap |
Weight: 0.006 kg
Quick Overview
- OV9655 Camera Board × 1
