- Description
Details

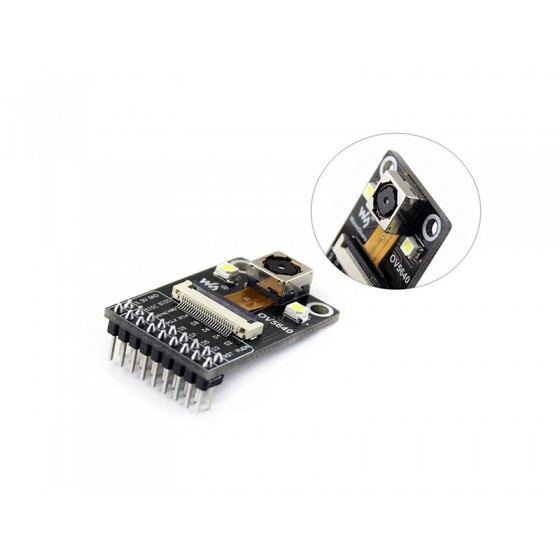

Camera Module Based on OV5640 Image Sensor, 5 Megapixel (2592x1944), Auto Focusing with Onboard Flash LED
Features
- Pixels: 5 megapixel
- Resolution: 2592x1944
- Auto focusing by detecting the object distance
- Onboard flash LED, allowed to take pictures in the dark
- Sensor: OV5640
- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
- Supports image scaling, panning, windowing, etc.
- Lens:
- CCD size: 1/4inch
- Aperture (F): 2.8
- Focal Length: 3.37mm (adjustable)
- Diagonal: 67.4 degree
- Output Formats:
- YUV(422/420)/YCbCr422
- RGB565/555/444
- CCIR656
- RAW RGB
- Compressed Data
- Operating Voltage: 3.3V
- Control Interface: SCCB (I2C compatible)
- Data Interface: DVP 8-bit
- Dimension: 35.70mm × 23.90mm
Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/OV5640_Camera_Board_(C)
Selection Guide
| Part Number | Pixels | Sensor | Best Resolution | Dimension (mm) | Feature |
|---|---|---|---|---|---|
| OV5640 Camera Board (A) | 5M | OV5640 | QSXGA 2592x1944 | 35.7x23.9 | Cost effective |
| OV5640 Camera Board (B) | 5M | OV5640 | QSXGA 2592x1944 | 35.7x23.9 | Fisheye lens, 170 degree diagonal |
| OV5640 Camera Board (C) | 5M | OV5640 | QSXGA 2592x1944 | 35.7x23.9 | Auto focusing, onboard flash |
| OV2640 Camera Board | 2M | OV2640 | UXGA 1622x1200 | 35.7x23.9 | Lower price |
| OV9655 Camera Board | 1.3M | OV9655 | SXGA 1280x1024 | 35.7x23.9 | Lower price |
| OV7670 Camera Board (B) | 0.3M | OV7670 | VGA 640x480 | 35.2x34.3 | Cheap |
Weight: 0.006 kg
Quick Overview
- OV5640 Camera Board (C) x1
