IMX378-190 12.3MP Fisheye Lens Camera Type B, 190° FOV, rolling shutter, compatible with Raspberry Pi series boards

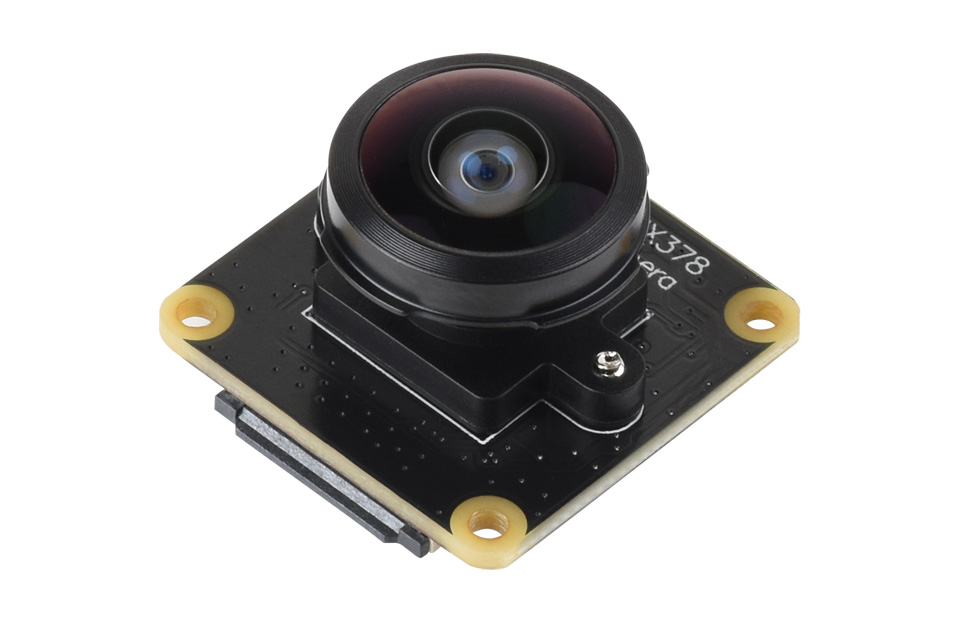

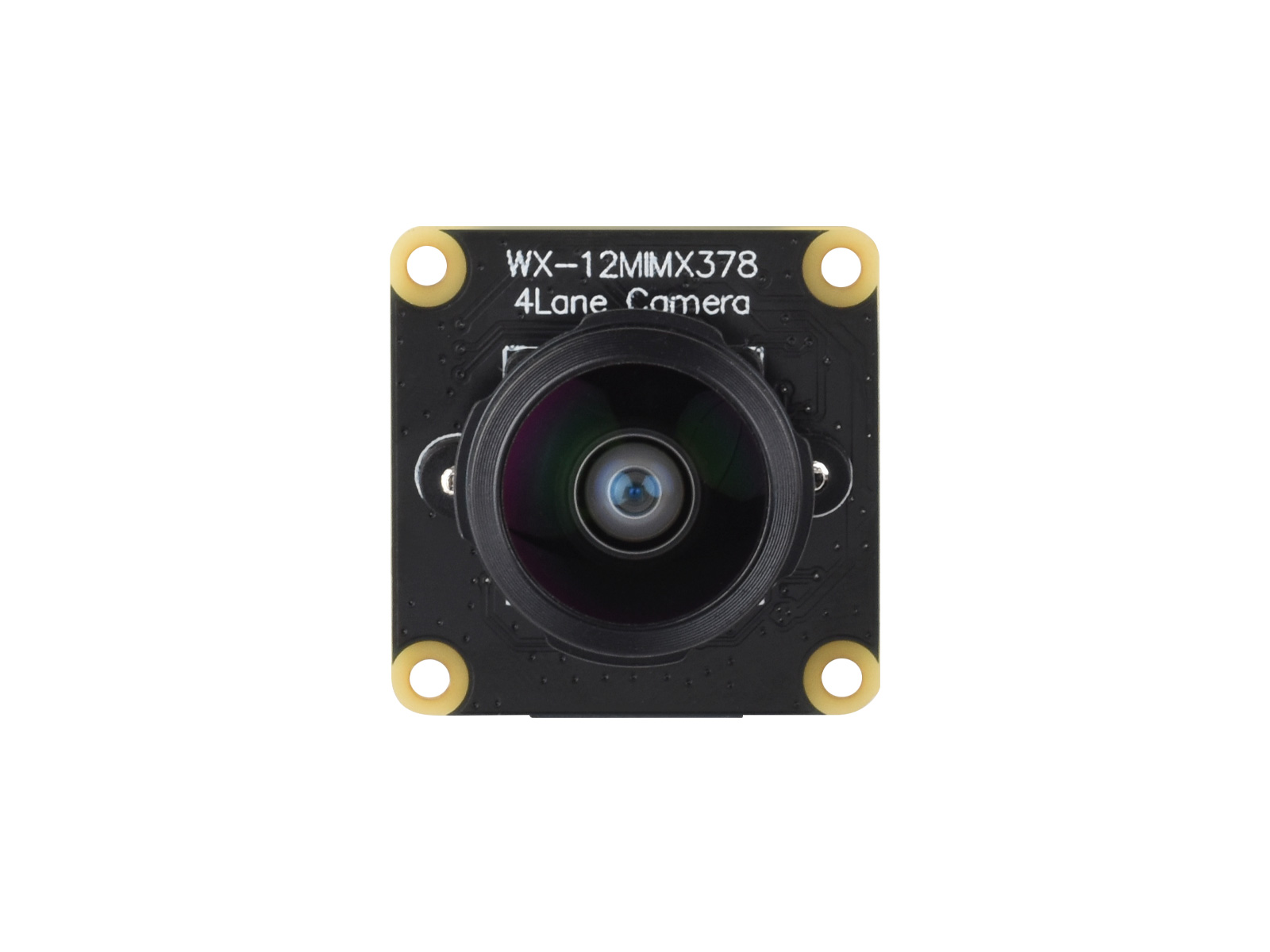

IMX378-190 Fisheye Lens Camera
12.3MP | Fisheye | 190° FOV
Compatible with Raspberry Pi series boards
Device & System Support
Raspberry Pi series
Supports Pi 5 / 4B / 3B+ / 3A+ / Zero / Zero 2 W
CM3 / 3+ / 4 / 5 (extra adapter board required)
Specifications
| Sensor | IMX378 | CMOS size | 1/2.3" |
|---|---|---|---|
| Camera type | color | Pixels | 12.3MP (4056 × 3040) |
| Shutter | Rolling Shutter | Aperture | F2.4 |
| Distortion | < 58% | Field of view | 190° |
| Focal length | 6.5mm | Focusing | Fixed-focus |
High definition, wide angle
12.3MP HD resolution for clearer imaging
190° wide angle fisheye lens, cover all in sight
Working with Raspberry Pi
Compatible with Raspberry Pi series, CM3 / 3+ / 4 / 5 series, and Zero series

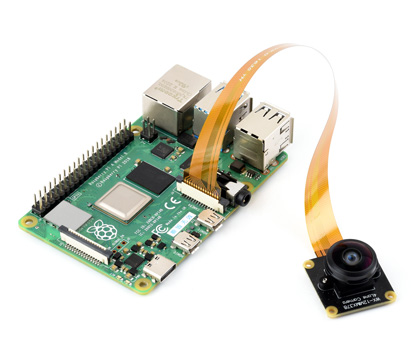

Connecting with Raspberry Pi 4

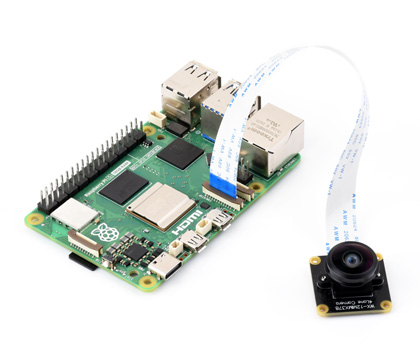

Connecting with Raspberry Pi 5

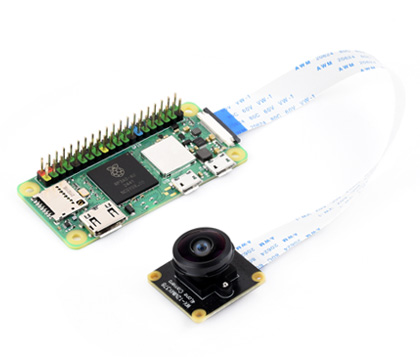

Connecting with Zero 2 W

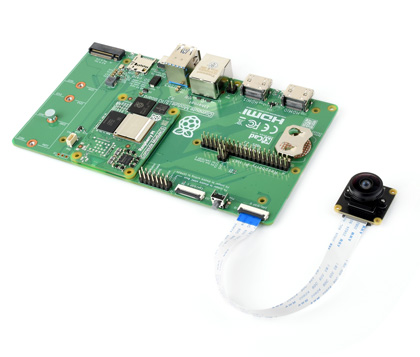

Connecting with CM5 IO Board
for reference only, please refer to the package content for detailed part list.

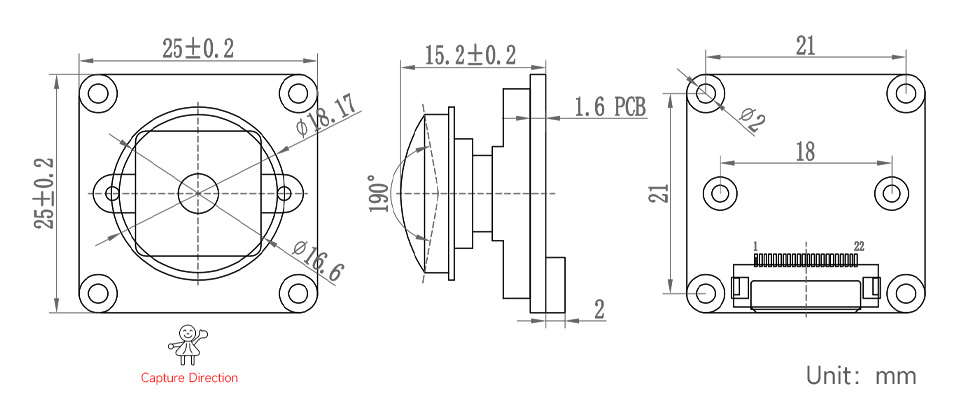

Outline dimensions
Weight: 0.013 kg
Quick Overview
- IMX378-190 12.3MP Camera (B) x1

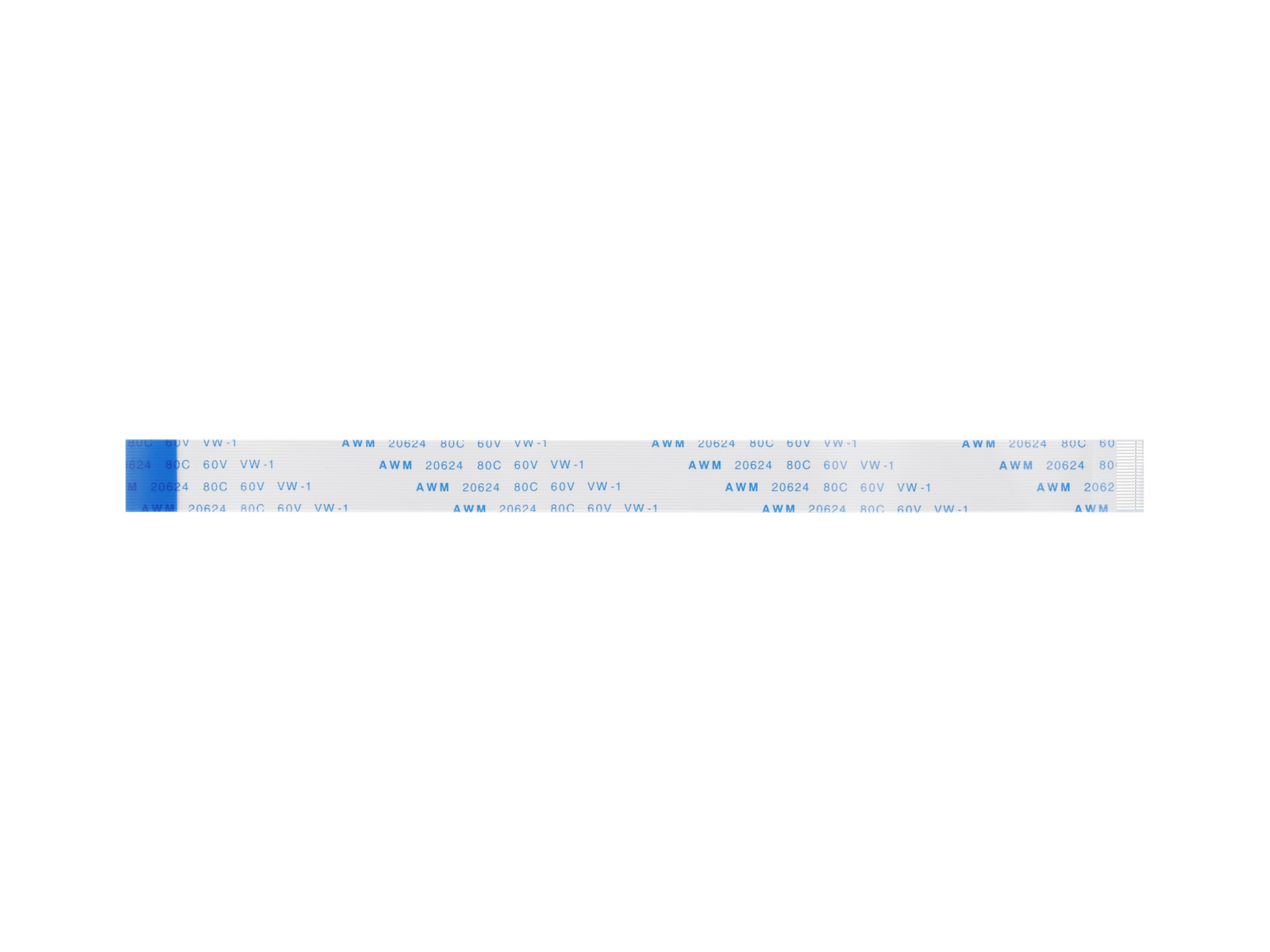

- 15PIN FFC 1.0mm pitch cable (opposite) ~160mm x1

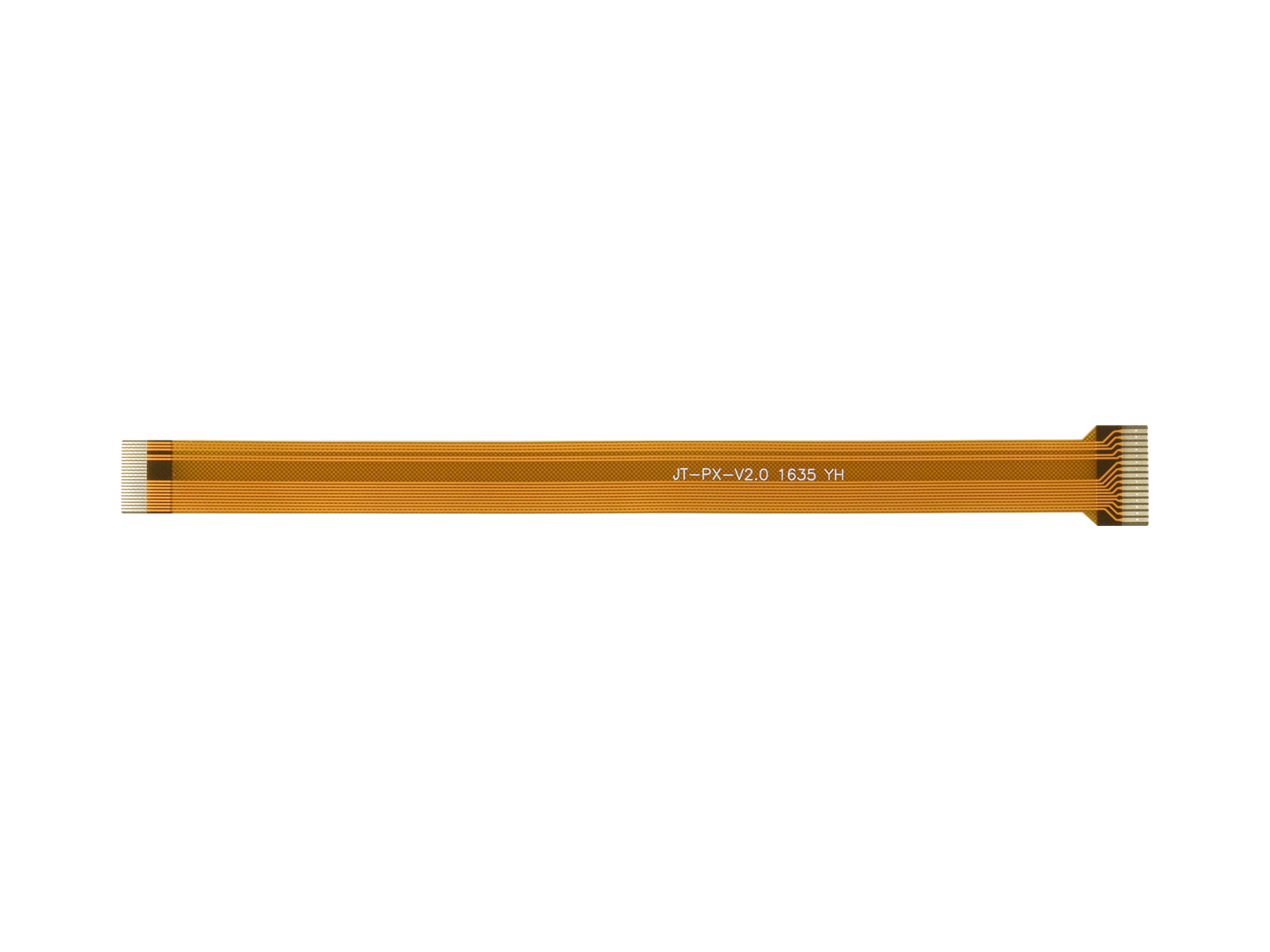

- FPC cable ~160mm x1
