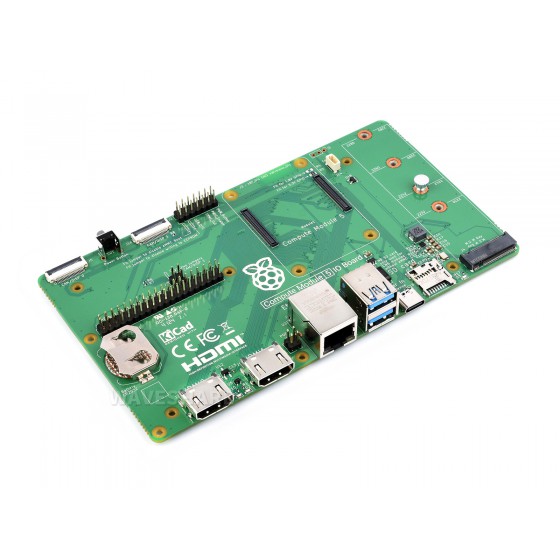

The Compute Module 5 IO Board is a companion board for Raspberry Pi Compute Module 5. It is designed for use both as a development system for Compute Module 5 and as an embedded board integrated into end products.
The IO board is designed to allow you to create systems quickly using off-the-shelf parts such as HATs and PCIe modules. The major user connectors are located along one side to make enclosures simple.
Compute Module 5 IO Board
the CM5 IO Board ONLY
Compute Module 5 IO Case
official CM5 IO Board case ONLY
(the IO Board is NOT included)
Compute Module 5 Development Kit
CM5 IO Board + official case + CM5104032
| Processor | Broadcom BCM2712 quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz |
|---|---|
| Memory | 2GB, 4GB, 8GB or 16GB LPDDR4-4267 SDRAM (depending on variant) |
| Storage | 0GB (Lite), 8GB, 16GB, 32GB or 64GB eMMC Flash (depending on variant), up to 200 Mbps data rate |
| Connectivity | Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE, with onboard and external antenna options |
| Onboard Gigabit Ethernet PHY supporting IEEE1588 | |
| 1 × USB 2.0 interface | |
| 2 × USB 3.2 Gen1 interface | |
| 1 × PCIe Gen 2 x1 interface | |
| 28 GPIO signals | |
| SD card interface for SD card (for use only with Compute Module 5 variants without eMMC) | |
| Video | 2 × HDMI interface (up to 4Kp60 supported) |
| 2 × 4-lane MIPI interface | |
| Multimedia | 4Kp60 HEVC decoder |
| OpenGL ES 3.1 graphics, Vulkan 1.3 | |
| Input power | 5V DC |
| RTC | Built-in Real-time clock (RTC), powered from external battery |
| Operating voltage | -20°C ~ 85°C ambient |
| Dimensions | 55 × 40 × 4.7mm |
| CM5 socket | Suitable for all variants of Compute Module 5 |
|---|---|
| network | Gigabit Ethernet RJ45 port |
| Supports PoE function, onboard PoE header, an external PoE module (NOT included) is required | |
| Connectors | Raspberry Pi 40PIN GPIO header |
| M.2 M-Key PCIe socket, compatible with 2230, 2242, 2260 and 2280 form factors | |
| USB | 2 x USB3.2 Gen1 connectors 1 x Type-C port for updating Compute module 5 |
| MIPI | 2 x 4-lane MIPI DSI/CSI-2 connectors |
| Video | 2 x HDMI ports with 4K support |
| RTC | CR / ML2032 battery socket |
| Storage socket | MicroSD card socket for Compute Module 5 Lite (without eMMC) variants |
| Fan connector | 5V, JST-SH PWM 4PIN connector |
| Power input | 5V @5A via Type-C port, the same standard as the Raspberry Pi 5 |
| Dimensions | 160 × 90mm |
