Details

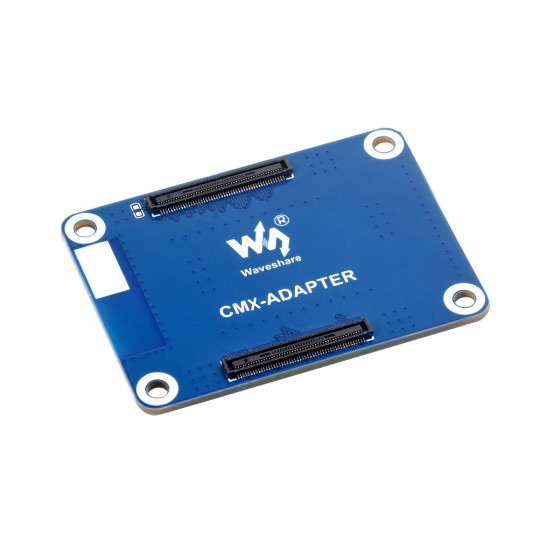

Interface Protection Adapter Board for Raspberry Pi Compute Module series, Provides Physical Protection for Frequent Plugging and Unplugging of CM4 / CM5 Socket
Interface Protection Adapter Board for Raspberry Pi CM4 / CM5
Based on Raspberry Pi CM4 / CM5
Onboard Standard CM4 / CM5 Connectors, Supports access to the Lite / EMMC series of CM4 / CM5 and connecting to corresponding baseboard or expansion board
Physical Protection for Frequent Plugging and Unplugging
Prevents damage to the CM4 / CM5 socket from frequent physical plugging and unplugging, suitable for applications that require frequent connections of CM4 / CM5
Connecting with Compute Module 4
Connecting with Compute Module 5
Connecting with Luckfox Core3566 Module
Easy to Install
Connecting the Compute Module 4 to Compute Module 4 IO Board via CMX-ADAPTER
Connecting the Luckfox Core3566 Module to Touch screen expansion board via CMX-ADAPTER
Interface Introduction
Outline dimensions
Weight: 0.05 kg
Quick Overview
CMX-ADAPTER x1
