Waveshare Orin NX Dual ETH Development Kit
Based on Jetson Orin NX module, with JETSON-ORIN-IO-BASE-B base board, providing rich peripheral interfaces such as M.2, DP, USB, dual ETH ports, etc., which is more convenient for users to realize the product performance.
This kit includes the Orin NX module with options for 8GB / 16GB versions, no built-in storage module, provides up to 70 TOPS / 100 TOPS AI performance, and up to 117 TOPS / 157 TOPS after upgrading to the SUPER version, comes with a 256GB NVMe Solid State Drive, high-speed reading/writing, meet the needs of large AI project development.
* for reference only, the actual appearance of the Solid State Drive may be different
This kit also comes with a pre-installed dual-band wireless network card that supports Bluetooth 5.0 and dual-band WIFI, with two additional PCB antennas, for providing high-speed and reliable wireless network connection and Bluetooth communication.
*please refer to the package content for detailed part list,
the NVMe Solid State Drive and wireless network card are NOT included in the JETSON-ORIN-NX-8G/16G-ETH-BASE-KIT
JETSON-ORIN-NX-ETH-BASE-KIT
Includes Jetson Orin NX module (options for 8GB/16GB), JETSON-ORIN-IO-BASE-B base board, and cooling fan. The 256GB NVMe Solid State Drive and wireless network card are NOT included in the kit.
JETSON-ORIN-NX-ETH-DEV-KIT
Includes Jetson Orin NX module (options for 8GB/16GB), JETSON-ORIN-IO-BASE-B base board, cooling fan, 256GB NVMe Solid State Drive, AW-CB375NF dual-band wireless network card, FFC cable, USB cable, USB expansion board, Network cable, power supply adapter, etc.
| Version | 8GB*** SUPER |
16GB*** SUPER |
|---|---|---|
| AI performance | 117 TOPS | 157 TOPS |
| GPU | 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores | |
| GPU Frequency | 1173MHz (Max) | |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3 |
| CPU Frequency | 2GHz (Max) | |
| DL accelerator | 1x N-VDLA v2 | 2x N-VDLA v2 |
| DLA Frequency | 1230MHz (Max) | |
| Vision Accelerator | 1x PVA v2 | |
| Memory | 8GB 128-bit LPDDR5, 102.4GB/s | 16GB 128-bit LPDDR5, 102.4GB/s |
| Storage | Supports external NVMe | |
| Power | 10W | 15W | 25W | 40W | |
| PCIe* | 1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint) | |
| USB* | 3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
|
| CSI Camera | Up to 4 cameras (8 via virtual channels**) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20 Gbps) |
|
| Video encode | 1x 4K60 (H.265) | 3x 4K30 (H.265) 6x 1080p60 (H.265) | 12x 1080p30 (H.265) |
|
| Video decode | 1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) 9x 1080p60 (H.265) | 18x 1080p30 (H.265) |
|
| Display | 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 | |
| Other | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | |
| Networking | 1x GbE | |
| Dimensions | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
|
| * USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations. ** Virtual Channels for Jetson Orin NX are subject to change Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features. *** Orin NX Module and Waveshare kit: supports upgrading to SUPER image, provides SUPER upgrade tutorial in the wiki (jetpack 6.2 can support upgrading SUPER version); |
||
4 × Type-A + 1 × Type-C + 2 × USB2.0 FFC connectors
Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission up to 10Gbps, Type-C port can be used for system burning, and Onboard 2 × USB 2.0 FFC connectors
Expands 2 × CSI camera interfaces for AI applications such as face recognition, road sign detection, Lane Line detection, and license plate recognition
* for reference only, please refer to the package content for detailed part list.
Expands 1 × RJ45 2.5G Ethernet port and 1 × RJ45 Gigabit Ethernet port
* for reference only, please refer to the package content for detailed part list.
Supports DP High-definition Port
* for reference only, please refer to the package content for detailed part list.
N-VIDIA Software
All N-VIDIA Jetson modules and developer kits are supported by the same N-VIDIA Jetson software stack, so you can develop once and deploy everywhere. Jetson software is designed to provide end-to-end acceleration for AI applications and accelerate the time to market. This brings the powerful N-VIDIA technologies that power data centers and cloud deployments to the edge.
Pretrained Models
Many AI applications have common needs: classification, object detection, language translation, text-to-speech, recommender engines, sentiment analysis, and more. Pretrained models from the NGC™ catalog are performance-optimized and ready to be fine-tuned with the N-VIDIA TAO Toolkit and customer datasets, reducing time and cost for production AI software development.
N-VIDIA software platforms including Isaac for robotics, Riva for AI speech, and Metropolis for video analytics, are available to speed vertical-specific applications
N-VIDIA Isaac
Robots improve efficiency and quality of life in industries such as manufacturing, logistics, healthcare, and service. N-VIDIA Isaac™ accelerates the process with enhanced robotics development, simulation, and deployment.
N-VIDIA Riva
N-VIDIA Riva is a fully accelerated SDK for building multimodal conversational AI applications using an end-to-end deep-learning pipeline, suitable for optimized skills in speech, vision, and natural language processing (NLP) tasks.
N-VIDIA Metropolis
N-VIDIA Metropolis includes an application framework, s set of developer tools, and the partner ecosystem. It brings visual data and AI together to improve operational efficiency and safety across a broad range of industries.
| Model | Module | Developer Kit |
|---|---|---|
|
Jetson AGX Orin 2048-core N-VIDIA Ampere architecture GPU with 64 Tensor Cores |
110×110×71.65mm Official Kit: 64GB |
|
|
Jetson Orin Nano 512/1024-core N-VIDIA Ampere architecture GPU with 16/32 Tensor Cores |
 Memory: 4GB / 8GB 69.6×45mm 260-pin SO-DIMM connector |
100×79×21mm Official Kit |
|
100×79×21mm Official Super Kit |
||
103×90.5×34mm Waveshare Kit: 4GB / 8GB |
||
103×90.5×34mm Waveshare Dual ETH Kit: 4GB / 8GB |
||
|
Jetson Orin NX 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
 Memory: 8GB / 16GB 69.6×45mm 260-pin SO-DIMM connector |
103×90.5×34mm Waveshare Kit: 8GB / 16GB |
|
103×90.5×34mm Waveshare Dual ETH Kit: 8GB / 16GB |
||
|
Note: some models haven't been released yet, please contact the Waveshare service team if you need them. |
||
Quick Overview

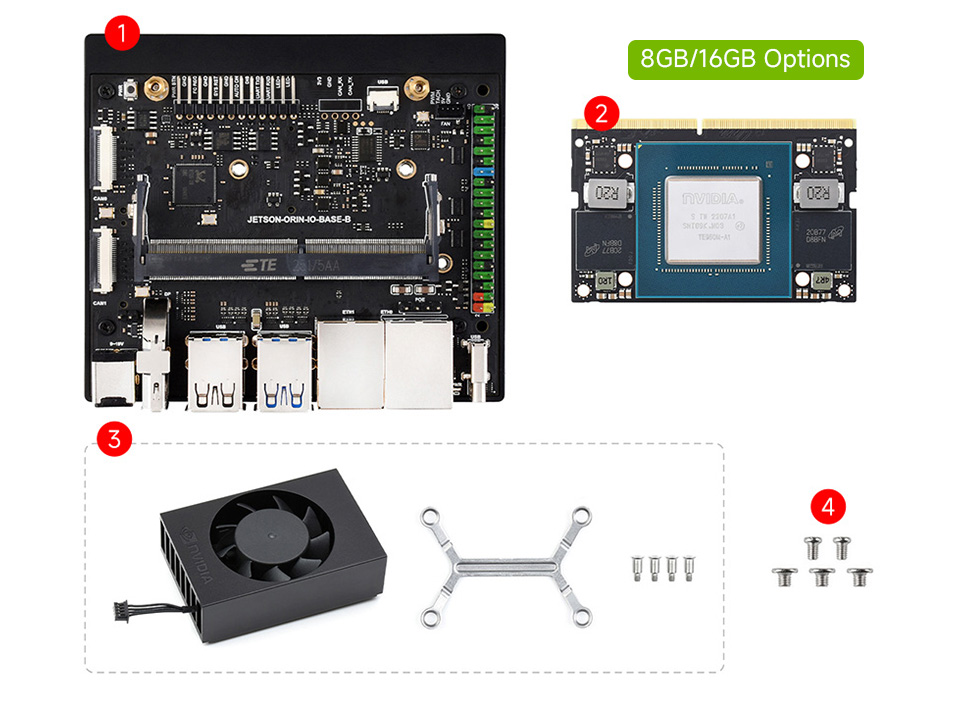

JETSON-ORIN-NX-ETH-BASE-KIT
- JETSON-ORIN-IO-BASE-B x1
- OPTIONS Jetson Orin NX module x1
- Cooling fan + accessories x1
- Screws pack x1
JETSON-ORIN-NX-ETH-DEV-KIT
-
Waveshare Orin ETH NX development kit:
OPTIONS Jetson Orin NX module x1
JETSON-ORIN-IO-BASE-B x1
Cooling fan x1
256GB NVMe Solid State Drive (assembled) x1
Wireless network card (assembled) x1 - 6PIN FFC cable ~10cm x1
- USB Type A to Type-C cable ~1m x1
- Jumper (2PCS) x1
- Screws pack x1
- USB expansion board x1
- Network cable ~1.5m x1
- OPTIONS Power adapter x1
- Camera FPC cable ~15cm (2PCS) x1
