JetRacer AI Kit, AI Racing Robot Powered by Jetson Nano

$207.99 - $471.99
Waveshare Jetson Nano Dev Kit + TF Card

Related Products:

Description

Details

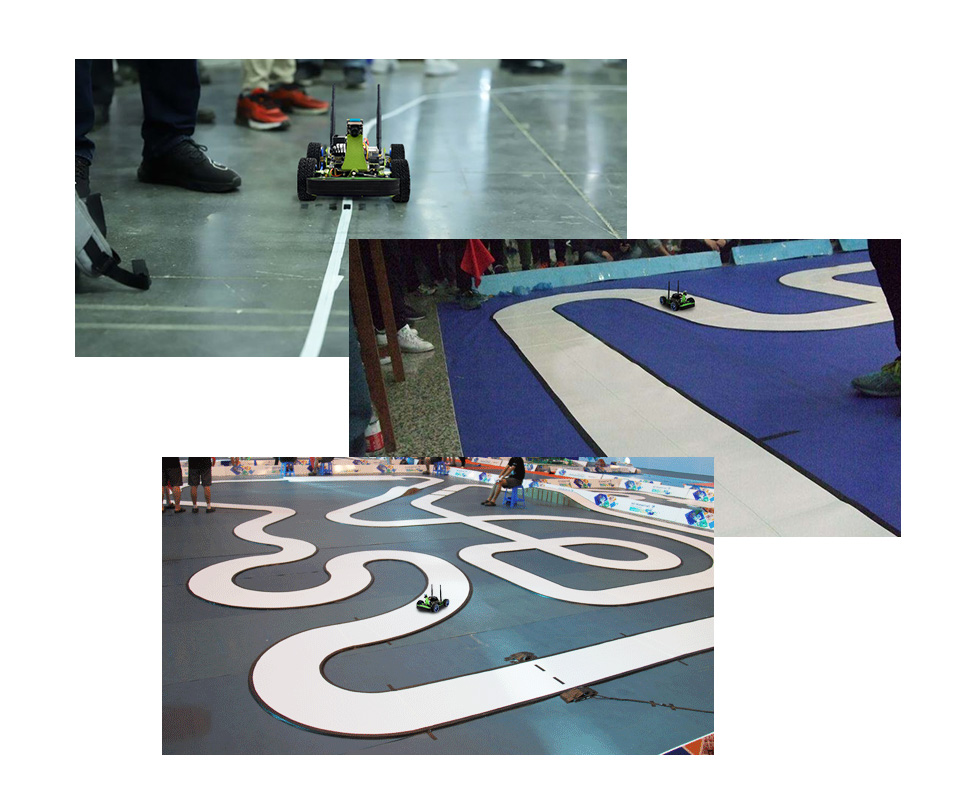

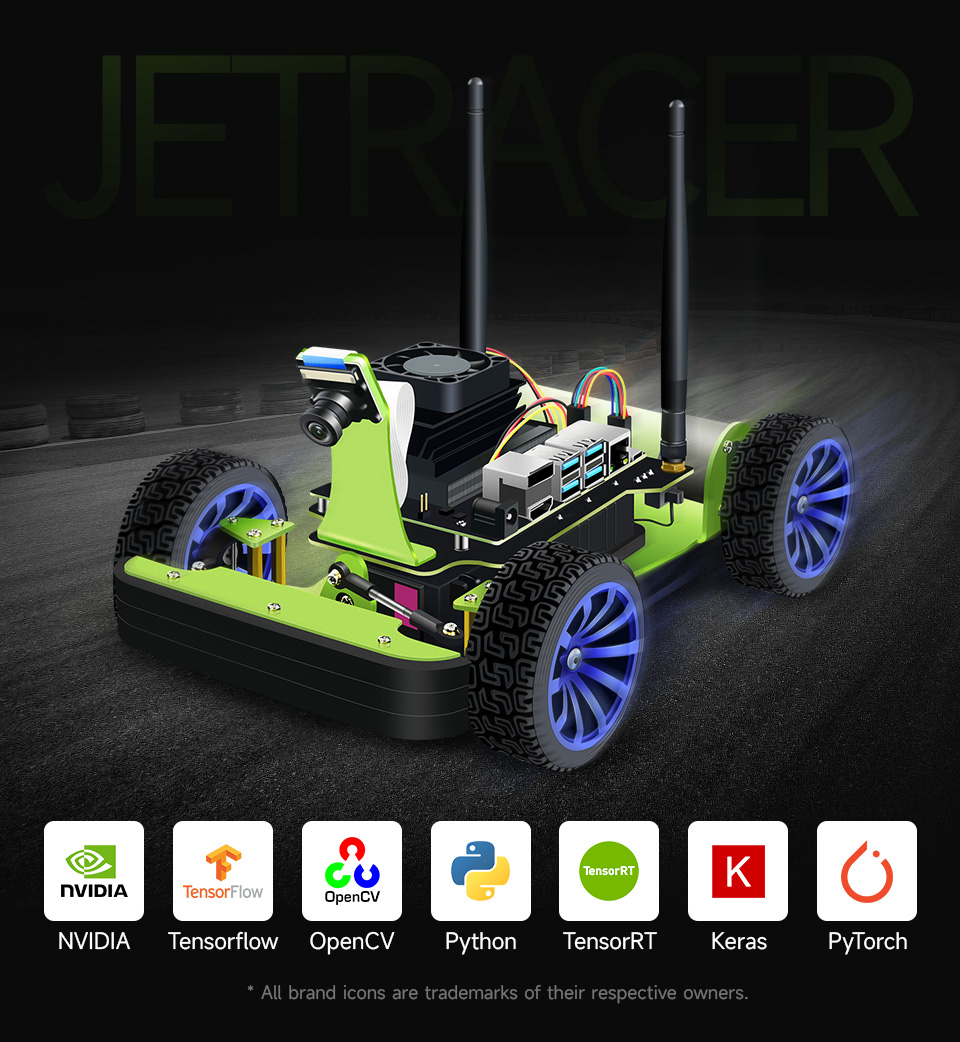

It's Racing Time! Meet the JetRacer — AI Racing Robot Powered by Jetson Nano
Waveshare Jetson Nano Dev Kit

Based on NVIDIA Jetson Nano module

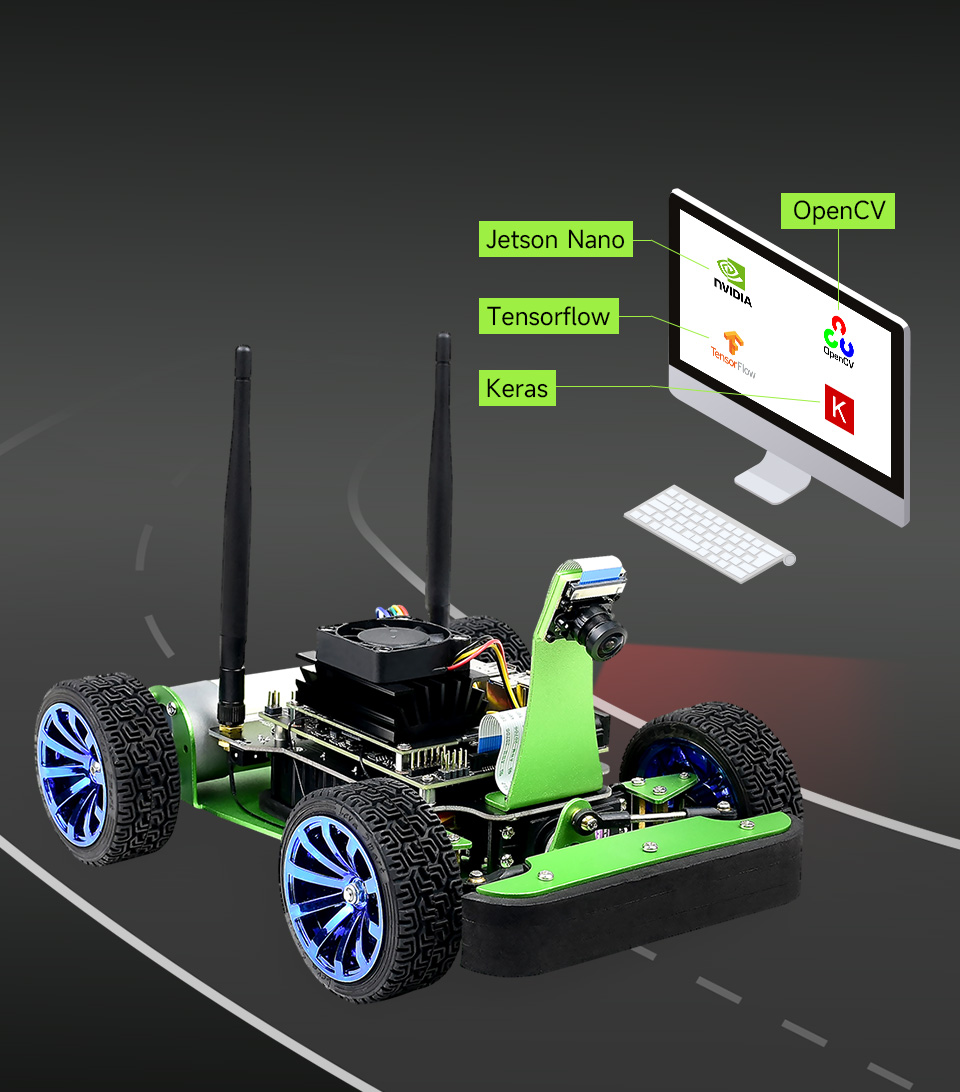

The Waveshare Jetson Nano Dev Kit incorporates Jetson Nano Module with 16GB eMMC and 4GB RAM. Jetson Nano is a small, powerful computer, which delivers 472 GFLOPS for running modern AI algorithms fast, with a quad-core Cortex-A57 CPU and a 128-core Maxwell GPU.It is widely used for deep learning, computer vision, GPU computing, multimedia processing,and much more. Many popular AI frameworks are supported, such as TensorFlow, PyTorch, Caffe / Caffe2, Keras, and MXNet, etc.

Note: the Waveshare Jetson Nano Dev Kit is optional.
Resources & Services
Jetson AI Robot Selection Guide
 JetBot ROSJetRacer ROSJetBotJetRacerJetRacer Pro
Controller* WS 4GB 2GB WS 4GB 2GB WS 4GB 2GB
MICROCONTROLLER RP2040 N/A
Intelligent Speech Double Speakers
Dual Microphones
Support Intelligent speech
One Speaker
Dual Microphones
Support Intelligent speech
N/A
SENSOR IMU Sensor
RPLIDAR A1
N/A
MAPPING NAVIGATION Support Not Support
Camera 8MP HD resolution, 160° FOV wide angle camera
OLED 0.91" 128×32 pixels
Wireless* AC8265 USB AC8265 USB AC8265 USB
Driving Type Differential 2WD Ackerman steering
Dual gearmotor rear wheel drive
Differential 2WD Ackerman steering
Dual gearmotor rear wheel drive
Ackerman steering
High speed motors 4WD
Front and rear axle differentials
Shock absorber N/A Adjustable oil-filled shocks
4WD independent suspension
Power supply 12.6V, 18650 battery × 3
(connected in series)
8.4V, 18650 battery × 4
(two in parallel, two in series)
Note: the 18650 batteries are NOT included.
motor 37-520 Metal Encoder Motor
Reduction Rate 1:30
Idle Speed 333RPM
TT motor
Reduction rate 1:48
Idle speed 240RPM
37-520 DC gearmotor
Reduction rate 1:10
Idle speed 740RPM
RC380 high speed carbon brushed motor
Idle speed 15000RPM
MOTOR ENCODER AB phase Hall encoder N/A
Servo N/A 9kg/cm torque N/A 9kg/cm torque 6kg/cm torque
Chassis Aluminum alloy chassis Quality rugged plastic chassis
Crashproof N/A Front sponge N/A Front sponge
Program library JetBot, ROS JetRacer, DonkeyCar, ROS JetBot, ROS JetRacer, DonkeyCar
Suggestion ROS series Entry level
Experienced programming skill required
Entry level
Basic programming skill required
Competition level
Experienced programming skill required
High speed competition level
Experienced programming skill required
Note *Controller:
2GB stands for Jetson Nano 2GB Developer Kit controller, with 2GB RAM
WS 4GB stands for Jetson Nano Module + Waveshare carrier board, B01 compatible, with 4GB RAM
*Wireless:

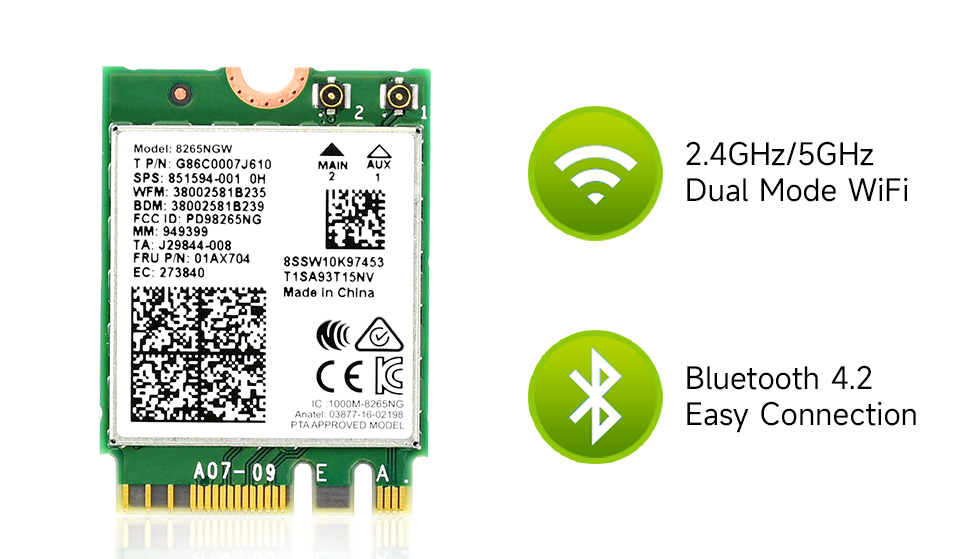

AC8265 stands for AC8265 wireless NIC, 2.4G/5G dual-band WiFi, Bluetooth 4.2
USB stands for USB wireless NIC, 2.4G/5.8G dual-band WiFi

Quick Overview

  • Please properly keep the Jetson products' original packing box and accessories (if any) for warranty service, and the serial numbers on the product and packing box MUST be matched, otherwise, the original manufacturer will reject returning / repairing.
  • The 18650 batteries are NOT included
  • Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more

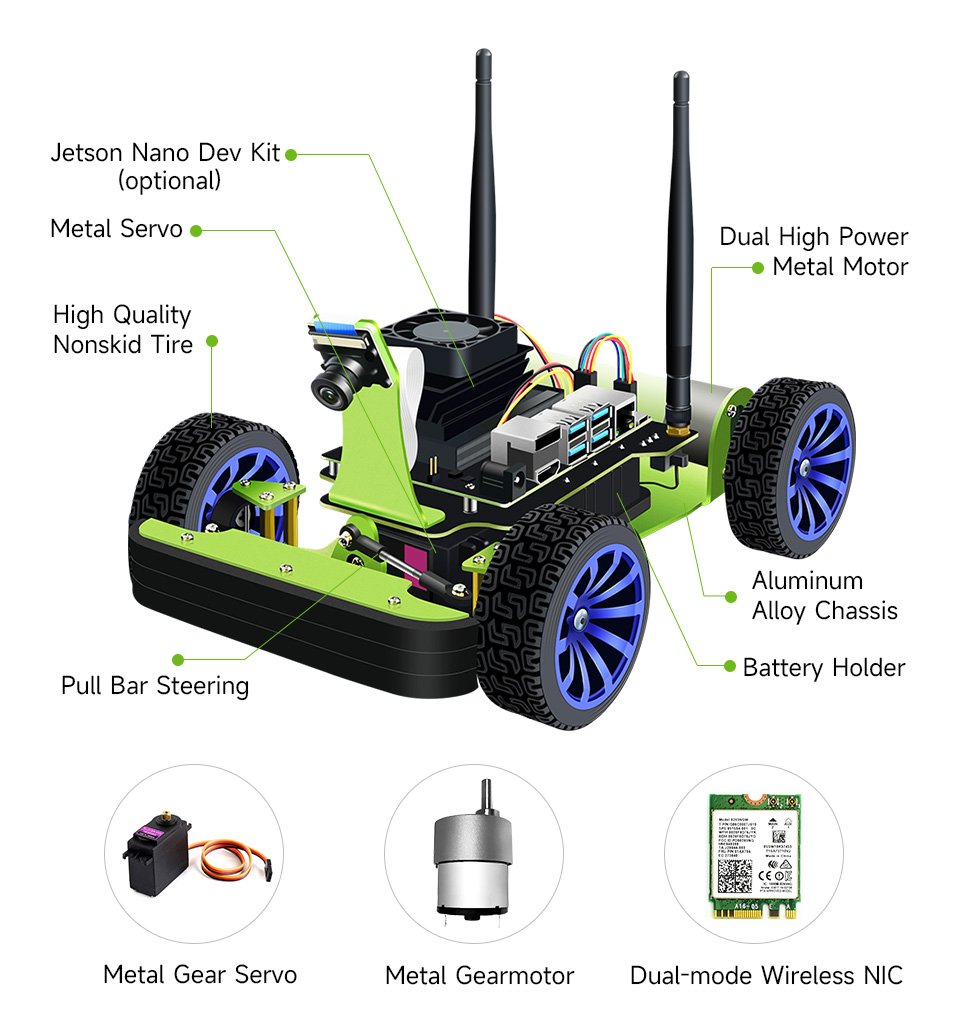

  1. OPTIONS Waveshare Jetson Nano Dev Kit, including:
    • Jetson Nano carrier board
    • Jetson Nano module with 16GB eMMC
    • NVIDIA official heatsink
  2. OPTIONS Micro SD Card 64GB
  3. JetRacer metal kit 6PCS
  4. EVA felt pad 2PCS
  5. 3D-printed motor lid

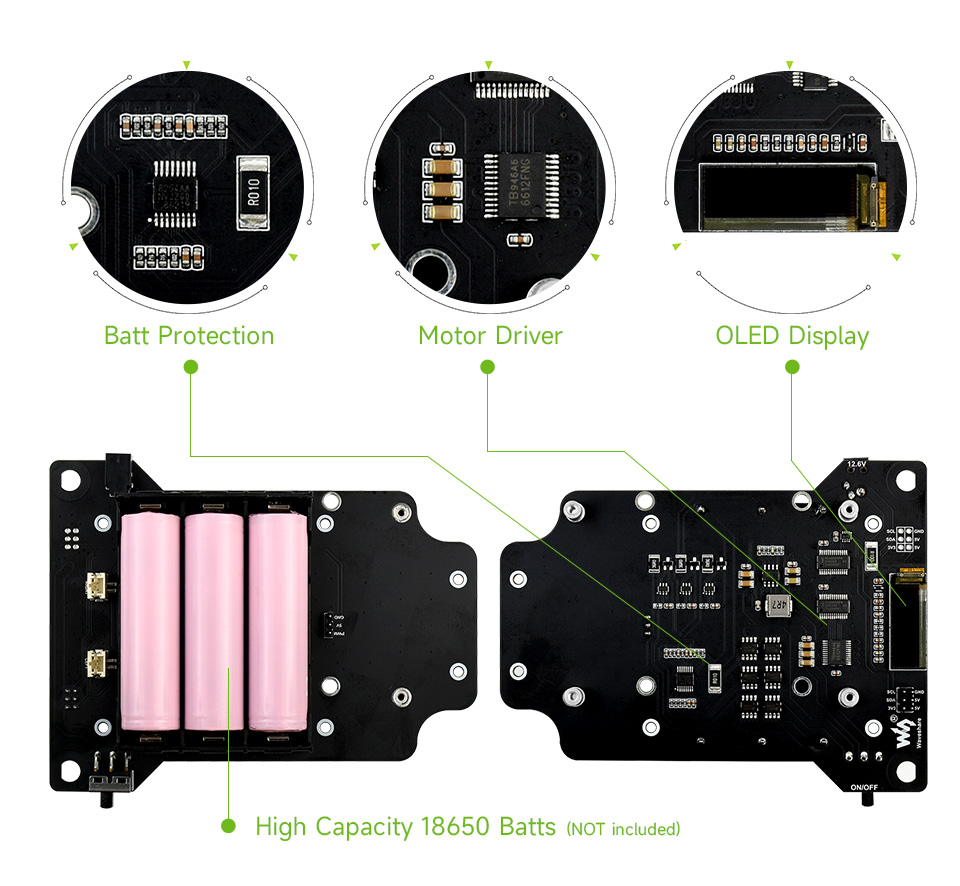

  6. JetRacer expansion board

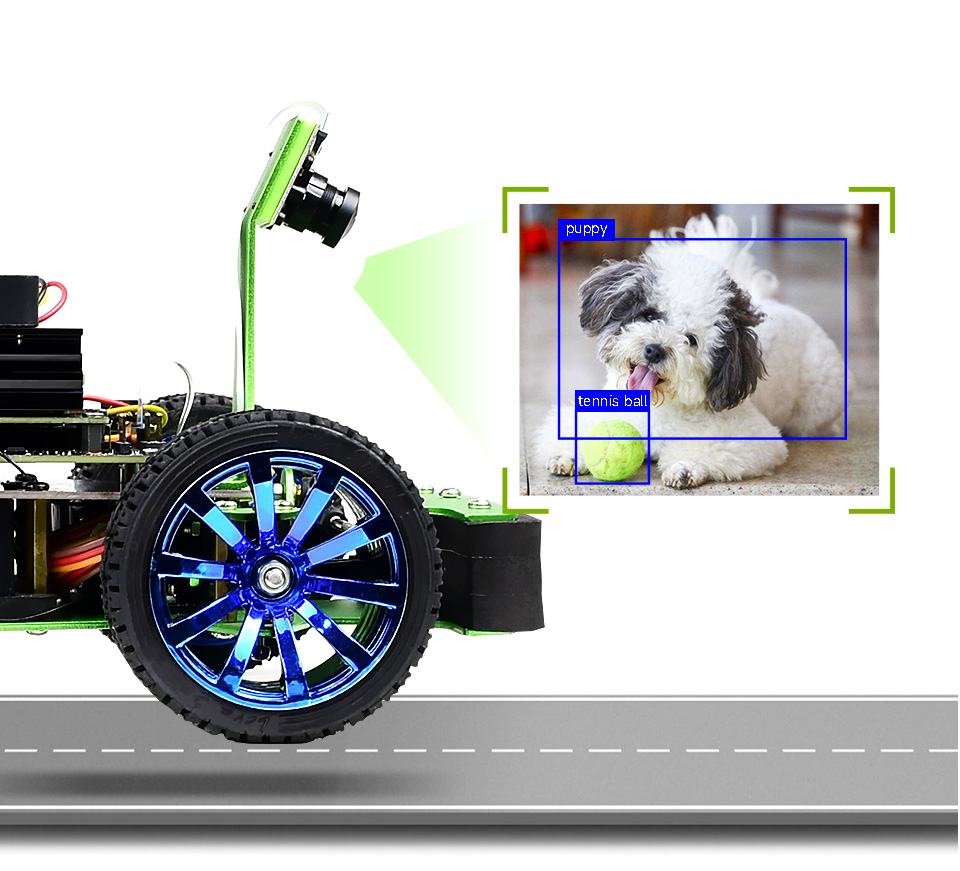

  7. IMX219-160 Camera
  8. Wireless-AC8265
  9. Acrylic piece
  10. Servo mount
  11. Metal Gearmotor 2PCS
  12. Tire 4PCS
  13. Coupler 2PCS
  14. MG996R servo
  15. MG996R servo wheel
  16. Steering knuckle 2PCS
  17. Ball bearing 4PCS
  18. M3 plastic ball joint 4PCS
  19. M3 pull bar 2PCS
  20. 12.6V battery charger + EU head
  21. Wireless gamepad
  22. 6Pin cable
  23. Spanner 2PCS
  24. Screwdriver 2PCS
  25. Mini cross wrench sleeve
  26. 4010 cooling fan
  27. Micro SD card reader
  28. Screws pack

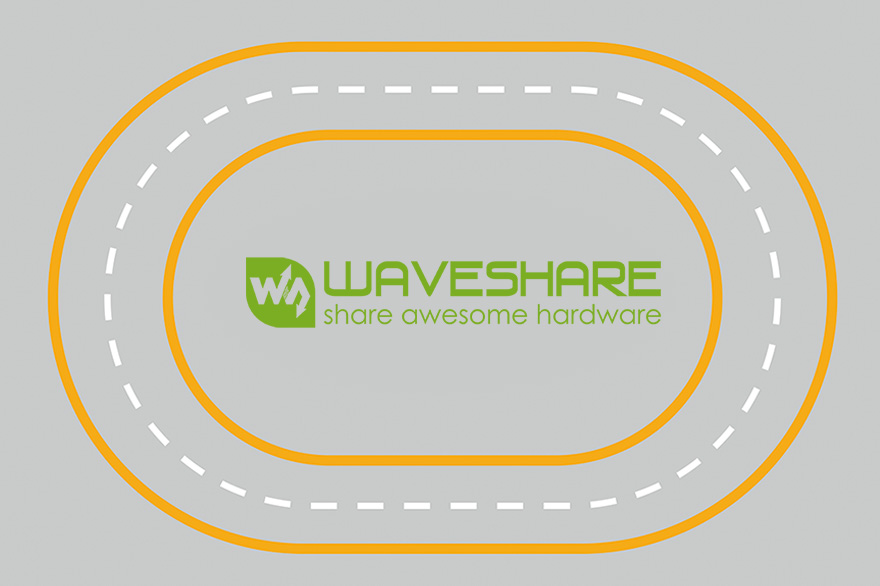

  29. Track map
