Details

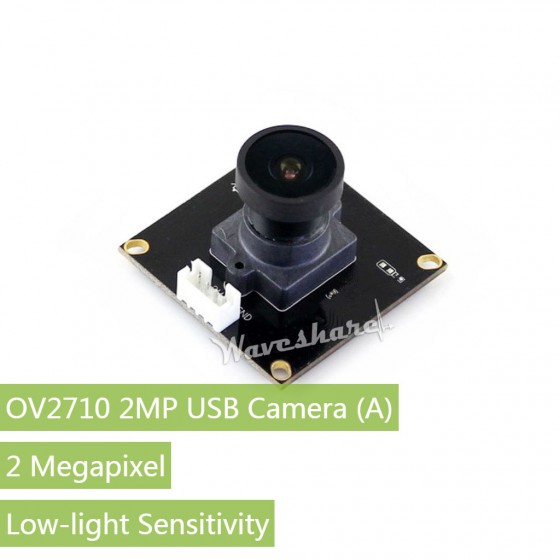

OV2710 2MP USB Camera, Better Sensitivity in Low-light Condition, Driver-Free
Features
- 2 megapixel OV2710 sensor
- 1920x1080 resolution
- USB interface, UVC protocol, driver-free, plug-and-play
- Supports Raspberry Pi and Jetson Nano
- DSP
- Automatic white balance (AWB)
- Automatic exposure (AEC)
- Automatic gain control (AGC)
- Camera specifications
- CCD size: 1/2.7inch
- Aperture (F): 2.8
- Focal Length: 2.9mm
- Field of View (Diagonal): 145°
- Dynamic range: 69dB
- Interface: USB2.0
- Image formats: MJPEG, YUY2
- Operating temperature: 0°C ~ 50°C
- Dimension: 38mmx38mm
- Supported OS: Windows, Linux
Development Resources
Wiki : www.waveshare.com/wiki/OV2710_2MP_USB_Camera_(A)
Selection Guide
| Part Number | Pixels | Sensor | Best Resolution | Dimension | Field of View | Feature |
|---|---|---|---|---|---|---|
| OV2710 2MP USB Camera (A) | 2MP | OV2710 | 1920x1080 | 38x38mm | 145° | Low-light sensitivity |
| GC2093 2MP USB Camera (A) | 2MP | GC2093 | 1920x1080 | 38x38mm | 170° | Wide dynamic range, backlit imaging, onboard microphone |
| OV5693 5MP USB Camera (A) | 5MP | OV5693 | 2592x1944 | 18×40mm | 135° | Auto focus |
| OV5693 5MP USB Camera (B) | 5MP | OV5693 | 2592x1944 | 8.5×60.2mm | 75° | Small size, auto focus |
| OV5640 5MP USB Camera (B) | 5MP | OV5640 | 2592x1944 | 9×62mm | 68° | Small size, auto focus |
| OV5640 5MP USB Camera (C) | Small size | |||||
| IMX335 5MP USB Camera (A) | 5MP | IMX335 | 2592x1944 | 38×38mm | 106.9° | Manual focus, low-light sensitivity, wide dynamic range |
| IMX335 5MP USB Camera (B) | 5MP | IMX335 | 2592x1944 | 25×24mm | 175° | Fixed-focus, wide angle, low-light sensitivity, wide dynamic range |
| IMX179 8MP USB Camera (A) | 8MP | IMX179 | 3288x2512 | 38x38mm | 145° | HD, embedded digital mic |
| IMX179 8MP USB Camera (B) | 8MP | IMX179 | 3264×2448 | 9×62mm | 75° | HD, small size, auto focus |
| IMX258 13MP OIS USB Camera (A) | 13MP | IMX258 | 4208×3120 | 38×38mm | 127° | HD, OIS |
Weight: 0.048 kg
Quick Overview
- OV2710 2MP USB Camera (A) x1
- USB to 4-pin cable x1
