OV5693 5MP USB Camera, Fixed-focus, Auto Focusing, M12 Camera Module

SKU: 24710
Part Number: OV5693 5MP USB Camera (A)
Brand: Waveshare

$29.99
$29.392+
$29.093+
$28.974+

Related Products:

Description

Details

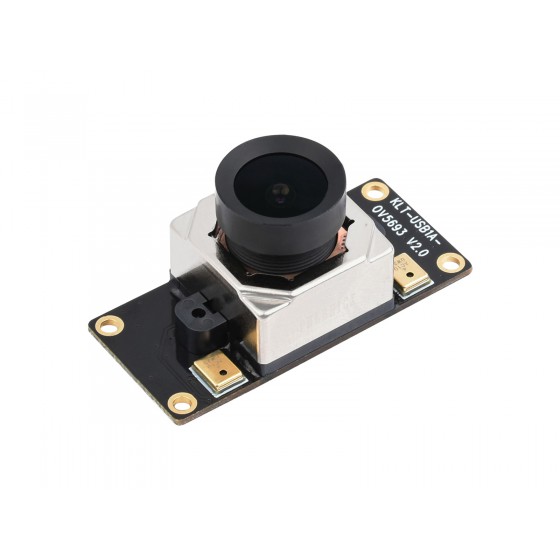

OV5693 5MP USB Camera, Fixed-focus, Auto Focusing, M12 Camera Module
5MP M12 camera module

OV5693 sensor, USB2.0 port, auto focusing

Specifications
Pixels 5MP
Sensor OV5693
Interface USB 2.0
Camera Sensor size 1/4 inch
Aperture (F) 2.1
Focal length (EFL) 2.5 mm
Field of view (FOV) 135°(D) 95°(H) 70°(V)
Focusing Auto focusing
Image Format support MJPG, YVY2
Static image resolution 2592 × 1944
Video recording MJPG:
2592 × 1944 15FPS
1920 × 1080 15FPS
1280 × 720 15FPS
640 × 480 15FPS
YUY2:
2592 × 1944 3FPS
1920 × 1080 5FPS
1280 × 720 10FPS
640 × 480 15FPS
Operating voltage 5V ± 5%
Operating current 500mA
Camera size 18.00 × 18.00 × 19.69 mm
Module size 18.00 × 40.00 mm
Connecting with USB cable
Outline dimensions

Selection Guide

Part Number Pixels Sensor Best Resolution Dimension Field of View  Feature
OV2710 2MP USB Camera (A) 2MP OV2710 1920x1080 38x38mm 145° Low-light sensitivity
OV5693 5MP USB Camera (A) 5MP OV5693 2592x1944 18×40mm 135° Auto focus
OV5693 5MP USB Camera (B) 5MP OV5693 2592x1944 8.5×60.2mm 75° Small size, auto focus
OV5640 5MP USB Camera (B) 5MP OV5640 2592x1944 9×62mm 68° Small size, auto focus
OV5640 5MP USB Camera (C) Small size
IMX335 5MP USB Camera (A) 5MP IMX335 2592x1944 38×38mm 106° Manual focus, low-light sensitivity, wide dynamic range
IMX335 5MP USB Camera (B) 5MP IMX335 2592x1944 25×24mm 175° Fixed-focus, wide angle, low-light sensitivity, wide dynamic range
IMX179 8MP USB Camera (A) 8MP IMX179 3288x2512 38x38mm 145° HD, embedded digital mic
IMX179 8MP USB Camera (B) 8MP IMX179 3264×2448 9×62mm 75° HD, small size, auto focus
IMX258 13MP OIS USB Camera (A) 13MP IMX258 4208×3120 38×38mm 127° HD, OIS

Weight: 0.028 kg

Quick Overview

OV5693 5MP USB Camera (A) x1
