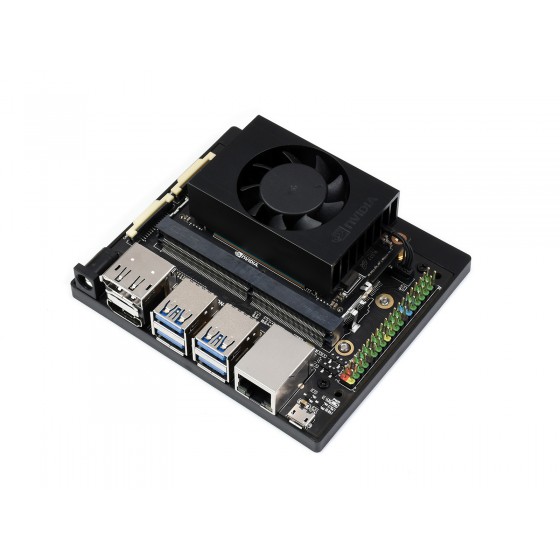

Jetson Xavier NX AI Development Board, Waveshare NX Development Board Based on Jetson Xavier NX

Waveshare Jetson Xavier NX Dev Kit

Alternative Solution For Jetson Xavier NX Developer Kit

Based on Jetson Xavier NX Module
AI Edge Computing Development Kit

This is not the NVIDIA official Developer Kit

Based on Jetson Xavier NX Module, providing almost the same peripheral interfaces, size and thickness as the Jetson Xavier NX Developer Kit.

This kit includes a Xavier NX Module with onboard 16GB eMMC, does not support Micro SD card. Free 128 GB NVMe SSD, high-speed reading/writing, meet the needs of large AI project development.

Version Option

JETSON-IO-BASE-B
Carrier board, can directly insert into Jetson Xavier NX Module.

Waveshare NX development kit 8/16 GB
Includes Jetson Xavier NX 8/16 GB Module, JETSON-IO-BASE-B, 128GB NVMe SSD, power adapter and cooling fan.

comparing the specifications

	Official Jetson Xavier NX Developer Kit	Waveshare Jetson Xavier NX Developer Kit
Appearance		It is almost the same as the Jetson Xavier NX Developer Kit, compatible with the expansion board and the case of the NX official developer kit
Core Board	8GB memory, a special no eMMc version included in the official kit.	NVIDIA Official 8/16 GB Xavier NX Module with 16GB eMMC
External storage	Micro SD card (should be purchase separately)	Free 128G NVMe SSD, the read speed of PCIe 3.0 interface up to 2400MB/s, no need to purchase additionally, which can meet the requirements of complex development projects
Network Card	Original M.2 wireless network card, support Bluetooth 5.0, dual-band WIFI	M.2 wireless network card, support Bluetooth 5.0, dual-band WIFI
GPIO	Normal 40PIN GPIO Interface	Colorful 40PIN GPIO Interface
Others	Parameters such as AI performance, CPU, GPU, peripheral interface, size, bottom case and thickness are the same

Jetson Xavier NX Module Specification

Version	8GB	16GB
AI Performance	21 TOPS
GPU	384-core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU	6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
Memory	8 GB 128-bit LPDDR4x 59.7GB/s	16 GB 128-bit LPDDR4x 59.7GB/s
Storage	16 GB eMMC 5.1
Power	10W \| 15W \| 20W
PCIe	1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*
CSI	Up to 6 cameras (24 via virtual channels) 14 lanes (3x4 or 6x2, 3x4 + 1x2 or 5x2 + 1x4 ) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)
Video Encode	2x 4K60 \| 4x 4K30 \| 10x 1080p60 \| 22x 1080p30 (H.265) 2x 4K60 \| 4x 4K30 \| 10x 1080p60 \| 20x 1080p30 (H.264)
Video Decode	2x 8K30 \| 6x 4K60 \| 12x 4K30 \| 22x 1080p60 \| 44x 1080p30 (H.265) 2x 4K60 \| 6x 4K30 \| 10x 1080p60 \| 22x 1080p30 (H.264)
Display	2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
DL Accelerator	2x NVDLA Engines
Vision Accelerator	2x PVA
Networking	10/100/1000 BASE-T Ethernet
Dimensions	45 mm x 69.6 mm 260-pin SO-DIMM connector

*Please refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features

Compact, Powerful Performance At The Edge

21 TOPS AI Performance

Up to 21 TOPS of accelerated computing delivers the horsepower to run modern neural networks in parallel and process data from multiple high-resolution sensors, that is a requirement for full AI systems

With Cloud-Native Support

Jetson Xavier NX modules cloud-native support lets developers build and deploy high-quality, software-defined features on embedded and edge devices. Pre-trained AI models from NVIDIA NGC and the TAO Toolkit give you a faster path to trained and optimized AI networks, while containerized deployment to Jetson devices allows flexible and seamless updates.

Ideal For Critical Embedded Applications

Jetson Xavier NX is perfect for high-performance AI systems like commercial robots, medical instruments, smart cameras, high-resolution sensors, automated optical inspection, smart factories, and other AIoT embedded systems.

Image Recognition

Object Recognition

Semantic Segmentation

Pose Estimation

Monocular Depth

Position Tracking

AI Computing Neural Networks SDK

Jetson Development Pack (JetPack) is an on-demand all-in-one package that bundles and installs all development software tools for the NVIDIA Jetson embedded platform.

Onboard Resources

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/JETSON-XAVIER-NX-DEV-KIT

Waveshare Jetson Series
Product Comparison

Product	Nano Developer Kit		TX2 NX Developer Kit	Xavier NX Developer Kit
Version	NVIDIA Official B01 Kit	Waveshare	Waveshare	NVIDIA Official Kit	Waveshare
AI Performance	0.5 TFLOPS (FP16)		1.33 TFLOPS	21 TOPS
GPU	NVIDIA Maxwell, 128 NVIDIA CUDA Core		NVIDIA Pascal architecture with 256 NVIDIA CUDA cores	384-core NVIDIA Volta GPU with 48 Tensor Cores
CPU	4-Core ARM Cortex-A57 MPCore CPU		Dual-core NVIDIA Denver 2 64-bit CPU and Quad-core Arm Cortex-A57 MPCore processor complex	6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3
Memory	4 GB 64-bit LPDDR4 1600Mhz 25.6GB/s		4 GB 128 bit LPDDR4 51.2 GB/s	8 / 16 GB 128-bit LPDDR4x 59.7GB/s
Storage	Micro SD card (should be purchase separately)	16 GB eMMC 5.1	16 GB eMMC 5.1	Micro SD card (should be purchase separately)	16 GB eMMC 5.1
Free Storage	None	32 GB U disk	128 GB SSD	None	128 GB SSD
Power	5W \| 10W		7.5W \| 15W	10W \| 15W \| 20W
PCIe	M.2 E KEY (PCIe Gen 2 x1)		M.2 E KEY (PCIe Gen 4 x1) M.2 M KEY (PCIe Gen 4 x4)
CSI	2 MIPI CSI-2 DPHY Channel
Video Encode	4Kp30 4x 1080p30 9x 720p30 (H.264/H.265)		1x 4K60 3x 4K30 4x 1080p60 8x 1080p30 (H.265) 1x 4K60 3x 4K30 7x 1080p60 14x 1080p30 (H.264)	2x 4K60 4x 4K30 10x 1080p60 22x 1080p30 (H.265) 2x 4K60 4x 4K30 10x 1080p60 20x 1080p30 (H.264)
Video Decode	4Kp60 2x 4Kp30 8x 1080p30 18x 720p30 (H.264 / H.265)		2x 4K60 4x 4p30 7x 1080p60 14x 1080p30 (H.264 / H.265)	2x 8K30 6x 4K60 12x 4K30 22x 1080p60 44x 1080p30 (H.265) 2x 4K60 6x 4K30 10x 1080p60 22x 1080p30 (H.264)
Display	HDMI 2.0 / DP1.2		HDMI 2.0 / DP 1.4
DL Accelerator	-		-	2x NVDLA Engines
Vision Accelerator	-		-	2x PVA
Networking	10/100/1000 BASE-T Ethernet
Dimensions	100 x 80 x 29 mm		103 x 90.5 x 34 mm
