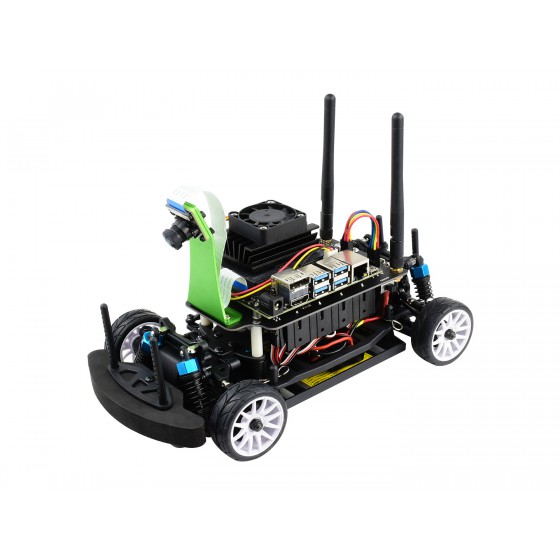

JetRacer Pro AI Kit B, High Speed AI Racing Robot Powered by Jetson Nano, Pro Version, comes with Waveshare Jetson Nano Dev Kit

$237.99 - $513.99
Description

Details

Faster, Stronger, JetRacer Pro! — High Speed AI Racing Robot Powered by Jetson Nano, the Professional Version
Jetson Nano Dev Kit

Base on the N-VIDIA Jetson Nano Module

Jetson Nano is a small, powerful AI computer, which delivers 472 GFLOPS for running modern AI algorithms fast, with a Cortex-A57 CPU and a 128-core Maxwell GPU.It is widely used for deep learning, computer vision, GPU computing, multimedia processing,and much more. Many popular AI frameworks are supported, such as TensorFlow, PyTorch, Caffe / Caffe2, Keras, and MXNet, etc. This product provides two version options: N-VIDIA Jetson Nano Developer Kit (B01) and Waveshare Jetson Nano Dev Kit.

Jetson Nano Developer Kit (B01) is the official N-VIDIA kit with a variety of onboard interfaces including the 40PIN GPIO expansion header, Gigabit Ethernet port, USB 3.0 ports, HDMI port, DIS port and CSI camera connector, meet the needs of various applications.

Waveshare Jetson Nano Dev Kit is the alternative solution of B01 kit, with the Jetson Nano B01 eMMC version module and the Waveshare JETSON-IO-BASE-A carrier board, providing almost the same performance and appearance as the Jetson Nano Developer Kit (B01). The B01 kit on board is a non-production specification Jetson Nano module, mainly for development and software testing, while the Jetson Nano B01 eMMC version is more suitable for users to integrate in production environments.

Note: the Jetson Nano Dev Kit is optional.
Kit Selection
Kit A B Accessories Pack
Necessary accessories
JetRacer Pro expansion board, On-road chassis,
IMX219-160 Camera, Wireless-AC8265, cooling fan,
gamepad, power adapter, etc.
64GB TF Card
N-VIDIA kit:
Jetson Nano Developer Kit (B01)
Waveshare Jetson Nano Dev Kit:
The Jetson Nano module, JETSON-IO-BASE-A carrier board
and N-VIDIA official heatsink

* Please refer to the part list for detailed package content.

High performance autonomous AI racing car

higher performance chassis, faster racing speed

interactive webpage programming, high frame rate processing through torch2trt (PyTorch to TensorRT translator) optimizing, easy to achieve faster autonomous selft driving

suitable for high school AI teaching / professional racing

DonkeyCar open source project

deep learning self driving car

JetRacer Pro also supports DonkeyCar open source project. DonkeyCar utilizes deep learning neural network framework Keras/TensorFlow, together with computer vision library OpenCV, to achieve self driving.

Deep learning, autonomous driving
introduction
chassis structure
JetRacer Pro expansion board highly integrated

rechargeable, battery voltage monitor, no messy wiring, simple assembly

8MP 160° FOV camera

IMX219 high quality sensor, 3280×2464 resolution

Dual-band Wireless AC8265

High speed WiFi, stable Bluetooth communication, low latency

Multiple teleoperation method
Extra free track map

delivered with 3m×2m large size track map for your convenience

Resources & Services
Jetson AI Robot Selection Guide
 JetBot ROSJetRacer ROSJetBotJetRacerJetRacer Pro
Kit A B A B A B A B A B
Controller* B01 WS 4GB B01 WS 4GB B01 WS 4GB B01 WS 4GB B01 WS 4GB
MICROCONTROLLER RP2040 N/A
Intelligent Speech Double Speakers
Dual Microphones
Support Intelligent speech
One Speaker
Dual Microphones
Support Intelligent speech
N/A
SENSOR IMU Sensor
RPLIDAR A1
N/A
MAPPING NAVIGATION Support Not Support
Camera 8MP HD resolution, 160° FOV wide angle camera
OLED 0.91" 128×32 pixels
Wireless AC8265 wireless NIC, 2.4G/5G dual-band WiFi, Bluetooth 4.2
Driving Type Differential 2WD Ackerman steering
Dual gearmotor rear wheel drive
Differential 2WD Ackerman steering
Dual gearmotor rear wheel drive
Ackerman steering
High speed motors 4WD
Front and rear axle differentials
Shock absorber N/A Adjustable oil-filled shocks
4WD independent suspension
Power supply 12.6V, 18650 battery × 3
(connected in series)
8.4V, 18650 battery × 4
(two in parallel, two in series)
Note: the 18650 batteries are NOT included.
motor 37-520 Metal Encoder Motor
Reduction Rate 1:30
Idle Speed 333RPM
TT motor
Reduction rate 1:48
Idle speed 240RPM
37-520 DC gearmotor
Reduction rate 1:10
Idle speed 740RPM
RC380 high speed carbon brushed motor
Idle speed 15000RPM
MOTOR ENCODER AB phase Hall encoder N/A
Servo N/A 9kg/cm torque N/A 9kg/cm torque 6kg/cm torque
Chassis Aluminum alloy chassis Quality rugged plastic chassis
Crashproof N/A Front sponge N/A Front sponge
Program library JetBot, ROS JetRacer, DonkeyCar, ROS JetBot, ROS JetRacer, DonkeyCar
Suggestion ROS series Entry level
Experienced programming skill required
Entry level
Basic programming skill required
Competition level
Experienced programming skill required
High speed competition level
Experienced programming skill required
Note *Controller:
BO1 stands for Jetson Nano Developer Kit (B01) controller, with 4GB RAM
WS 4GB stands for Jetson Nano Module + Waveshare carrier board, B01 compatible, with 4GB RAM

Quick Overview

  • The 18650 batteries are NOT included
  • Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more
  1. OPTIONS Jetson Nano Dev Kit
  2. OPTIONS TF Card 64GB
  3. On-road chassis
  4. JetRacer Pro expansion board
  5. Wireless-AC8265 with antennas
  6. IMX219-160 Camera
  7. Acrylic camera spacer
  8. Camera holder
  9. Wireless gamepad
  10. Cooling fan
  11. 6Pin cable
  12. TF card reader
  13. Spanner
  14. Screwdriver x2
  15. 8.4V battery charger + EU head
  16. Screws pack
  17. Track map
