Core3566 Module Kit, Rockchip RK3566 Quad-core Processor, Compatible With Raspberry Pi CM4

Core3566 Module Kit, Rockchip RK3566 Quad-core Processor, Compatible With Raspberry Pi CM4

SKU: 24976
Part Number: Core3566-Kit-B

$76.99
$75.9910+
$75.4950+
$75.29100+
Description

Details

Core3566 Module Kit, Rockchip RK3566 Quad-core Processor, Compatible With Raspberry Pi CM4
Specifications
Processor Quad-core Arm Cortex-A55 @1.8GHz
Memory Options for 2GB/4GB LPDDR4 SDRAM memory
Storage Options for 0GB (Lite) or 32GB eMMC Flash
NPU 0.8 TOPS @INT8
GPU Arm Mali-G52 2EE
Connectivity Optional dual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac wireless WiFi, Bluetooth 5.0, BLE, supports external antenna
Supports IEEE 802.3 Gigabit Ethernet.
USB 2.0 × 1
PCIe Gen 2 x 1
28 GPIO signals
SD card interface (booted from eMMC first)
Video HDMI interface (4Kp60 supported)
2-lane MIPI DSI display interface × 2
2-lane MIPI CSI camera interface × 2
Multimedia 4Kp60 H.264/H.265/VP9 (decode), 1080p60 H.264/H.265 (encode)
Operating Voltage 5V DC
Operating Temp. -10°C ~ 80°C ambient
Dimensions 55 × 40 × 4.7mm
Core3566 Module
Kit Selection Guide
Kit A B C D E F G H
Necessary accessories
(UART module, 1PIN cables, USB cables, power supply)		 √ √ √ √ √ √ √ √
Core3566102032 √ √
Core3566104032 √ √ √ √ √ √
CM4-IO-BASE-A √ √ √ √
CM4-to-Pi4-Adapter √ √ √ √
HDMI to Micro HDMI Adapter √ √ √ √
IMX219-77 Camera √ √
4.3inch DSI LCD √ √
8DP-CAPLCD √ √

Core3566-Kit-A/B: CM4 base board kit (options for 2GB/4GB RAM)
The Core3566-Kit-A includes Core3566102032 (2GB RAM, 32GB eMMC Flash, with WiFi), and Core3566-Kit-B includes Core3566104032 (4GB RAM, 32GB eMMC Flash, with WiFi), both kits are equipped with CM4 mini base board (A), come with UART module, 1PIN cables, USB cables and 5V 3A power supply.

Core3566-Kit-C/D: CM4 to Pi4B adapter board kit (options for 2GB/4GB RAM)
The Core3566-Kit-C includes Core3566102032 (2GB RAM, 32GB eMMC Flash, with WiFi), and Core3566-Kit-D includes Core3566104032 (4GB RAM, 32GB eMMC Flash, with WiFi), both kits are equipped with CM4 to Pi4B adapter board, come with HDMI adapter, UART module, 1PIN cables, USB cables and 5V 3A power supply.

Core3566-Kit-E: CM4 base board + 4.3inch touch display + camera kit (4GB RAM)
On the basis of kit B, the Core3566-Kit-E comes with a 4.3inch touch display (800×480 resolution) and an IMX219 camera (8MP), which can display the images taken by the camera in real time to realize more human-computer interaction applications.

Core3566-Kit-F: CM4 to Pi4B adapter board + 4.3inch touch display + camera kit (4GB RAM)
On the basis of kit D, the Core3566-Kit-F comes with a 4.3inch touch display (800×480 resolution) and an IMX219 camera (8MP), which can display the images taken by the camera in real time to realize more human-computer interaction applications.

Core3566-Kit-G: CM4 base board + 8inch touch display kit (4GB RAM)
On the basis of kit B, this kit is equipped with an 8inch touch display (1280×800 resolution), larger screen size and more convenient for interactive operation, suitable for application scenarios with more demand for display screen usage.

Core3566-Kit-H: CM4 to Pi4B adapter board + 8inch touch display kit (4GB RAM)
On the basis of kit D, this kit is equipped with an 8inch touch display (1280×800 resolution), larger screen size and more convenient for interactive operation, suitable for application scenarios with more demand for display screen usage.

Highly integrated, powerful performance

integrated with CPU, GPU, VPU, NPU, etc.

  • RK3566 Quad-core 64-bit Cortex-A55 processor, frequency up to 1.8GHz, with 22nm process, features low power consumption and high performance
  • Integrated dual-core architecture ARM G52 GPU, high performance VPU and high efficiency NPU
  • The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1
  • The VPU can support 4K 60fps H.265/H.264/VP9 video decoding and 1080P 60fps H.265/ H.264 video encoding
  • The NPU with computing power of 0.8Tops supports one-click switching of mainstream frameworks like Caffe/TensorFlow
High speed WiFi and Bluetooth

Dual-band WiFi and Bluetooth AP6256 module, surf the web anywhere

* Note: WiFi function is optional, and an additional antenna is required for WiFi module since it has no onboard antenna.

Compatible with CM4 base board

* Note: some interfaces such as USB2.0, HDMI, CSI, etc. are not compatible, please check our Wiki for details.

Product details

Onboard Resources

Product show
Ordering Codes
Model Wireless RAM eMMC Flash
Core3566 1 = Yes
0 = No		 02 = 2GB
04 = 4GB		 000 = 0GB (Lite)
032 = 32GB
Example: Core3566104032, Core3566 module with onboard wireless, 4GB RAM, and 32GB eMMC Flash
Core3566 1 04 032
Part Number Wireless RAM eMMC Flash
Core3566002000 × 2GB 0GB (Lite)
Core3566002032 × 2GB 32GB
Core3566004000 × 4GB 0GB (Lite)
Core3566004032 × 4GB 32GB
Core3566102000 √ 2GB 0GB (Lite)
Core3566102032 √ 2GB 32GB
Core3566104000 √ 4GB 0GB (Lite)
Core3566104032 √ 4GB 32GB

Certificate of Authorization
Resources & Services
Wiki: https://wiki.luckfox.com/Core3566

Weight: 0.232 kg

Quick Overview

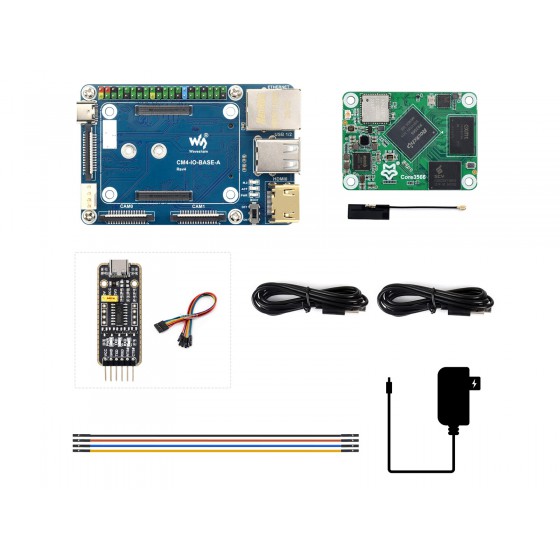

Core3566-Kit-A/B

  1. CM4-IO-BASE-A x1
  2. OPTIONS Core3566102032 / Core3566104032 x1
  3. CH343 USB UART Board (type C) with accessories x1
  4. USB Type-A to Type-C cable ~1m (2PCS) x1
  5. 1PIN cable (4PCS) x1
  6. OPTIONS 5V 3A power supply x1

Core3566-Kit-C/D

  1. CM4-to-Pi4-Adapter x1
  2. OPTIONS Core3566102032 / Core3566104032 x1
  3. CH343 USB UART Board (type C) with accessories x1
  4. USB Type-A to Type-C cable ~1m (2PCS) x1
  5. HDMI to Micro HDMI adapter x1
  6. 1PIN cable (4PCS) x1
  7. OPTIONS 5V 3A power supply x1

Core3566-Kit-E

  1. CM4-IO-BASE-A x1
  2. Core3566104032 x1
  3. CH343 USB UART Board (type C) with accessories x1
  4. 4.3inch DSI LCD with accessories x1
  5. IMX219-77 Camera x1
  6. 1PIN cable (4PCS) x1
  7. USB Type-A to Type-C cable ~1m (2PCS) x1
  8. OPTIONS 5V 3A power supply x1

Core3566-Kit-F

  1. CM4-to-Pi4-Adapter x1
  2. Core3566104032 x1
  3. CH343 USB UART Board (type C) with accessories x1
  4. 4.3inch DSI LCD with accessories x1
  5. IMX219-77 Camera x1
  6. HDMI to Micro HDMI adapter x1
  7. 1PIN cable (4PCS) x1
  8. USB Type-A to Type-C cable ~1m (2PCS) x1
  9. OPTIONS 5V 3A power supply x1

Core3566-Kit-G

  1. CM4-IO-BASE-A x1
  2. Core3566104032 x1
  3. CH343 USB UART Board (type C) with accessories x1
  4. 8DP-CAPLCD with accessories x1
  5. 1PIN cable (4PCS) x1
  6. USB Type-A to Type-C cable ~1m (2PCS) x1
  7. OPTIONS 5V 3A power supply x1

Core3566-Kit-H

  1. CM4-to-Pi4-Adapter x1
  2. Core3566104032 x1
  3. CH343 USB UART Board (type C) with accessories x1
  4. 8DP-CAPLCD with accessories x1
  5. HDMI to Micro HDMI Adapter x1
  6. 1PIN cable (4PCS) x1
  7. USB Type-A to Type-C cable ~1m (2PCS) x1
  8. OPTIONS 5V 3A power supply x1
