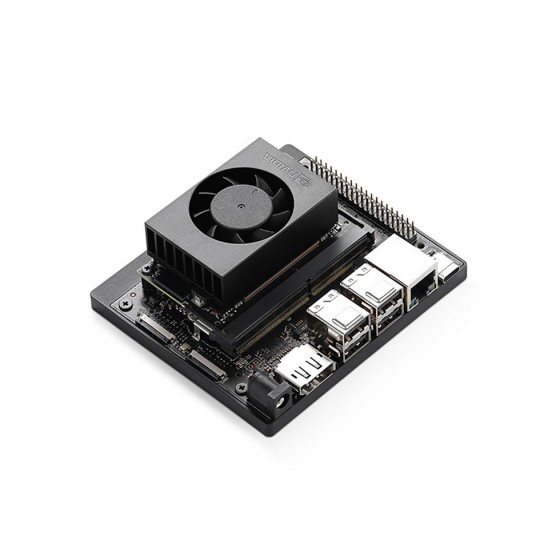

The N-VIDIA Jetson Orin Nano Developer Kit sets a new standard for creating entry-level AI-powered robots and intelligent cameras, while simplifying the process of starting with the Jetson Orin Nano series. Features a compact design, onboard multiple interfaces, this developer kit is an ideal solution for turning your creative ideas into reality. With up to 80X the performance of Jetson Nano, it can run all modern AI models, including transformer and advanced robot models.
Jetson Orin Nano Developer Kit is an official N-VIDIA development kit based on the Jetson Orin Nano 8GB module that delivers up to 40 TOPS of AI performance, and up to 67 TOPS after upgrading to the SUPER version. The difference between the onboard module and the production version of the Jetson Orin Nano 8GB module is that this kit adds a TF card slot, users can use a TF card for system installation.
| Module | 4GB | 4GB*** SUPER |
8GB | 8GB*** SUPER |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Version | 4GB Module | Waveshare Kit | 4GB Module | Waveshare Kit | 8GB Module | Waveshare Kit | 8GB Module | Waveshare Kit | Official Kit |
| AI performance | 20TOPS | 34 TOPS (sparse) 17 TOPS (dense) |
40TOPS | 67 TOPS (sparse) 33 TOPS (dense) |
|||||
| GPU | 512-core N-VIDIA Ampere architecture GPU with 16 Tensor Cores | 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores | |||||||
| GPU Frequency | 625MHz (Max) | 1020MHz (Max) | 625MHz (Max) | 1020MHz (Max) | |||||
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3 | ||||||||
| CPU Frequency | 1.5GHz (Max) | 1.7GHz (Max) | 1.5GHz (Max) | 1.7GHz (Max) | |||||
| Memory | 4GB 64-bit LPDDR5, 32GB/s | 4GB 64-bit LPDDR5, 51GB/s | 8GB 128-bit LPDDR5, 68GB/s | 8GB 128-bit LPDDR5, 102GB/s | |||||
| Storage | Supports external NVMe | 256GB NVMe Solid State Drive | Supports external NVMe | 256GB NVMe Solid State Drive | Supports external NVMe | 256GB NVMe Solid State Drive | Supports external NVMe | 256GB NVMe Solid State Drive | TF card slot & external NVMe via M.2 Key M |
| Power | 7W ~ 10W | 7 W | 10 W | 15W | 7W ~ 15W | 7 W | 10 W | 15W | |||||
| PCIe* | 1 x4 + 3 x1 (PCIe 3.0, Root Port & Endpoint) | M.2 Key M slot with x4 PCIe Gen3/ M.2 Key M slot with x2 PCIe Gen3/ M.2 Key E slot |
1 x4 + 3 x1 (PCIe 3.0, Root Port & Endpoint) | M.2 Key M slot with x4 PCIe Gen3/ M.2 Key M slot with x2 PCIe Gen3/ M.2 Key E slot |
1 x4 + 3 x1 (PCIe Gen3, Root Port & Endpoint) | M.2 Key M slot with x4 PCIe Gen3/ M.2 Key M slot with x2 PCIe Gen3/ M.2 Key E slot |
1 x4 + 3 x1 (PCIe Gen3, Root Port & Endpoint) | M.2 Key M slot with x4 PCIe Gen3/ M.2 Key M slot with x2 PCIe Gen3/ M.2 Key E slot |
|
| USB* | 3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) | 3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) | 3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) |
3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) |
|
| CSI Camera | Up to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps) |
2x MIPI CSI-2 Camera Connector | Up to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps) |
2x MIPI CSI-2 Camera Connector | Up to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps) |
2x MIPI CSI-2 Camera Connector | Up to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps) |
2x MIPI CSI-2 Camera Connector | |
| Video encode | 1080p30 supported by 1-2 CPU cores | ||||||||
| Video decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
||||||||
| Display | 1x 8K30 multi-mode DP 1.4a (+MST)/ eDP 1.4a/HDMI 2.1 |
1x DisplayPort 1.2 (+MST) connector | 1x 8K30 multi-mode DP 1.4a (+MST)/ eDP 1.4a/HDMI 2.1 |
1x DisplayPort 1.2 (+MST) connector | 1x 8K30 multi-mode DP 1.4a (+MST)/ eDP 1.4a/HDMI 2.1 |
1x DisplayPort 1.2 (+MST) connector | 1x 8K30 multi-mode DP 1.4a (+MST)/ eDP 1.4a/HDMI 2.1 |
1x DisplayPort 1.2 (+MST) connector | |
| Other | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, TF card slot, DC power jack |
| Networking | 1x GbE | 1x GbE Connector | 1x GbE | 1x GbE Connector | 1x GbE | 1x GbE Connector | 1x GbE | 1x GbE Connector | |
| Dimensions | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
103 × 90.5 × 34mm | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
103 × 90.5 × 34mm | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
103 × 90.5 × 34mm | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
103 × 90.5 × 34mm | 100 mm x 79 mmx 21 mm |
| * USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations. ** Virtual Channels for Jetson Orin Nano are subject to change Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features. *** Official kit: supports software upgrade to SUPER image, provides SUPER upgrade tutorial in the wiki (jetpack 6.1.1 can support upgrading SUPER version); *** Orin Nano Module and Waveshare kit: supports upgrading to SUPER image, provides SUPER upgrade tutorial in the wiki (jetpack 6.2 can support upgrading SUPER version); |
|||||||||
N-VIDIA Software
All N-VIDIA Jetson modules and developer kits are supported by the same N-VIDIA Jetson software stack, so you can develop once and deploy everywhere. Jetson software is designed to provide end-to-end acceleration for AI applications and accelerate the time to market. This brings the powerful N-VIDIA technologies that power data centers and cloud deployments to the edge.
Pretrained Models
Many AI applications have common needs: classification, object detection, language translation, text-to-speech, recommender engines, sentiment analysis, and more. Pretrained models from the NGC™ catalog are performance-optimized and ready to be fine-tuned with the N-VIDIA TAO Toolkit and customer datasets, reducing time and cost for production AI software development.
N-VIDIA software platforms including Isaac for robotics, Riva for AI speech, and Metropolis for video analytics, are available to speed vertical-specific applications
N-VIDIA Isaac
Robots improve efficiency and quality of life in industries such as manufacturing, logistics, healthcare, and service. N-VIDIA Isaac™ accelerates the process with enhanced robotics development, simulation, and deployment.
N-VIDIA Riva
N-VIDIA Riva is a fully accelerated SDK for building multimodal conversational AI applications using an end-to-end deep-learning pipeline, suitable for optimized skills in speech, vision, and natural language processing (NLP) tasks.
N-VIDIA Metropolis
N-VIDIA Metropolis includes an application framework, s set of developer tools, and the partner ecosystem. It brings visual data and AI together to improve operational efficiency and safety across a broad range of industries.
| Model | Module | Developer Kit |
|---|---|---|
|
Jetson AGX Orin 2048-core N-VIDIA Ampere architecture GPU with 64 Tensor Cores |
110×110×71.65mm Official Kit: 64GB |
|
|
Jetson Orin Nano 512/1024-core N-VIDIA Ampere architecture GPU with 16/32 Tensor Cores |
 Memory: 4GB / 8GB 69.6×45mm 260-pin SO-DIMM connector |
100×79×21mm Official Kit |
|
100×79×21mm Official Super Kit |
||
103×90.5×34mm Waveshare Kit: 4GB / 8GB |
||
103×90.5×34mm Waveshare Dual ETH Kit: 4GB / 8GB |
||
|
Jetson Orin NX 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
 Memory: 8GB / 16GB 69.6×45mm 260-pin SO-DIMM connector |
103×90.5×34mm Waveshare Kit: 8GB / 16GB |
|
103×90.5×34mm Waveshare Dual ETH Kit: 8GB / 16GB |
||
|
Note: some models haven't been released yet, please contact the Waveshare service team if you need them. |
||
Weight: 1.643 kg
Quick Overview
Jetson Orin Nano Developer Kit x1
