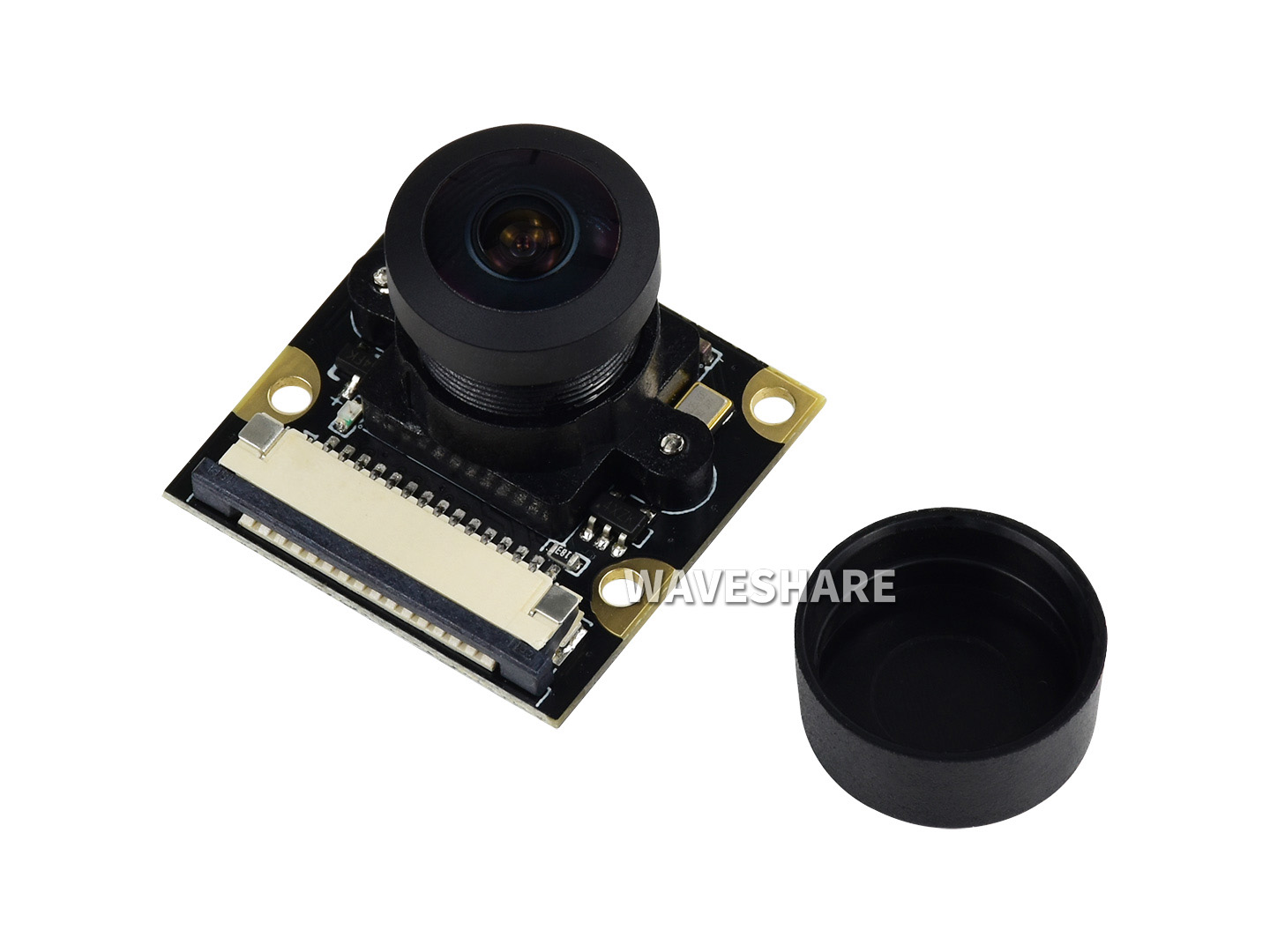

RPi Camera (H), Fisheye Lens, Supports Night Vision

SKU: 10703
Part Number: RPi Camera (H)

$32.99
$32.092+
$31.593+
$31.294+

Select Version:

Description

Details

Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View, Supports Night Vision

Features

  • Raspberry Pi Camera, supports all revisions of the Pi
  • Fisheye Lens, offers wider field of view
  • Comes with infrared LED, supports night vision
  • 5 megapixel OV5647 sensor
  • Camera specifications
    • CCD size : 1/4inch
    • Aperture (F) : 2.35
    • Focal Length : adjustable
    • Field of View : 160 degree (while other normal cameras are typically 72 degree)
      • Diagonal angle : 160 degree
      • Horizontal angle : 120 degree
    • Sensor best resolution : 1080p
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
    • Supports connecting infrared LED and/or fill flash LED
  • Dimension: 25mm x 24mm

Note: to use the camera with Raspberry Zero v1.3, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Downloads

Development resources:user manual, etc.
Download: www.waveshare.com/wiki/RPi_Camera_(H)

Selection Guide

Partnumber Pixels Sensor Adjustable-focus Infrared Night Vision Angle of View (degree) Manufacturer Dimensions (mm) Recommendation 1
RPi Camera 5 Mega OV5647 × × 72.4 element14 25x24x9
RPi Camera V2 8 Mega IMX219 × × 73.8 element14 25x24x9 ★★★☆
RPi NoIR Camera V2 8 Mega IMX219 × 73.8 element14 25x24x9 ★★★☆
RPi Camera (B) 5 Mega OV5647 × 75.7 Waveshare 32x32 ★★★
RPi Camera (C) 5 Mega OV5647 × × 72.4 - 25x24x9 ★☆
RPi Camera (D) 5 Mega OV5647 × × 72.4 Waveshare 25x24x9 ★★
RPi Camera (E) 5 Mega OV5647 × 72.4 Waveshare 25x24x6 ★★
RPi Camera (F) 5 Mega OV5647 75.7 Waveshare 25x24 ★★★★
RPi Camera (G) 5 Mega OV5647 × 160 Waveshare 25x24 ★★★★
RPi Camera (H) 5 Mega OV5647 160 Waveshare 25x24 ★★★★
RPi Camera (I) 5 Mega OV5647 × 170 Waveshare 32x32 ★★★
RPi Camera (J) 5 Mega OV5647 × 222 Waveshare 25x24 ★★★☆
RPi IR-CUT Camera 2 5 Mega OV5647 75.7 Waveshare 31x32 ★★★★
RPi Zero V1.3 Camera 5 Mega OV5647 × × 72.4 Waveshare 60x11.5x5 ★★★
  1. The recommendation is considered from sales report and cost performance.
  2. While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.

Package Content

Weight: 0.058 kg

Quick Overview

  1. RPi Camera (H) × 1
  2. Infrared LED Board (B) × 2
  3. 15-pin FFC (opposite sides contact) × 1
