- Description
Details
Night Vision Version Available | Compatible with Raspberry Pi series boards
Official Raspberry Pi Camera Module 3 with high resolution and autofocus support, 12MP, adopts the IMX708 sensor and is compatible with Raspberry Pi series boards.
The Raspberry Pi Camera Module 3 NoIR is the night vision version of the Camera Module 3 series. Compared to the standard version, the night vision version has no IR filter and supports night vision when used with infrared lighting, and the pictures taken during the daylight will be reddish.
With 12 MP high resolution, this camera series offers the following key enhancements compared to the IMX219 8MP Camera Module V2:
- Higher sensitivity
- High Dynamic Range (HDR) support for better photo quality
- Provides powered autofocus, more free focus control
Raspberry Pi Camera Module 3
Standard version with 75° FOV
Raspberry Pi Camera Module 3 Wide
Wide version with 120° FOV
Raspberry Pi Camera Module 3 NoIR
Night vision version with 75° FOV
Raspberry Pi Camera Module 3 Wide NoIR
Night vision Wide version with 120° FOV
| Model | Raspberry Pi Camera Module 3 | Raspberry Pi Camera Module 3 NoIR | Raspberry Pi Camera Module 3 Wide | Raspberry Pi Camera Module 3 NoIR Wide |
|---|---|---|---|---|
| Sensor | IMX708 | |||
| PIXELS | 11.9MP (4608 × 2592) | |||
| FOCUSING | I2C controller with auto-focus support | |||
| CMOS size | 7.4mm | |||
| Aperture | F1.8 | F2.2 | ||
| Focal length | 4.74mm | 2.75mm | ||
| Field of view | 75° | 120° | ||
| Night Vision function | - | Support * | - | Support * |
| Devices Support | Compatible with all Raspberry Pi boards (Specific cable is required to connect to Raspberry Pi Zero series) |
|||
| Note | * Infrared LED is required to provide Infrared lighting for night vision, please purchase separately. | |||
Comes with IMX708 Sensor, Highly Detailed & Realistic Imaging
Take photos smoothly without jamming, flexible and free
direct connect to Raspberry Pi different variants including 4B/3B+/3A+/3B/2B/B+/A+,
extra FPC cable is required for Zero / Zero 2 W series
Standard Version
Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi Zero 2W
Night Vision Version
Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi Zero 2W
Quick Overview
Raspberry Pi Camera Module 3
- OPTIONS Raspberry Pi Camera Module 3 x1

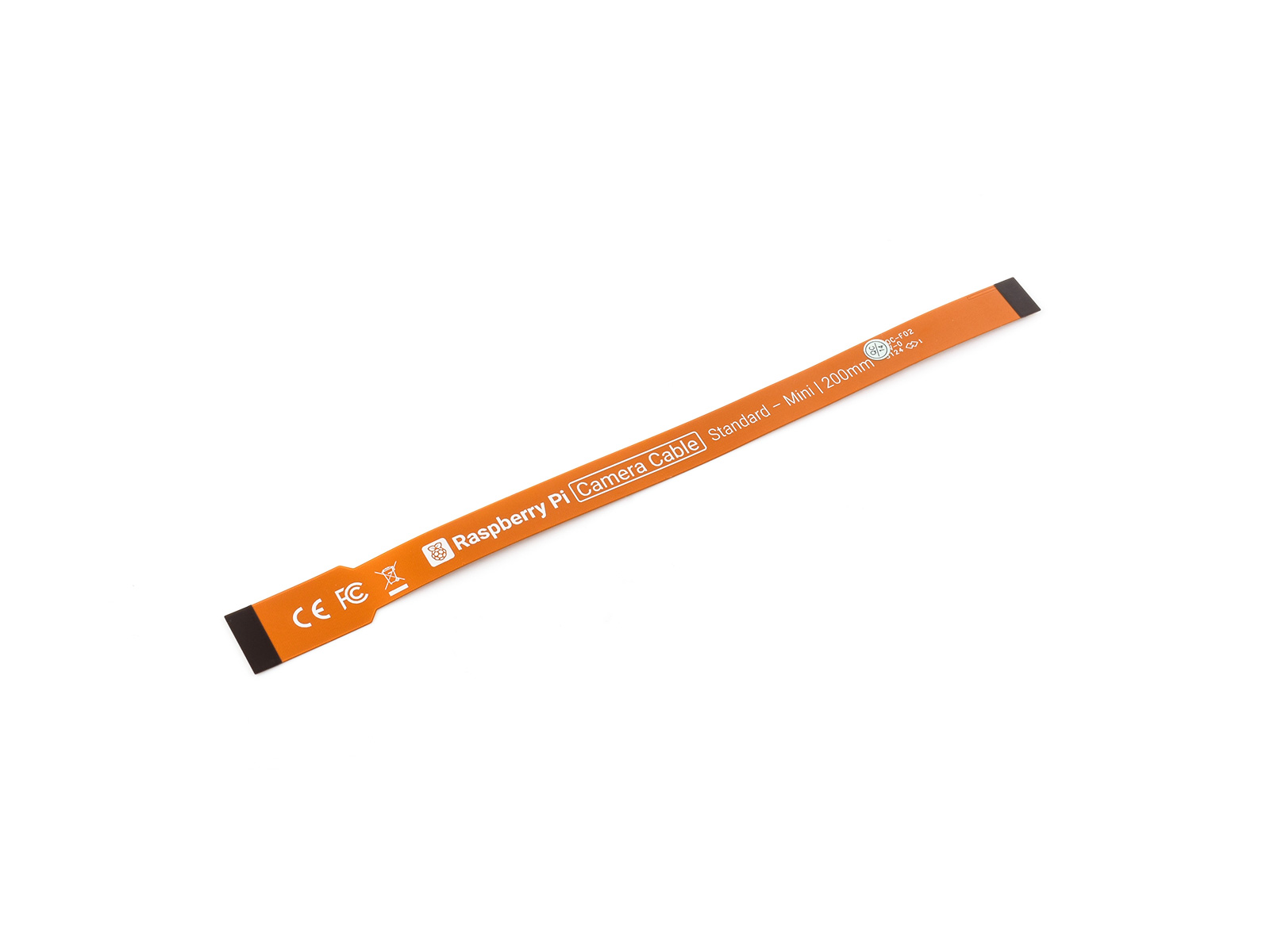

- 15-pin FFC (opposite sides contact) x1
Raspberry Pi Camera Module 3 NoIR
- OPTIONS Raspberry Pi Camera Module 3 NoIR x1
- 15-pin FFC (opposite sides contact) x1
