Raspberry Pi High Quality Camera, 12.3MP IMX477 Sensor, Supports C / CS Lenses

SKU: 18038
Part Number: Raspberry Pi HQ Camera
Brand: Raspberry Pi Foundation


Related Products:



Raspberry Pi High Quality Camera, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- and CS-mount Lenses
Raspberry Pi High Quality Camera

Higher Resolution & Sensitivity, Compatible with Raspberry Pi series boards

The Raspberry Pi High Quality Camera is the latest camera board from Raspberry Pi Foundation. It adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi series boards, offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than the existing Camera Module V2.

The Raspberry Pi High Quality Camera could be an ideal alternative for the Camera Module V2, suits industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.

Sensor IMX477R
12.3MP, 4056 (H) × 3040 (V)
7.9mm CMOS diagonal size
1.55µm (H) × 1.55µm (V) pixel size
Output RAW12 / 10 / 8, COMP8
Back focus Adjustable(12.5mm-22.4mm)
Lens Support C-mount / CS-mount (C-CS adapter included)
IR cut filter Integrated
Tripod mount 1/4″-20
Compliance FCC 47 CFR Part 15, Subpart B, Class B Digital Device
Electromagnetic Compatibility Directive (EMC) 2014/30/EU
Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
Higher resolution, better imaging effect

Compared to 8MP of normal Raspberry Camera, the High Quality Camera offers up to 12.3MP, along with nearly 50% greater area per pixel, delivering better imaging effect

with mounted lens

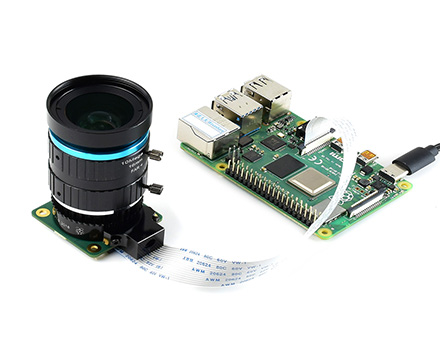

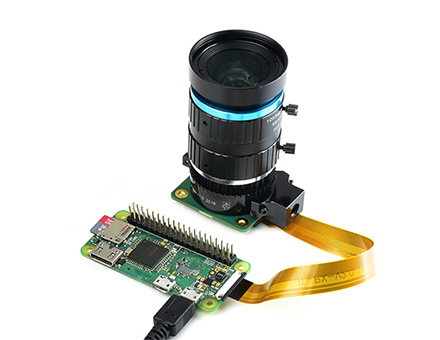

C-mount 16mm Telephoto Lens (C-CS adapter required)

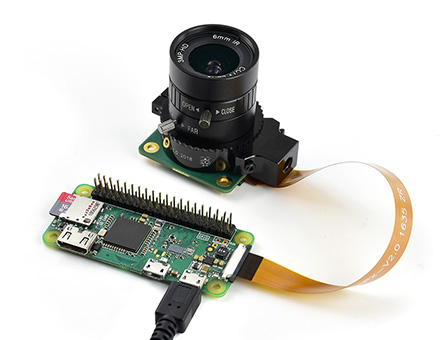

CS-mount 6mm Wide Angle Lens (C-CS adapter should be removed)

Lens Selection
6mm Wide Angle Lens

16mm Telephoto Lens

25mm Telephoto Lens

35mm Telephoto Lens

8-50mm Zoom Lens
Image format 1/2" 1" 2/3" 1" 1/2.3"
Focal length 6mm 16mm 25mm 35mm 8-50mm
Aperture F1.2 F1.4-16 F1.4-16 F1.7-16 F1.4
Mount CS-mount C-mount
Angle of view 63° 1"      44.6° × 33.6°
2/3"      30.0° × 23.2°
1/1.8"      24.7° × 18.6°
1/2"      21.8° ×16.4°
2/3" 20.2° × 15.1°
1/1.8" 16.5° × 12.4°
1/2" 14.5° × 10.5°
1" 20.9° × 15.8°
2/3" 14.4° × 10.8°
1/2" 10.5° × 7.9°
Back focus 7.53mm 17.53mm
Optical length - 67.53mm - - -
Distortion - 1"(-0.7%)
0.05% 0.35% -
M.O.D. 0.20m 0.20m 0.25m 0.30m 0.20m
Dimensions Φ30.00 × 34.00mm Φ39.00 × 50.00mm Φ34.00 × 34.00mm Φ35.00 × 34.00mm Φ40.00×68.30mm
Operation Manual aperture adjustment
Weight 53g 133.7g 82g 78g 148g

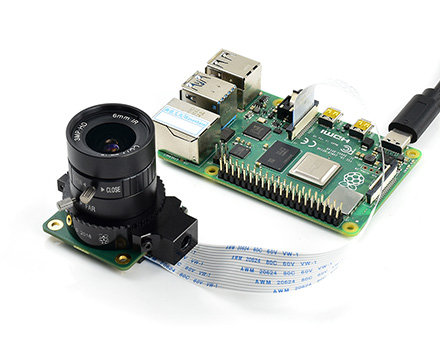

Working with Raspberry Pi
Hardware Overview
Outline Dimensions
Selection Guide
Part Number Pixels Sensor CMOS Size IR-CUT Filter Lens Support FoV (°) Aper-ture (F) Focal Length (mm) Dimen-sions (mm) For use with
Raspberry Pi HQ Camera 12.3MP IMX477 7.9mm integrated C/CS - - - 38*38 Raspberry Pi②, CM3/3+/4, Jetson Nano
IMX477 12.3MP Camera - - - 38*38 Raspberry Pi①, CM3/3+/4, Jetson Nano
IMX477-160 12.3MP Camera - 160 2.2 2.75 25*24
  1. The Raspberry Pi Supports two popular camera applications for the moment: Raspicam and libcamera-apps
    Raspicam —— the official default camera application
    libcamera-apps —— a small application kit based on libcamera, can be used as a substitute for Raspicam

  2. Raspberry Pi① —— supports libcamera-apps
    Raspberry Pi② —— supports both libcamera-apps and Raspicam

Weight: 0.042 kg

Quick Overview

  1. Raspberry Pi High Quality Camera main unit
  2. C-CS adapter
  3. Dust cap
  4. FFC ribbon
  5. Screwdriver
  6. Packing box
