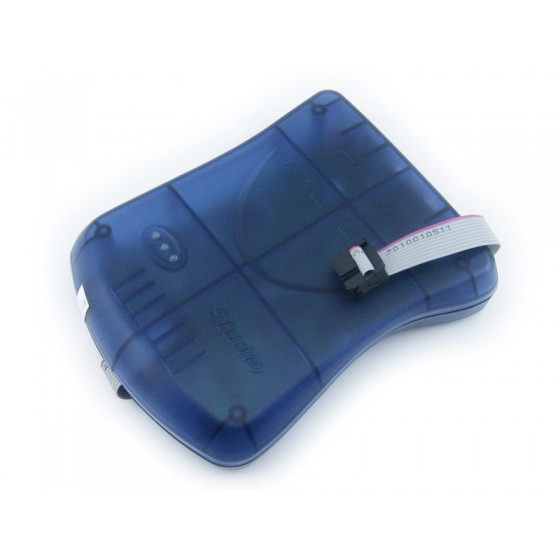

USB AVR JTAGICE XPII, AVR Programmers & Debuggers

SKU: 3150
Brand: Waveshare




  • Debugger & Programmer, compatible with JTAGICE mkII from ATMEL
  • Supports On-Chip Debugging and programming
  • Supports all AVR and AVR32 MCUs with On-Chip Debug capability, including XMEGA devices
  • Supports AVR Studio 4/5/6 or higher version (delivered with firmware for AVR Studio 5, can be updated to support other AVR Studio versions)


  • Supports debugging of all AVR and AVR32 devices with OCD
  • Supports programming of all AVR and AVR32 devices with OCD
  • On-Chip Debugging: Run, Single step, Breakpoints, etc.
  • Supports Assembler and HLL Source Level Debugging
  • Programming Interface to flash, eeprom, fuses and lockbits (not debugWIRE)
  • USB 1.1 and RS232 Interface to PC for Programming and Control
  • JTAG, PDI, debugWIRE Interface to target board
  • Regulated Power Supply for 9-15V DC Power
  • Can be powered from the USB bus
  • Target operating voltage range of 2.1V to 5.5V

Based on JTAGICE mkII from ATMEL
- Fully compatible with JTAGICE mkII, easy to use, stable and reliable

Based on JTAGICE mkII firmware
- Identified as JTAGICE mkII in AVRStudio, high speed debugging and programming

Upgradable firmware
- Firmware is upgradable to Support Future Devices
- Automatic Upgrade

Supported software
- AVR Studio 4/5/6, WINAVR(GCC) or IAR is used as front-end software
- Supports the program files generated by ICCAVR, CVAVR, IAR

Device Support
- Supports debugging and programming of all AVR and AVR32 devices with JTAG, PDI, debugWIRE Interface

Refer to AVR Studio 6, the following devices are supported:
AT32UC3A0128 AT32UC3A0256 AT32UC3A0512 AT32UC3A1128 AT32UC3A1256 AT32UC3A1512 AT32UC3A3128 AT32UC3A3128S AT32UC3A3256 AT32UC3A3256S AT32UC3A364 AT32UC3A364S AT32UC3A4128 AT32UC3A4128S AT32UC3A4256 AT32UC3A4256S AT32UC3A464 AT32UC3A464S AT32UC3B0128 AT32UC3B0256 AT32UC3B0512 AT32UC3B064 AT32UC3B1128 AT32UC3B1256 AT32UC3B1512 AT32UC3B164 AT32UC3C0128C AT32UC3C0256C AT32UC3C0512C AT32UC3C064C AT32UC3C1128C AT32UC3C1256C AT32UC3C1512C AT32UC3C164C AT32UC3C2128C AT32UC3C2256C AT32UC3C2512C AT32UC3C264C AT32UC3L0128 AT32UC3L016 AT32UC3L0256 AT32UC3L032 AT32UC3L064 ATUC128D3 ATUC128D4 ATUC128L3U ATUC128L4U ATUC256L3U ATUC256L4U ATUC64D3 ATUC64D4 ATUC64L3U ATUC64L4U
AVR Mega
AT90CAN128 AT90CAN32 AT90CAN64 AT90PWM1 AT90PWM161 AT90PWM216 AT90PWM2B AT90PWM316 AT90PWM3B AT90PWM81 AT90USB1286 AT90USB1287 AT90USB162 AT90USB646 AT90USB647 AT90USB82 ATA5702M322 ATA5781 ATA5782 ATA5783 ATA5790 ATA5790N ATA5795 ATA5831 ATA5832 ATA5833 ATA6285 ATA6286 ATA6612C ATA6613C ATA6614Q ATA6616C ATA6617C ATA664251 ATmega128 ATmega1280 ATmega1281 ATmega1284 ATmega1284P ATmega1284RFR2 ATmega128A ATmega128RFA1 ATmega128RFR2 ATmega16 ATmega162 ATmega164A ATmega164P ATmega164PA ATmega165A ATmega165P ATmega165PA ATmega168 ATmega168A ATmega168P ATmega168PA ATmega168PB ATmega169A ATmega169P ATmega169PA ATmega16A ATmega16HVA ATmega16HVB ATmega16HVBrevB ATmega16M1 ATmega16U2 ATmega16U4 ATmega2560 ATmega2561 ATmega2564RFR2 ATmega256RFR2 ATmega32 ATmega324A ATmega324P ATmega324PA ATmega325 ATmega3250 ATmega3250A ATmega3250P ATmega3250PA ATmega325A ATmega325P ATmega325PA ATmega328 ATmega328P ATmega329 ATmega3290 ATmega3290A ATmega3290P ATmega3290PA ATmega329A ATmega329P ATmega329PA ATmega32A ATmega32C1 ATmega32HVB ATmega32HVBrevB ATmega32M1 ATmega32U2 ATmega32U4 ATmega48 ATmega48A ATmega48P ATmega48PA ATmega48PB ATmega64 ATmega640 ATmega644 ATmega644A ATmega644P ATmega644PA ATmega644RFR2 ATmega645 ATmega6450 ATmega6450A ATmega6450P ATmega645A ATmega645P ATmega649 ATmega6490 ATmega6490A ATmega6490P ATmega649A ATmega649P ATmega64A ATmega64C1 ATmega64HVE2 ATmega64M1 ATmega64RFR2 ATmega8 ATmega8515 ATmega8535 ATmega88 ATmega88A ATmega88P ATmega88PA ATmega88PB ATmega8A ATmega8HVA ATmega8U2
AVR Tiny
ATtiny13 ATtiny13A ATtiny1634 ATtiny167 ATtiny2313 ATtiny2313A ATtiny24 ATtiny24A ATtiny25 ATtiny26 ATtiny261 ATtiny261A ATtiny4313 ATtiny43U ATtiny44 ATtiny441 ATtiny44A ATtiny45 ATtiny461 ATtiny461A ATtiny48 ATtiny828 ATtiny84 ATtiny841 ATtiny84A ATtiny85 ATtiny861 ATtiny861A ATtiny87 ATtiny88
AVR Xmega
ATxmega128A1 ATxmega128A1U ATxmega128A3 ATxmega128A3U ATxmega128A4U ATxmega128B1 ATxmega128B3 ATxmega128C3 ATxmega128D3 ATxmega128D4 ATxmega16A4 ATxmega16A4U ATxmega16C4 ATxmega16D4 ATxmega16E5 ATxmega192A3 ATxmega192A3U ATxmega192C3 ATxmega192D3 ATxmega256A3 ATxmega256A3B ATxmega256A3BU ATxmega256A3U ATxmega256C3 ATxmega256D3 ATxmega32A4 ATxmega32A4U ATxmega32C3 ATxmega32C4 ATxmega32D3 ATxmega32D4 ATxmega32E5 ATxmega384C3 ATxmega384D3 ATxmega64A1 ATxmega64A1U ATxmega64A3 ATxmega64A3U ATxmega64A4U ATxmega64B1 ATxmega64B3 ATxmega64C3 ATxmega64D3 ATxmega64D4 ATxmega8E5

Supports all the different voltages and speed grade versions of the devices listed in the table above.
Check more supported devices : UC3, Mega, SAM , Tiny, Xmega

- On-Chip Debugging: Run, Single step, Breakpoints, etc. Allows the user to view the internal state of the device.
- High speed Debugging
- Programming Interface to flash, eeprom, fuses and lockbits (not debugWIRE)
- Low speed programming through ISP, or high speed programming through JTAG

Connecting to PC
Before connecting up the JTAGICE XPII for the first time, be sure to install the USB driver on the host computer. This is done automatically when installing the front-end software (Probably AVR Studio). The JTAGICE XPII can connect to the host PC through a USB cable or serial cable (to COM port on the PC)
- Each JTAGICE XPII has a unique ID, a PC could connects to several Devices at the same time
- USB Interface: use the PDIUSBD12, USB 1.1
- RS-232 Interface: use the 9-pin RS-232 cable. Make sure that no other software has control of the COM port where the JTAGICE XPII is connected.
The rear panel of the JTAGICE XPII houses the DC jack, power switch, USB and RS-232 connectors.


Connects to target board
Debugging Interface: JTAG, PDI, debugWIRE (SPI), depending on which interface the target devices with.
Programming Interface: JTAG, PDI, ISP (SPI), depending on which interface the target devices with.
The cable has to be changed according to the existed header on the target board. See Details displayed bellow.

  • Connecting to a JTAG target
    • Standard JTAG header, Using the default 10-pin JTAG cable directly
    • Custom JTAG header, Using 10-wire multicolour custom connector cable
  • Connecting to a PDI target
    • Using 10-wire multicolour custom connector cable
  • Connecting to a debugWIRE or ISP target
    • Standard 10-pin SPI header, Using 10-pin (JTAG) to 10-pin (SPI) probe adapter cable
    • Standard 6-pin SPI header, Using 10-pin (JTAG) to 6-pin (SPI) probe adapter cable
    • Custom SPI header, Using 10-wire multicolour custom connector cable

The figure 1, 2, 3 and 4 shows the header pinouts of different interfaces

  Figure 1. JTAG header pinout
JTAG header pinout
Figure 2. PDI header pinout
PDI header pinout

  Figure 3. 10-pin SPI header pinout
pinouts for 10-pin ISP Connector
Figure 4. 6-pin SPI header pinout
pinouts for 6-pin ISP Connector

Powering the JTAGICE XPII
- Operates using an external power supply providing 9-15V DC
- Can be powered directly from the USB bus
- The target board should be powered from Another Power Supply



Development resources:user guide, software, etc.

Weight: 0.431 kg

Quick Overview

  2. USB Cable x1
  3. RS-232 serial cable x1
  4. Spare 10-pin cable x1
  5. 10-pin (JTAG) to 6-pin (SPI) probe adapter cable x1
  6. 10-pin (JTAG) to 10-pin (SPI) probe adapter cable x1
  7. 10-wire multicolour custom connector cable x1

Note: 9-15V power supply adapter is NOT included.
