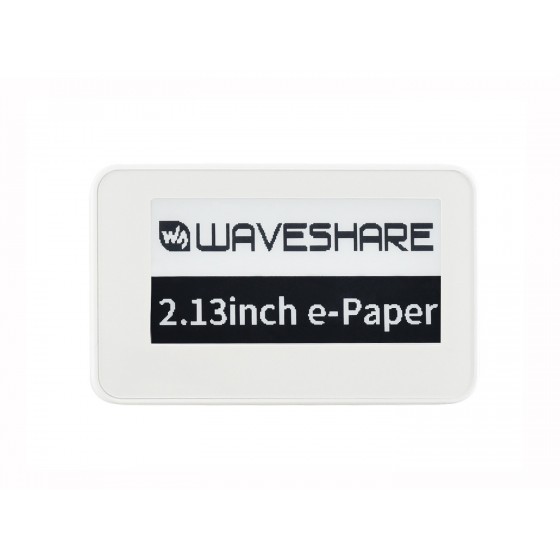

2.13inch Passive NFC-Powered e-Paper, No Battery, Wireless Powering & Data Transfer
2.13" NFC-Powered e-Paper

Adopts novel passive NFC technology
No battery required, no more battery life trouble

Wireless NFC-Powered Display Refreshing

Passive NFC solution, No Battery Required, No messy wiring, stable operation

How it works

To refresh the display content,
use a smart phone with NFC function, or an NFC reader,
close to the e-Paper for both wireless powering and data transfer

Refreshing Example

Refreshed By Smartphone, Comes With Android APP, As Easy As Swiping A Credit Card



Refreshed by ST25R3911B NFC Board

Recommended evaluation kit: 2.13inch NFC e-Paper Eval Kit

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Specifications


Power supply Wireless Grey scale 2
Display color Black / White Refresh time 2s (data transfer time is not included)
Dot pitch 0.194×0.194 Display size 49.70mm×21.75mm
Resolution 250×122 Outline dimension 65.35mm×40.05mm
Viewing angle >170°
Outline dimensions

Weight: 0.024 kg

Quick Overview

  1. 2.13inch NFC-Powered e-Paper x1
2.13inch NFC-Powered e-Paper
