7.3inch E6 Full Color E-Paper With Solid Wood Photo Frame For Raspberry Pi Zero, Ultra-long Standby, 800 × 480 Resolution, Batt. and Zero 2 WHC board are Optional
5.65″ - 13.3″, Raspberry Pi Pico 2

7.3inch E6 Full Color E-Paper With Solid Wood Photo Frame For Raspberry Pi Zero, Ultra-long Standby, 800 × 480 Resolution, Batt. and Zero 2 WHC board are Optional

$72.99 - $136.99
Raspberry Pi Zero 2 WHC
IncludedNOT Included
RTC Batt. + 3.7V Lithium Batt.
IncludedNOT Included
Share:

Details

7.3inch E6 Full Color E-Paper With Solid Wood Photo Frame For Raspberry Pi Zero, Ultra-long Standby, 800 × 480 Resolution, Batt. and Zero 2 WHC board are Optional
7.3″ Full color E-paper Display

7.3″ Full color E-paper Display with Solid Wood Photo Frame for Raspberry Pi

7.3inch E6 Full color E-Paper PhotoPainter , front view

  • Size7.3″
  • Resolution800 × 480
  • Viewing Angle>170°
  • Display ColorE6 Full Color

  • RTC ChipDS3231
  • UPSUninterruptible Power
  • Display PanelE-paper
  • ExperiencePaper-like

  • Display AdvantageEye Care, No Blue Light
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • HAT+ StandardImproves Interoperability

Version Options
7.3inch E6 Full color E-Paper PhotoPainter , front view

RPi-Zero-PhotoPainter-ACCE
the e-paper PhotoPainter only, without mainboard

7.3inch E6 Full color E-Paper PhotoPainter , front view

RPi-Zero2W-PhotoPainter
with Raspberry Pi Zero 2 WHC, pre-assembled inside the device

Features At A Glance
  • Adopts E Ink Spectra 6 (E6) technology, featuring high contrast and high color saturation
  • Supports six primary colors and employ Dithering technology to create vivid and saturated full color images
  • No backlight, keeps displaying last content for a long time even when power down
  • Onboard high-precision RTC chip for accurate time control
  • Simple solid wood photo frame, elegant and beautiful
  • Rotatable stand and hook hanger on the back, not limited to usage scenarios
  • Open source code, more freedom to customize functions
  • Adopts Raspberry Pi HAT+ standard
    • Improves interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
  • Onboard UPS circuit
    • I2C bus communication, supports real time monitoring of Batt. voltage, current, power, and remaining capacity, etc.
    • Onboard Batt. protection circuits: over charge/discharge protection, over current protection, and short circuit protection, more safe and stable
    • Onboard charge indicator for monitoring the Batt. operating status
Simple solid wood photo frame

High-quality solid wood frame and white edge, simple and elegant

7.3inch E6 Full color E-Paper PhotoPainter , with solid wood photo frame

Multi-functional stand
Stable placement, suitable for multiple scenarios
7.3inch E6 Full color E-Paper PhotoPainter, Multi-functional stand
7.3inch E6 Full color E-Paper PhotoPainter, Multi-functional stand

Supports Local Text-to-Image Generation
Supports Loading Offline AI Large Models, Enabling Text-to-Image Generation Without Network Access, Provides Pre-built Image, Execution Scripts, and AI Model Setup Steps

With Script Execution

7.3inch E6 Full color E-Paper PhotoPainter, Support Localized Text-to-Image Generation

Send Keywords Directly

7.3inch E6 Full color E-Paper PhotoPainter, Support Localized Text-to-Image Generation

Note: To use local text-to-image generation, the device must be connected to the mainboard.



Wall-mount hook design
Easy to hang on the wall, more efficient use of space
7.3inch E6 Full color E-Paper PhotoPainter, Wall-mount hook design
7.3inch E6 Full color E-Paper PhotoPainter, Wall-mount hook design

Supports simultaneous charging and discharging and uninterrupted power supply

It is able to charge the batt. and provide power output at the same time from external power supply. Automatically switch over to batt. output if external power supply is unavailable, keeps the system running without any trouble


Real time monitoring of module operating status

monitoring the batt. voltage, current, power, and remaining capacity via I2C. When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss

7.3inch E6 Full color E-Paper PhotoPainter , Real time monitoring of module operational status

More Details
7.3inch E6 Full color E-Paper PhotoPainter, onboard UPS

Onboard UPS
Ensures timely data storage during unexpected power loss

7.3inch E6 Full color E-Paper PhotoPainter, Ultra-wide viewing angle

Ultra-wide viewing angle
Side viewing is also clear

7.3inch E6 Full color E-Paper PhotoPainter, E-paper display

E-paper display
No blue light & more eye-care

7.3inch E6 Full color E-Paper PhotoPainter, Multi-functional stand

Multi-functional stand
For different scenarios

What's On Board
7.3inch E6 Full color E-Paper PhotoPainter, onboard components
  1. Raspberry Pi 40PIN header
    for connecting to the Raspberry Pi Zero series boards
  2. USB Type-C port
    for entire circuit power supply and Batt. charging
  3. Power button
    for entire circuit power supply ON/OFF (excluding Batt. charging)
  4. Charging indicator
    for indicating Batt. charging status
  5. Serial port debugging header
    Adapting Raspberry Pi UART pin header, for controlling the Raspberry Pi without an internet connection
  6. Lithium Batt. header
    PH2.0 connector for 3.7V Lithium Batt., supports charging and discharging
  1. INA219
    Voltage/current monitor
  2. RTC chip
    DS3231 high precision RTC chip
  3. RTC Lithium Batt. port
    for rechargeable Lithium Batt. with JST SH1.0 2PIN header (3V)
  4. E-paper display interface
  5. EEPROM
  6. ETA6003
    Batt. charge/discharge chip
  7. SCT12A0DHKR
    Voltage boost chip
Minimalist design with modern aesthetics
7.3inch E6 Full color E-Paper PhotoPainter, Minimalist design with modern aesthetics
7.3inch E6 Full color E-Paper PhotoPainter, Minimalist design with modern aesthetics

outline dimensions
7.3inch E6 Full color E-Paper PhotoPainter , outline dimensions

Quick Overview

RPi-Zero-PhotoPainter-ACCE

* the RTC batt. and 3.7V Lithium batt. are optional.
  1. RPi Zero PhotoPainter x1
  2. OPTIONAL RTC batt. (2PIN JST connector) and 3.7V 1500mA Lithium batt. x1
  3. Acrylic plate x1
  4. Screen protective film x1
  5. 3PIN squid cable x1
  6. CH343 USB UART Board (Type-C) x1
  7. Hook hanger (total 2PCS, 1PCS assembled) x1
  8. Triangle opening tool x1
  9. Screws and copper standoffs pack x1
7.3inch E6 Full color E-Paper PhotoPainter

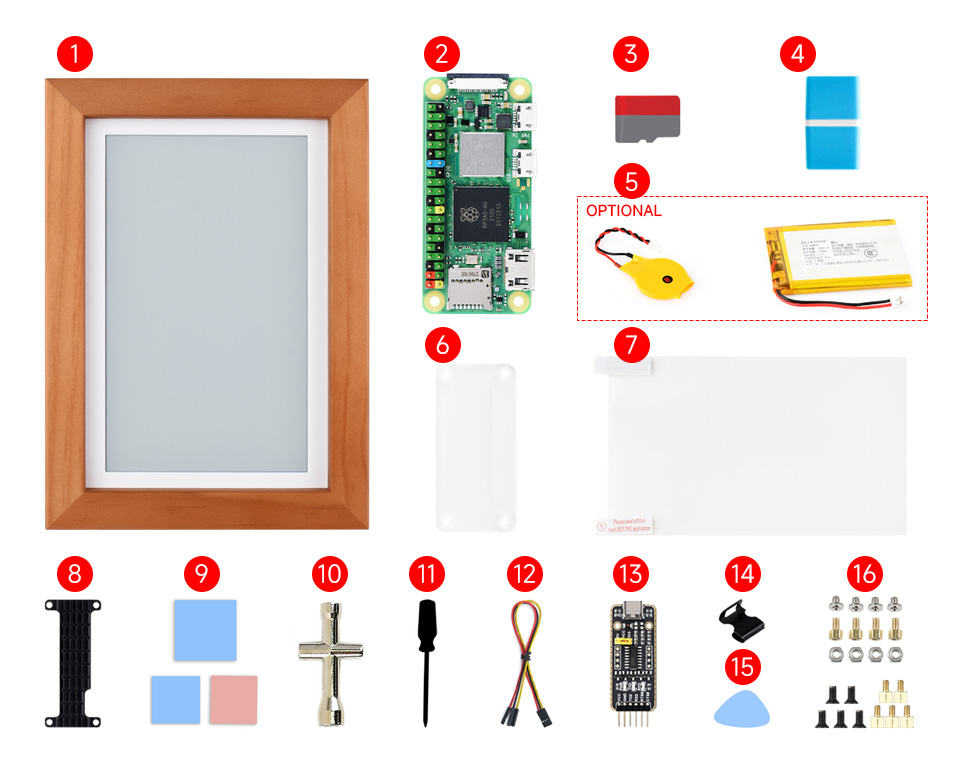

RPi-Zero2W-PhotoPainter

  • the RTC batt. and 3.7V Lithium batt. are optional.
  • Some accessories in the package are pre-assembled before shipment.
  1. RPi Zero PhotoPainter x1
  2. Raspberry Pi Zero 2 WHC x1
  3. 64GB TF card x1
  4. Card reader x1
  5. OPTIONAL RTC batt. (2PIN JST connector) and 3.7V 1500mA Lithium batt. x1
  6. Acrylic plate x1
  7. Screen protective film x1
  8. Zero-HEATSINK x1
  9. Thermal tapes 3PCS x1
  10. Mini cross wrench sleeve x1
  11. Screwdriver x1
  12. 3PIN squid cable x1
  13. CH343 USB UART Board (Type-C) x1
  14. Hook hanger (total 2PCS, 1PCS assembled) x1
  15. Triangle opening tool x1
  16. Screws and copper standoffs pack x1
7.3inch E6 Full color E-Paper PhotoPainter
