Details
Red / Yellow / Black / White 4-color Displaying
Adopts novel passive NFC technology
No Batt required, no more Batt life trouble
Passive NFC solution, No Batt Required, No messy wiring
To refresh the display content, use an NFC-enabled smartphone or an NFC reader close to the e-Paper for wireless power transfer and display refresh
* the specific APP or NFC reader is required for refreshing the e-paper screen.
Refreshed by NFC smartphone
Refreshed by ST25R3911B NFC Board
* the above videos have been sped up for demonstration purposes, the actual refresh rate is subject to the product specifications.
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...
| Power supply | NFC Wireless | Grey scale | 2 |
|---|---|---|---|
| Display color | Red / Yellow / Black / White | Refresh time | 16s (data transfer time is not included) |
| Dot pitch | 0.135 × 0.135 (mm) | Viewing angle | >170° |
| Resolution | 296 × 128 pixels | Display size | 66.89 × 29.05 (mm) |

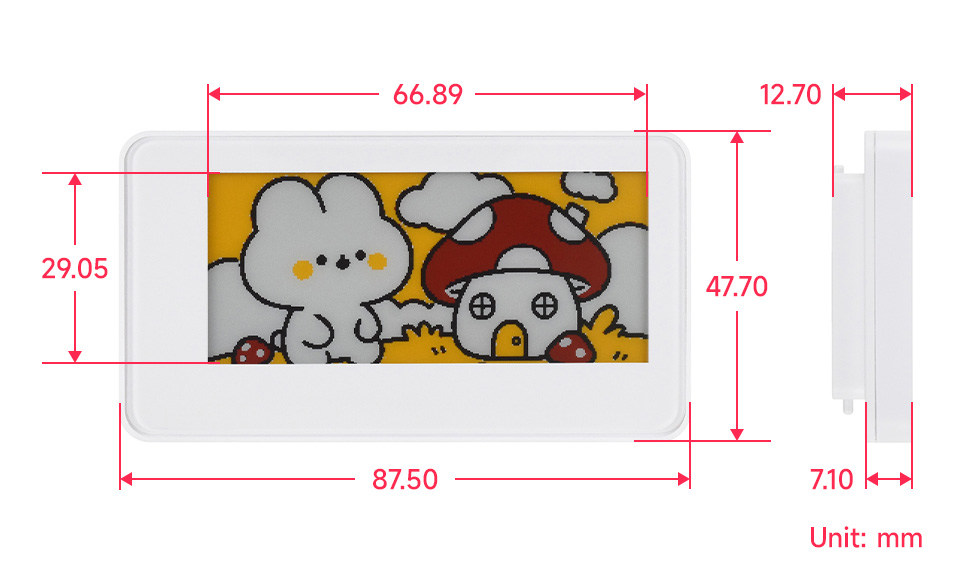

| Outline dimension | 87.50 × 47.70 (mm) | ||
Note: The following list includes only some tested phone models. It does not mean the APP only supports these models. For more compatibility details, please refer to the Wiki page.
| Phone Brand | Compatibility |
|---|---|
| Redmi | √ |
| Xiaomi | √ |
| Huawei (Android) | √ |
|
Huawei
(HarmonyOS, Android-compatible version) |
√ |
| OnePlus | √ |
| OPPO | √ |
| VIVO | √ |
| Model | Display color | Resolution | Display size (mm) | Outline dimension (mm) | Refresh time | Phone APP | case |
|---|---|---|---|---|---|---|---|
| 1.54inch NFC-Powered e-Paper (BW) | Red / Black / White | 200 × 200 | 27.00 × 27.00 | 47.84 × 41.28 | 8s | √ | √ |
| 1.54inch NFC-Powered e-Paper (G) | Red / Yellow / Black / White | 200 × 200 | 27.00 × 27.00 | 47.84 × 41.28 | 15s | √ | √ |
| 2.13inch NFC-Powered e-Paper | Black / White | 250 × 122 | 23.70 × 48.55 | 65.35 × 40.05 | 2s | √ | √ |
| 2.13inch NFC-Powered e-Paper (G) | Red / Yellow / Black / White | 250 × 122 | 23.70 × 48.55 | 65.35 × 40.05 | 16s | √ | √ |
| 2.7inch NFC-Powered e-Paper Module | Black / White | 264 × 176 | 57.29 × 38.19 | 84.50 × 47.50 | 6s | √ | × |
| 2.9inch NFC-Powered e-Paper | Black / White | 296 × 128 | 66.89 × 29.05 | 87.50 × 47.70 | 2s | √ | √ |
| 2.9inch NFC-Powered e-Paper (G) | Red / Yellow / Black / White | 296 × 128 | 66.89 × 29.05 | 87.50 × 47.70 | 16s | √ | √ |
| 4.2inch NFC-Powered e-Paper | Black / White | 400 × 300 | 84.80 × 63.60 | 105.00 × 94.10 | 4s | √ | √ |
Weight: 0.03 kg
Quick Overview

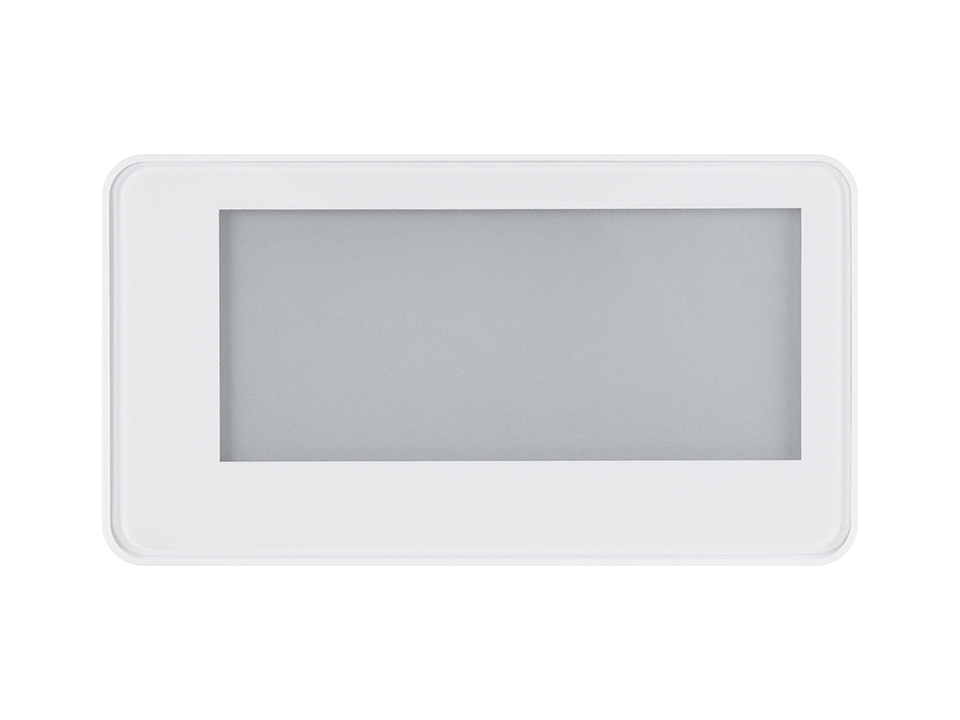

2.9inch NFC-Powered e-Paper (G) x1
