3inch e-Paper (G) raw display, 400 × 168, SPI Interface

SKU: 22506
Part Number: 3inch e-Paper (G)
Brand: Waveshare

$12.99
$12.3910+
$12.0950+
$11.97100+

Related Products:

Description

Details

3inch e-Paper (G) raw display, 400 × 168, SPI Interface
3″ e-Paper (G)

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

  • Size3″
  • Resolution400×168
  • Viewing Angle>170°
  • Display ColorRed/Yellow/Black/White
  • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
Features at a glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)
Specifications
operating voltage 3.3V display color Red/Yellow/Black/White
interface 3-wire SPI, 4-wire SPI grey scale 2
outline dimensions 86.4 × 39.2 × 0.85mm full refresh time 12s
display size 70.4 × 29.568mm refresh power <60mW (typ.)
DOT PITCH 0.176 × 0.176mm standby current <0.01uA (almost none)
RESOLUTION 400×168 pixels viewing angle >170°
Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

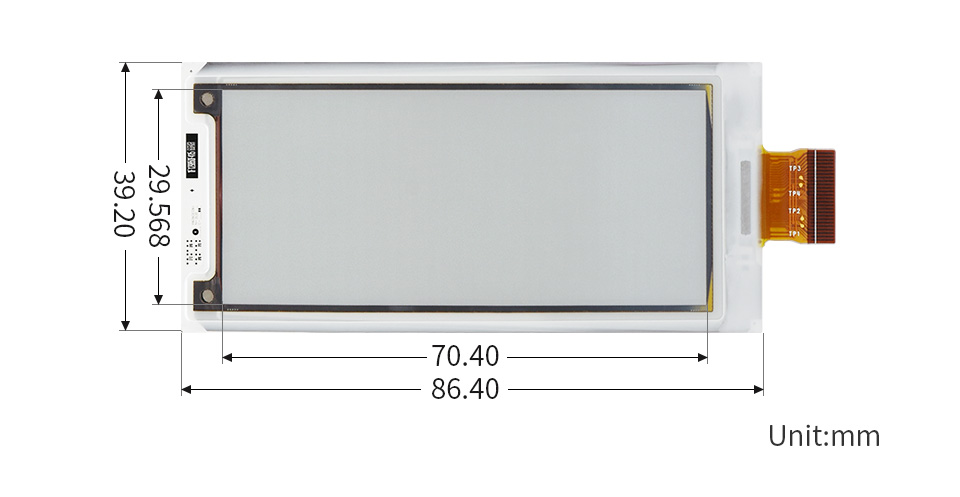

Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

Part NumberColorsGrey ScaleResolutionDisplay size (mm)Outline Dimension (mm)Full Refresh Time (s)Partial RefreshFlexibleInterface
1.02inch e-Paper black, white 2 128×80 21.76 × 14.00 32.57 × 18.60 × 0.98 2   SPI
1.54inch e-Paper black, white 2 200×200 27.60 × 27.60 37.32 × 31.80 × 1.05 2   SPI
1.54inch e-Paper (B) red, black, white 2 200×200 27.60 × 27.60 37.32 × 31.80 × 1.05 14     SPI
1.54inch e-Paper (C) yellow, black, white 2 152×152 27.51 × 27.51 37.30 × 31.80 × 0.98 27     SPI
1.64inch e-Paper (G) red, yellow, black, white 2 168×168 29.568 × 29.568 45.5 × 36.4 × 0.91 12     SPI
2.13inch e-Paper black, white 2 250×122 48.55 × 23.71 59.20 × 29.20 × 1.05 2   SPI
2.13inch e-Paper (B) red, black, white 2 250×122 48.55 × 23.71 59.20 × 29.20 × 0.98 15     SPI
2.13inch e-Paper (C) yellow, black, white 2 212×104 48.55 × 23.71 59.20 × 29.20 × 0.98 15     SPI
2.13inch e-Paper (D) black, white 2 212×104 48.55 × 23.71 59.20 × 29.20 × 0.30 2 SPI
2.36inch e-Paper (G) red, yellow, black, white 2 296×168 52.096 × 29.568 68.1 × 37.9 × 0.85 12     SPI
2.66inch e-Paper black, white 2 296×152 30.704 × 60.088 36.304 × 71.820 × 1.00 6   SPI
2.66inch e-Paper (B) red, black, white 2 296×152 30.704 × 60.088 36.304 × 71.820 × 1.00 15     SPI
2.7inch e-Paper black, white 4 264×176 57.29 × 38.19 70.42 × 45.80 × 0.98 6     SPI
2.7inch e-Paper (B) red, black, white 2 264×176 57.29 × 38.19 70.42 × 45.80 × 0.98 15     SPI
2.9inch e-Paper black, white 2 296×128 66.89 × 29.05 79.00 × 36.70 × 1.05 2   SPI
2.9inch e-Paper (B) red, black, white 2 296×128 66.89 × 29.05 79.00 × 36.70 × 1.18 15     SPI
2.9inch e-Paper (C) yellow, black, white 2 296×128 66.89 × 29.05 79.00 × 36.70 × 1.18 15     SPI
2.9inch e-Paper (D) black, white 2 296×128 66.90 × 29.06 79.00 × 36.70 × 0.34 2 SPI
3inch e-Paper (G) red, yellow, black, white 2 400×168 70.4 × 29.568 86.4 × 39.2 × 0.85 12     SPI
3.52inch e-Paper black, white 2 360×240 74.51 × 49.67 84.70 × 54.41 × 1.18 1.5     SPI
3.7inch e-Paper black, white 4 480×280 47.32 × 81.12 54.90 × 93.30 × 0.78 3   SPI
4.01inch e-Paper (F) 7-Color 2 640×400 86.40 × 54.00 96.80 × 68.70 × 0.91 30     SPI
4.2inch e-Paper black, white 4 400×300 84.80 × 63.60 91.00 × 77.00 × 1.18 4     SPI
4.2inch e-Paper (B) red, black, white 2 400×300 84.80 × 63.60 90.10 × 77.00 × 1.18 15     SPI
4.2inch e-Paper (C) yellow, black, white 2 400×300 84.80 × 63.60 90.10 × 77.00 × 1.18 15     SPI
4.37inch e-Paper (G) red, yellow, black, white 2 512×368 90.11 × 64.77 99.5 × 79.5 × 0.85 14     SPI
5.65inch e-Paper (F) 7-Color 2 600×448 114.9 × 85.8 125.4 × 99.5 × 0.91 <35     SPI
5.83inch e-Paper black, white 2 648×480 119.232 × 88.320 125.40 × 99.50 × 1.18 5     SPI
5.83inch e-Paper (B) red, black, white 2 648×480 119.232 × 88.320 125.40 × 99.50 × 1.18 20     SPI
6inch HD e-Paper black, white 16 1448×1072 122.40 × 90.60 138.40 × 101.80 × 1.01 <1   Parallel port
7.3inch e-Paper (F) 7-Color 2 800×480 160 × 96 170.2 × 111.2 × 0.91 35     SPI
7.3inch e-Paper (G) red, yellow, black, white 2 800×480 160 × 96 170.2 × 111.2 × 0.91 16     SPI
7.5inch e-Paper black, white 2 800×480 163.20 × 97.92 170.20 × 111.20 × 1.18 5     SPI
7.5inch e-Paper (B) red, black, white 2 800×480 163.20 × 97.92 170.20 × 111.20 × 1.18 16     SPI
7.5inch e-Paper (G) black, white 2 800×480 163.20 × 97.92 177.20 × 118.20 × 2.00 5     SPI
7.5inch HD e-Paper (B) red, black, white 2 880×528 163.24 × 97.94 170.20 × 111.20 × 1.25 21     SPI
7.5inch e-Paper (C) yellow, black, white 2 640×384 163.20 × 97.92 170.20 × 111.20 × 1.18 16     SPI
7.8inch e-Paper black, white 16 1872×1404 158.18 × 118.64 173.80 × 127.60 × 0.78 <1   Parallel port
9.7inch e-Paper black, white 16 1200×825 202.8 × 139.43 218.80 × 156.425 × 1.15 <1   Parallel port
10.3inch e-Paper black, white 16 1872×1404 209.66 × 157.25 216.70 × 174.40 × 0.78 <1   Parallel port
10.3inch e-Paper (D) black, white 16 1872×1404 209.66 × 157.25 227.70 × 165.80 × 0.647 <1 Parallel port
12.48inch e-Paper black, white 2 1304×984 252.98 × 190.90 261.50 × 211.00 × 0.30 <8     SPI
12.48inch e-Paper (B) red, black, white 2 1304×984 252.98 × 190.90 261.40 × 211.00 × 1.20 37     SPI
13.3inch e-Paper black, white 16 1600×1200 270.40 × 202.80 285.80 × 213.65 × 0.78 <1   Parallel port

e-Paper raw panels comparing

Weight: 0.006 kg
