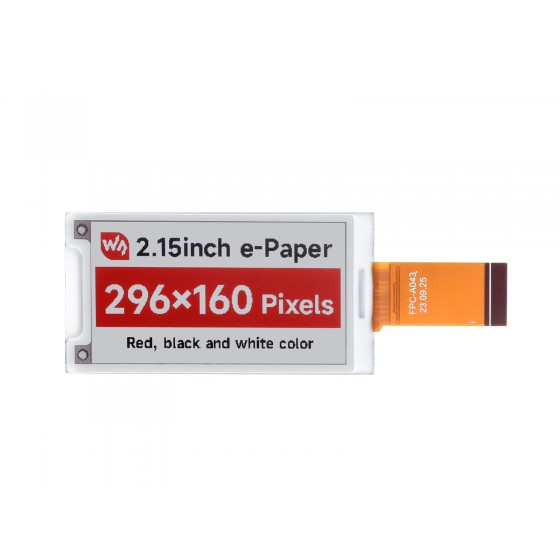

2.15inch E-Paper Display (B), E-Ink Display, 296x160, Red/Black/White, SPI Interface

SKU:28815
Part No.:2.15inch e-Paper (B)
Brand:Waveshare

$5.99
PriceQuantity
$5.5910+
$5.3950+
$5.31100+
Description

Details

2.15inch e-Paper display (B), e-ink display, 296x160, Red/Black/White, SPI Interface
2.15″ e-Paper (B)

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

2.15inch e-Paper display (B), front view
Note: the driver board is optional, please refer to the Package Content for detailed part list


  • Size2.15″
  • Resolution296×160
  • Viewing Angle>170°
  • Display ColorRed/Black/White
  • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • HAT+ StandardImproves interoperability
Version Options
2.15inch e-Paper (B)

2.15inch e-Paper (B)
raw display, without driver board

2.15inch e-Paper HAT+ (B)

2.15inch e-Paper HAT+ (B)
with driver board


Features at a glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / RDK X3 / Arduino / STM32)
  • Optional for e-Paper driver board:
    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano, RDK X3
    • Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
    • Adapting SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32, etc.
    • Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications
operating voltage Raw display: 3.3V display color Red/Black/White
with driver board: 3.3V/5V
interface 3-wire SPI, 4-wire SPI grey scale 2
outline dimensions Raw display: 60.8 × 31.8 × 1.00 (mm) full refresh time 23s
with driver board: 65 × 34 (mm)
display size 48.10 × 26 (mm) refresh power <15mW
DOT PITCH 0.1625 × 0.1625 (mm) standby current <0.01uA (almost none)
RESOLUTION 296 × 160 pixels viewing angle >170°
Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.


Standard Raspberry Pi 40PIN GPIO Header

compatible with Raspberry Pi series boards, Jetson Nano, RDK X3

2.15inch e-Paper display (B) with driver board, onboard standard Raspberry Pi 40PIN GPIO header

* for reference only, the Raspberry Pi in the picture is NOT included.


Optional for e-Paper driver board

Onboard SPI Control Interface, For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

2.15inch e-Paper display (B) with driver board, onboard SPI control interface
VCC Power (3.3V / 5V input)
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output pin

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

2.15inch e-Paper display (B) with driver board, onboard voltage translator

2.15inch e-Paper display (B) with driver board, supports Raspberry Pi HAT+ standard

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...


supported driver boards for raw display
2.15inch e-apper (B) with driver board
2.15inch e-Paper HAT+ (B)
Click here to purchase
Universal e-Paper Raw Panel Driver HAT
e-Paper Driver HAT
Click here to purchase

Outline dimensions

2.15inch e-Paper (B)

2.15inch e-Paper display (B), outline dimensions

2.15inch e-Paper HAT+ (B)

2.15inch e-Paper display (B) and driver board, outline dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

Part Number Colors Grey Scale Resolution Display size (mm) Outline Dimension (mm) Full Refresh Time (s) Partial Refresh Flexible Interface
1.02inch e-Paper black, white 2 128×80 21.76 × 14.00 32.57 × 18.60 × 0.98 2   SPI
1.54inch e-Paper black, white 2 200×200 27.60 × 27.60 37.32 × 31.80 × 1.05 2   SPI
1.54inch e-Paper (B) red, black, white 2 200×200 27.60 × 27.60 37.32 × 31.80 × 1.05 14     SPI
1.54inch e-Paper (C) yellow, black, white 2 152×152 27.51 × 27.51 37.30 × 31.80 × 0.98 27     SPI
1.64inch e-Paper (G) red, yellow, black, white 2 168×168 29.568 × 29.568 45.5 × 36.4 × 0.91 12     SPI
2.13inch e-Paper black, white 2 250×122 48.55 × 23.71 59.20 × 29.20 × 1.05 2   SPI
2.13inch e-Paper (B) red, black, white 2 250×122 48.55 × 23.70 59.20 × 29.20 × 0.98 15     SPI
2.13inch e-Paper (C) yellow, black, white 2 212×104 48.55 × 23.70 59.20 × 29.20 × 0.98 15     SPI
2.13inch e-Paper (D) black, white 2 212×104 48.55 × 23.70 59.20 × 29.20 × 0.30 2 SPI
2.13inch e-Paper (G) red, yellow, black, white 2 250×122 48.55 × 23.70 59.20 × 29.20 × 1.00 25     SPI
2.15inch e-Paper (B) red, black, white 2 296×160 48.10 × 26.00 60.8 × 31.8 × 1.00 23     SPI
2.15inch e-Paper (G) red, yellow, black, white 2 296×160 48.10 × 26.00 60.8 × 31.8 × 1.00 20     SPI
2.36inch e-Paper (G) red, yellow, black, white 2 296×168 52.096 × 29.568 68.1 × 37.9 × 0.85 12     SPI
2.66inch e-Paper black, white 2 296×152 30.704 × 60.088 36.304 × 71.820 × 1.00 6   SPI
2.66inch e-Paper (B) red, black, white 2 296×152 30.704 × 60.088 36.304 × 71.820 × 1.00 15     SPI
2.66inch e-Paper (G) red, yellow, black, white 2 360×184 60.05 × 30.69 72.59 × 37.11 × 1.00 26     SPI
2.7inch e-Paper black, white 4 264×176 57.29 × 38.19 70.42 × 45.80 × 0.98 6   SPI
2.7inch e-Paper (B) red, black, white 2 264×176 57.29 × 38.19 70.42 × 45.80 × 0.98 15     SPI
2.9inch e-Paper black, white 4 296×128 66.89 × 29.05 79.00 × 36.70 × 1.05 3   SPI
2.9inch e-Paper (B) red, black, white 2 296×128 66.90 × 29.06 79.00 × 36.70 × 1.20 14   SPI
2.9inch e-Paper (C) yellow, black, white 2 296×128 66.89 × 29.05 79.00 × 36.70 × 1.18 15     SPI
2.9inch e-Paper (D) black, white 2 296×128 66.90 × 29.06 79.00 × 36.70 × 0.34 2 SPI
3inch e-Paper (G) red, yellow, black, white 2 400×168 70.4 × 29.568 86.4 × 39.2 × 0.85 12     SPI
3.52inch e-Paper black, white 2 360×240 74.51 × 49.67 84.70 × 54.41 × 1.18 1.5     SPI
3.52inch e-Paper (B) red, black, white 2 360×240 74.51 × 49.67 84.70 × 54.41 × 0.85 16     SPI
3.7inch e-Paper black, white 4 480×280 47.32 × 81.12 54.90 × 93.30 × 0.78 3   SPI
4inch e-Paper (E) E6 full color 2 600×400 84.6 × 56.4 99.00 × 66.00 × 0.85 19     SPI
4.01inch e-Paper (F) 7-Color 2 640×400 86.40 × 54.00 96.80 × 68.70 × 0.91 30     SPI
4.2inch e-Paper black, white 4 400×300 84.80 × 63.60 91.00 × 77.00 × 1.18 5   SPI
4.2inch e-Paper (B) red, black, white 2 400×300 84.80 × 63.60 91.00 × 77.00 × 1.05 15     SPI
4.26inch e-Paper black, white 4 800×480 92.8 × 55.68 129.33 × 62.37 × 0.93 4   SPI
4.37inch e-Paper (G) red, yellow, black, white 2 512×368 90.11 × 64.77 99.5 × 79.5 × 0.85 14     SPI
5.65inch e-Paper (F) 7-Color 2 600×448 114.9 × 85.8 125.4 × 99.5 × 0.91 <35     SPI
5.79inch e-Paper black, white 4 792×272 139.00 × 47.74 150.92 × 56.94 × 1.00 3.5   SPI
5.79inch e-Paper (B) red, black, white 2 792×272 139.00 × 47.74 150.92 × 56.94 × 1.00 24     SPI
5.79inch e-Paper (G) red, yellow, black, white 2 792×272 139.00 × 47.74 150.92 × 56.94 × 1.00 21     SPI
5.83inch e-Paper black, white 2 648×480 119.232 × 88.320 125.40 × 99.50 × 1.18 5     SPI
5.83inch e-Paper (B) red, black, white 2 648×480 119.232 × 88.320 125.40 × 99.50 × 1.18 20     SPI
6inch HD e-Paper black, white 16 1448×1072 122.40 × 90.60 138.40 × 101.80 × 1.01 <1   Parallel port
7.3inch e-Paper (E) E6 full color 2 800×480 160 × 96 170.2 × 111.2 × 0.91 12     SPI
7.3inch e-Paper (F) 7-Color 2 800×480 160 × 96 170.2 × 111.2 × 0.91 35     SPI
7.3inch e-Paper (G) red, yellow, black, white 2 800×480 160 × 96 170.2 × 111.2 × 0.91 16     SPI
7.5inch e-Paper black, white 2 800×480 163.20 × 97.92 170.20 × 111.20 × 1.18 5   SPI
7.5inch e-Paper (B) red, black, white 2 800×480 163.20 × 97.92 170.20 × 111.20 × 1.18 26   SPI
7.5inch e-Paper (G) black, white 2 800×480 163.20 × 97.92 177.20 × 118.20 × 2.00 5   SPI
7.5inch HD e-Paper (B) red, black, white 2 880×528 163.24 × 97.94 170.20 × 111.20 × 1.25 21     SPI
7.5inch e-Paper (C) yellow, black, white 2 640×384 163.20 × 97.92 170.20 × 111.20 × 1.18 16     SPI
7.8inch e-Paper black, white 16 1872×1404 158.18 × 118.64 173.80 × 127.60 × 0.78 <1   Parallel port
9.7inch e-Paper black, white 16 1200×825 202.8 × 139.43 218.80 × 156.425 × 1.15 <1   Parallel port
10.3inch e-Paper black, white 16 1872×1404 209.66 × 157.25 216.70 × 174.40 × 0.78 <1   Parallel port
10.3inch e-Paper (D) black, white 16 1872×1404 209.66 × 157.25 227.70 × 165.80 × 0.647 <1 Parallel port
10.3inch e-Paper (G) black, white 16 1872×1404 209.66 × 157.25 225.70 × 183.40 × 2.00 <1   Parallel port
12.48inch e-Paper black, white 2 1304×984 252.98 × 190.90 261.50 × 211.00 × 0.30 <8     SPI
12.48inch e-Paper (B) red, black, white 2 1304×984 252.98 × 190.90 261.40 × 211.00 × 1.20 37     SPI
13.3inch e-Paper black, white 16 1600×1200 270.40 × 202.80 285.80 × 213.65 × 0.78 <1   Parallel port
13.3inch e-Paper (B) red, black, white 2 960×680 275.52 × 195.16 286.32 × 212.26 × 1.20 22   SPI
13.3inch e-Paper (K) black, white 4 960×680 275.52 × 195.16 286.32 × 212.26 × 1.20 5   SPI
e-Paper raw panels comparing

Weight: 0.004 kg

Quick Overview

2.15inch e-Paper (B)

2.15inch e-Paper (B) x1

2.15inch e-Paper (B)

2.15inch e-Paper HAT+ (B)

  1. 2.15inch e-Paper HAT+ (B) x1
  2. GH1.25 9PIN cable x1
  3. Screws pack x1
