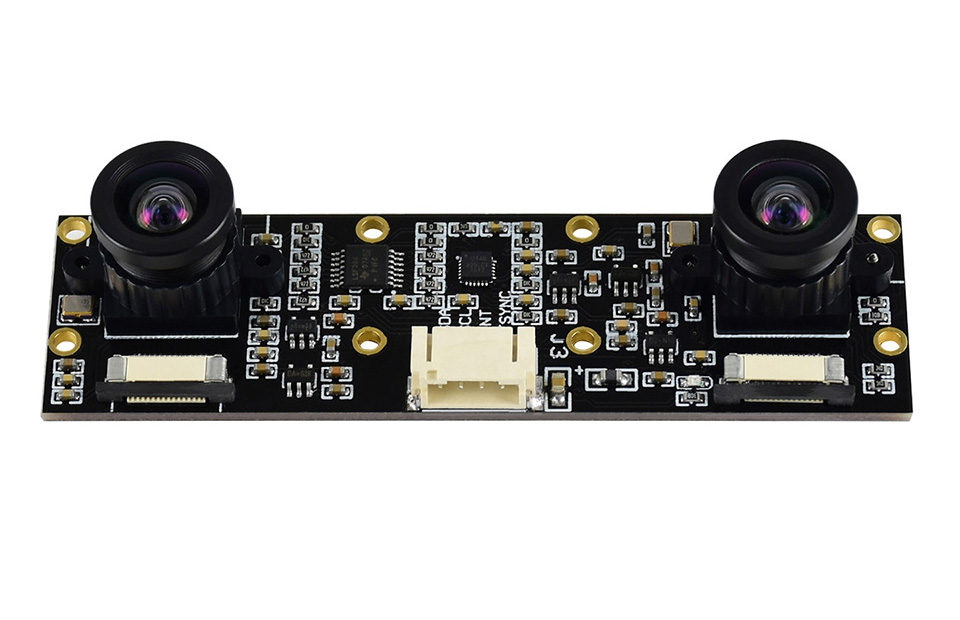

Binocular Camera Module, Dual IMX219, 8 Megapixels, Stereo Vision, Depth Vision

Overview

This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.

The module supports NVIDIA Jetson Nano Developer Kit B01 version, Jetson Xavier NX Developer Kit, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.

Specifications

  • 8 Megapixels
  • Sensor: IMX219
  • Resolution: 3280 × 2464 (per camera)
  • Lens specifications:
    • CMOS size: 1/4inch
    • Focal Length: 2.6mm
    • Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
    • Distortion: <1%
    • Baseline Length: 60mm
  • ICM20948:
    • Accelerometer:
      • Resolution: 16-bit
      • Measuring Range (configurable): ±2, ±4, ±8, ±16g
      • Operating Current: 68.9uA
    • Gyroscope:
      • Resolution: 16-bit
      • Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec
      • Operating Current: 1.23mA
    • Magnetometer:
      • Resolution: 16-bit
      • Measuring Range: ±4900μT
      • Operating Current: 90uA
  • Dimension: 24mm × 85mm

Applications

AI vision applications like depth vision and stereo vision.

Example

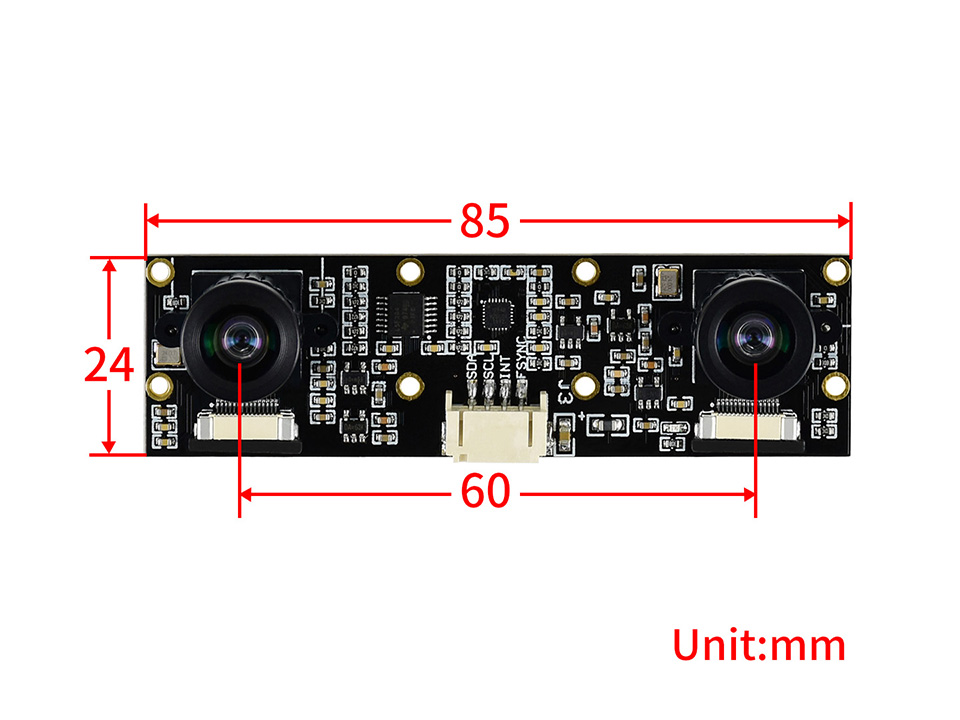

IMX219-83 Stereo Camera dimensions

Note: for reference only, Jetson Nano Developer Kit (B01) is NOT included.

Dimensions

IMX219-83 Stereo Camera dimensions

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-83_Stereo_Camera

Selection Guide

ProductPixelsSensorInfraredCameraAngle of View (diagonal) (degree)Aperture (F)Focal Length (mm)PCBASuit for
RPi Camera V2 8 Mega IMX219 × 1 62.2 2.0 3.04 √ Raspberry Pi②, CM3/3+/4,
Jetson Nano, Jetson Xavier NX
IMX219-D160 × 1 160 2.35 3.15 ×
RPi NoIR Camera V2 √ 1 62.2 2.0 3.04 √ Raspberry Pi②, CM3/3+/4,
Jetson Nano
IMX219-77 Camera × 1 79.3 2.0 2.85 √ Raspberry Pi①, CM3/3+/4,
Jetson Nano, Jetson Xavier NX
IMX219-77IR Camera √ 1 79.3 2.0 2.85 √
IMX219-120 Camera × 1 120 2.0 1.79 √
IMX219-160 Camera × 1 160 2.35 3.15 √
IMX219-160IR Camera √ 1 160 2.35 3.15 √
IMX219-160 IR-CUT Camera √ 1 162 2.7 1.75 √
IMX219-170 Camera × 1 170 2.4 2.2 √
IMX219-200 Camera × 1 200 2.0 0.87 √
IMX219-83-Stereo-Camera × 2 83 2.4 2.6 √ CM3/3+/4, Jetson Nano (B01),
Jetson Xavier NX
  1. The Raspberry Pi Supports two popular camera applications for the moment: Raspicam and libcamera-apps
    Raspicam —— the official default camera application
    libcamera-apps —— a small application kit based on libcamera, can be used as a substitute for Raspicam
  2. Raspberry Pi① —— supports libcamera-apps
    Raspberry Pi② —— supports both libcamera-apps and Raspicam
  3. The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs
  4. Jetson Nano —— supports both Jetson Nano Developer Kit (B01) and Jetson Nano 2GB Devekoper Kit
    Jetson Nano (B01) —— supports Jetson Nano Developer Kit (B01) only
    Jetson Xavier NX —— supports Jetson Xavier NX Developer Kit

Weight: 0.023 kg

Quick Overview

  1. IMX219-83 Stereo Camera x1
  2. FPC 15pin 2PCS x1
  3. FPC 15pin to 20pin 2PCS x1
  4. PH2.0 4PIN wire x1
