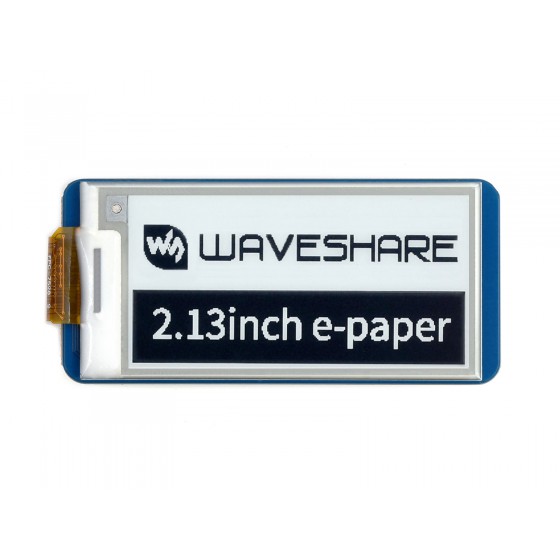

2.13inch E-Paper E-Ink Display Module for Raspberry Pi Pico, 250×122, Black / White, SPI

SKU: 19406
Part Number: Pico-ePaper-2.13
Brand: Waveshare

$16.99
$15.9910+
$15.4950+
$15.29100+

Description

Details

2.13inch e-Paper E-Ink Display Module for Raspberry Pi Pico, 250×122 pixels, Black / White, SPI Interface
2.13" e-Paper Module for Pico

partial refresh support, low power, wide viewing angle, paper-like effect

Ideal for price tags, shelf labels, industrial instruments...

  • Size2.13"
  • Resolution250×122
  • Viewing Angle>170°
  • Display ColorBlack and White
  • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • Comfortably ReadingEye Care, No Bluelight
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • Power ConsumptionUltra Low
  • Display DurationPersists without Power
  • RefreshingPartial Refresh Support
Features at a glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, requires minimal IO pins
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
operating voltage 3.3V/5V grey scale 2
interface 3-wire SPI, 4-wire SPI partial refresh time 0.3s
outline dimensions 65.00 × 30.50mm full refresh time 2s
display size 48.55 × 23.70mm refresh power 26.4mW(typ.)
dot pitch 0.194 × 0.194mm standby current <0.01uA (almost none)
resolution 250×122 pixels viewing angle >170°
display color black, white
Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico

Raspberry Pi Pico is NOT included.
Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Pinout definition
Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection guide
Part Number Colors Grey Scale Resolution Display size (mm) Outline Dimension (mm) Full Refresh Time (s) Partial Refresh1 Interface
Pico-ePaper-2.13 black, white 2 250 × 122 48.55 × 23.70 65.00 × 30.50 2 SPI
Pico-ePaper-2.9 black, white 2 296 × 128 66.89 × 29.05 82.00 × 38.00 2 SPI
  1. It usually takes about 0.3s for partial refresh

Weight: 0.016 kg

Quick Overview

  1. Pico-ePaper-2.13 x1
