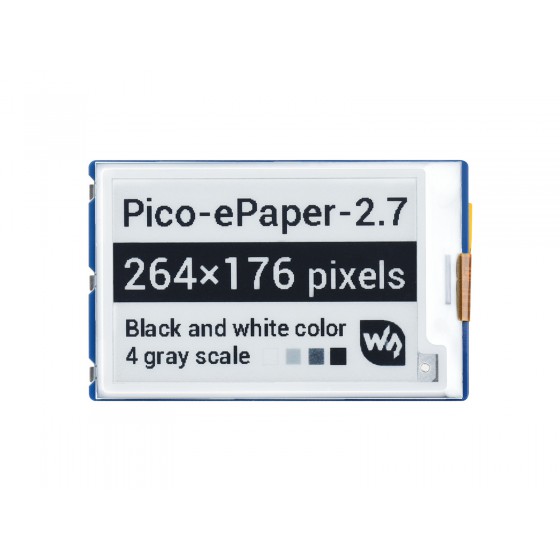

2.7inch E-Paper E-Ink Display Module for Raspberry Pi Pico, 264×176, Black / White, 4 Grayscale, SPI

SKU:20264
Part No.:Pico-ePaper-2.7
Brand:Waveshare

$19.49
Bulk purchase only
PriceQuantity
1~9
$18.2910~49
$17.6950~99
$17.45100+
Description

Details

2.7inch e-Paper E-Ink Display Module for Raspberry Pi Pico, 264×176 pixels, Black / White, SPI Interface
2.7" e-Paper Module for Pico

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

  • Size2.7"
  • Resolution264×176
  • Viewing Angle>170°
  • Display ColorBlack / White
  • Grey Scale4
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • Comfortably ReadingEye Care, No Bluelight
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • Power ConsumptionUltra Low
  • Display DurationPersists without Power
Features at a glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, requires minimal IO pins
  • 3x user buttons for easy interacting
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
operating voltage 3.3V display color black, white
resolution 264×176 pixels grey scale 4
interface 3-wire SPI, 4-wire SPI viewing angle >170°
partial refresh time 0.3s full refresh time 6s
outline dimensions 73.5 × 47.0mm display size 57.288 × 38.192mm
refresh power 26.4mW (typ.) standby current <0.01uA (almost none)
dot pitch 0.217 × 0.217mm
Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico
3x user buttons for easy interacting

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Pinout definition
Product Show

Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection guide
Part NumberColorsGrey ScaleResolutionDisplay size (mm)Full Refresh Time (s)Partial Refresh1FeatureInterface
Pico-ePaper-2.13 black, white 2 250 × 122 48.55 × 23.70 2   SPI
Pico-ePaper-2.13-B red, black, white 2 250 × 122 48.55 × 23.71 15     SPI
Pico-ePaper-2.13-D black, white 2 212 × 104 48.55 × 23.71 2 Flexible SPI
Pico-ePaper-2.66 black, white 2 296 × 152 60.088 × 30.704 5   SPI
Pico-ePaper-2.66-B red, black, white 2 296 × 152 60.088 × 30.704 15     SPI
Pico-ePaper-2.7 black, white 4 264 × 176 57.288 × 38.192 6 Buttons SPI
Pico-ePaper-2.9 black, white 4 296 × 128 66.89 × 29.05 3   SPI
Pico-ePaper-2.9-B red, black, white 2 296 × 128 66.90 × 29.06 15     SPI
Pico-ePaper-2.9-D black, white 2 296 × 128 66.90 × 29.06 2 Flexible SPI
Pico-CapTouch-ePaper-2.9 black, white 4 296 × 128 66.89 × 29.05 3 Touch SPI
Pico-ePaper-3.7 black, white 4 480 × 280 81.12 × 47.32 3   SPI
Pico-ePaper-4.2 black, white 4 400 × 300 84.8 × 63.6 5 Buttons SPI
Pico-ePaper-4.2-B red, black, white 2 400 × 300 84.8 × 63.6 15   Buttons SPI
Pico-ePaper-5.65 7-color 2 600 × 448 114.9 × 85.8 <35   Colorful SPI
Pico-ePaper-5.83 black, white 2 648 × 480 119.232 × 88.320 5     SPI
Pico-ePaper-5.83-B red, black, white 2 648 × 480 119.232 × 88.320 20     SPI
Pico-ePaper-7.5 black, white 4 800 × 480 163.2 × 97.92 4   SPI
Pico-ePaper-7.5-B red, black, white 2 800 × 480 163.2 × 97.92 26     SPI
  1. It usually takes about 0.3s to partially refresh the display

Weight: 0.025 kg

Quick Overview

  1. Pico-ePaper-2.7 x1
