IMX258 13MP OIS USB Camera (A), Optical Image Stabilization, Plug-and-Play, Driver Free

SKU: 18586
Part Number: IMX258 13MP OIS USB Camera (A)
Brand: Waveshare
UPC: 614961958319

$99.99
$98.992+
$98.493+
$98.294+

Related Products:

Description

Details

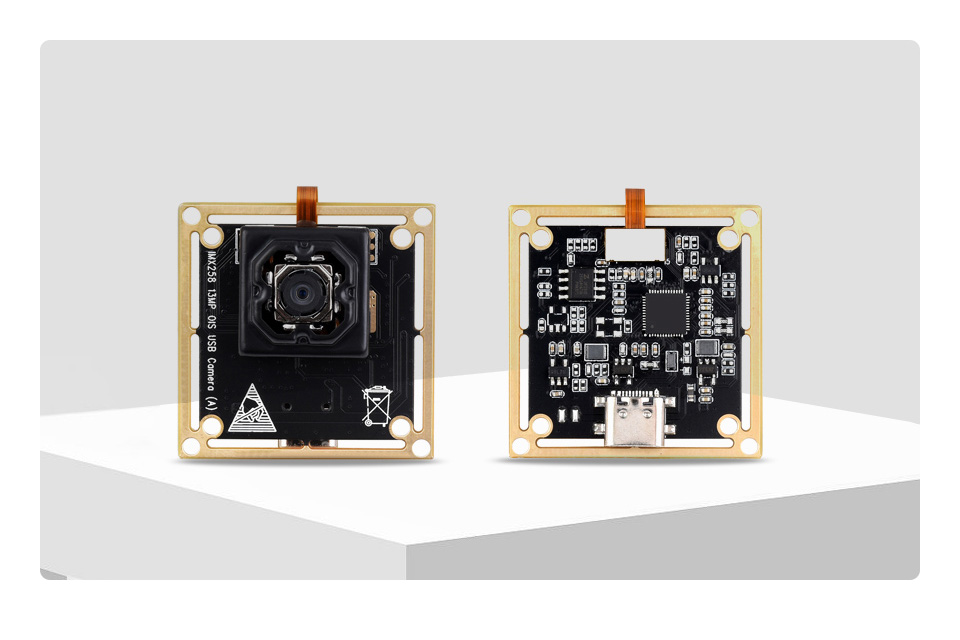

IMX258 13MP USB Camera, Optical Image Stabilization, Plug-and-Play, Driver Free
13MP OIS camera module

IMX258 sensor, Optical Image Stabilization, USB port, auto focusing

Specifications
Pixels 13MP
Sensor IMX258
Stabilization Micro Gimbal Stabilizer (MGS)
Interface USB2.0 (UVC 1.0 compliant)
Camera Sensor size 1/3.06 inch
Aperture (F) 2.4
Focal length (EFL) 2.35 mm
Field of view (FOV) 127°(D) 99.5°(H) 70°(V)
Focusing auto focusing
Image Format support MJPG
Static image resolution 4224 × 3192
Video recording 10 FPS 4192 × 3104 (Full Frame)
20 FPS 3840 × 2160 (4K)
25 FPS 1920 × 1080 (1080P)
Operating voltage 5V ± 5%
Camera size 19.00 × 19.00 × 9.90 mm
Module size 38.00 × 35.80 mm
Supported OS Windows, Linux, mac OS
Optical Image Stabilization feature

OIS camera (left) VS non-OIS camera (right)

Connecting with USB cable
Outline dimensions
Resources & Services

Selection Guide

Part NumberPixelsSensorBest ResolutionDimensionField of View Feature
OV2710 2MP USB Camera (A) 2MP OV2710 1920x1080 38mmx38mm 145° Low-light sensitivity
OV5640 5MP USB Camera (A) 5MP OV5640 2592x1944 18×36mm 135° Auto focusing
OV5648 5MP USB Camera (A) 5MP OV5648 2592x1944 9mmx62mm 70° Small in size
IMX335 5MP USB Camera (A) 5MP IMX335 2592x1944 38×38mm 106° Manually focusing
 IMX179 8MP USB Camera (A) 8MP IMX179 3288x2512 38mmx38mm 145° HD, Embedded digital mic
 IMX258 13MP OIS USB Camera (A) 13MP IMX258 4224×3192 38×35.8mm 127° HD, OIS

Weight: 0.046 kg

Quick Overview

  1. IMX258 13MP OIS USB Camera (A) x1
