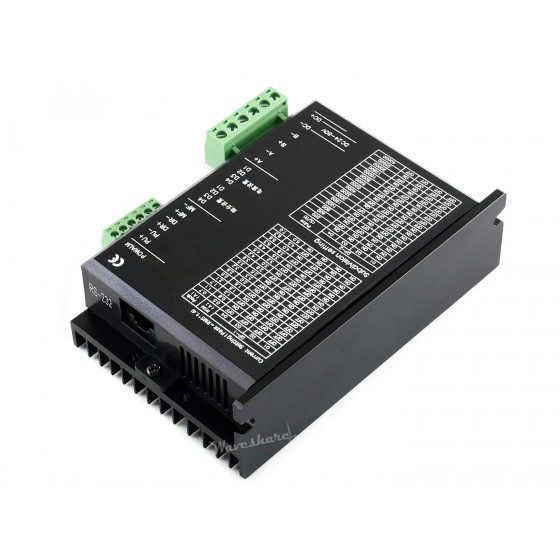

SMD258C Two-Phase Hybrid Stepper Motor Driver

SKU: 15646
Part Number: SMD258C
Brand: Waveshare

$34.99 DISCONTINUED
$33.992+
$33.393+
$32.994+

Description

Details

SMD258C Two-Phase Hybrid Stepper Motor Driver, Resolution up to 40000S/R

Overview

The SMD258C is a two-phase motor driver for hybrid stepper motors, supports 16 grades setting for both drive current and stepping subdivision, resolution up to 40000S/R. It is widely used in CNC equipment, sculpturing machine, cutting machine, etc.

Features

  • Wide range voltage input (DC 24V~80V)
  • 16 grades stepping subdivision setting, resolution up to 40000S/R
  • 16 grades drive current setting, adjustable between 0.5A/Phase and 5.0A/Phase
  • Supports three control modes: common cathode, common anode, and differential
  • Supports alerts for undervoltage, overvoltage, overheat, overcurrent
  • Supports phase memory when power down
  • Optical isolation for both I/O signal and input signal
  • When the stepping pulse stops over 100ms, coil current will be halved automatically
  • Comes with development resources and manual (examples for Raspberry Pi, STM32, Arduino)

Specifications

  • Operating voltage: DC 24V ~ 80V
  • Signal voltage: 4.2V ~ 24V
  • Drive current: 0.5A ~ 5A
  • Signal frequency: ≤150KHz
  • Control mode: common cathode, common anode, and differential

Applications

The SMD258C is suit for medium or small size CNC equipments which requires high resolution, such as:

  • Sculpturing machine
  • Glue dispenser
  • Automatic screw machine
  • Cutting machine

Demo

SMD258C demo

Connections

Symbol Description
PU+ pulse signal optical isolated positive terminal
PU- pulse signal optical isolated negative terminal
DR+ direction signal optical isolated positive terminal
DR- direction signal optical isolated negative terminal
MF+ motor enable signal optical isolated positive terminal
MF- motor enable signal optical isolated negative terminal
A+ stepper motor winding A output positive terminal
A- stepper motor winding A output negative terminal
B+ stepper motor winding B output positive terminal
B- stepper motor winding B output negative terminal
DC+ 24~80V power supply input
DC- power supply ground

Dimensions

SMD258C dimensions

Development Resources

Wiki : www.waveshare.com/wiki/SMD258C

Selection Guide

Part NumberPhasesPower supply (V)Drive current setting (A)Dimension (mm)Equivalent power (W)Applicable motor
SMD258C two-phase DC 24~80 Im0.5~5.0/Ip0.7~7.0 118×76×34 80~100 57 series, 86 series
SMD356C three-phase DC 24~60 Im1.2~6.0/Ip1.7~8.4 118×76×34 80~100 57 series

Weight: 0.257 kg

Quick Overview

Note: stepper motor in the photos is not included.

  1. SMD258C x1
