Details

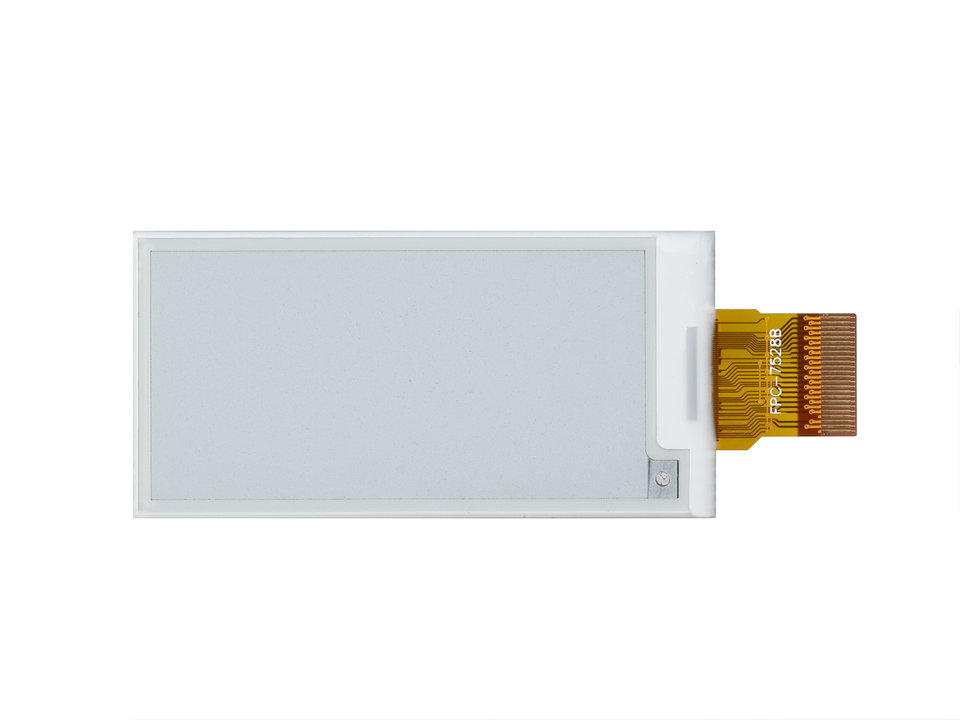

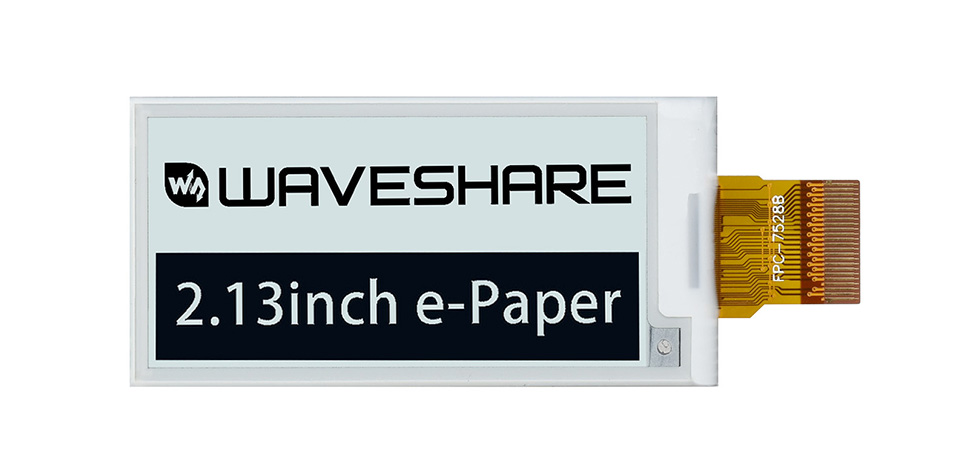

2.13inch E-Paper raw display, 250 × 122 Resolution, Black/White
2.13″ E-Paper raw display
Supports partial refresh, low power, wide viewing angle,
paper-like effect without
electricity
Ideal for price tags, shelf labels, industrial instruments...
- Size
2.13" - Resolution
250 × 122 - Viewing Angle
>170° - Display Color
Black/White - Grey Scale
2 - Communication
SPI - Display Panel
E-paper - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective - Refresh
Partial Refresh
Features at a glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
| operating voltage | 3.3V | grey scale | 2 |
|---|---|---|---|
| interface | 3-wire SPI, 4-wire SPI | Partial refresh | 0.3s |
| outline dimensions | 59.2 × 29.2 × 1.05mm | full refresh time | 2s |
| Display size | 48.55 × 23.70mm | Refresh power | 26.4mW(typ.) |
| DOT PITCH | 0.194 × 0.194mm | standby current | <0.01uA (almost none) |
| RESOLUTION | 250 × 122 pixels | viewing angle | >170° |
| display color | Black/White | ||
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
This is raw display without driver board
To test and compare this raw display easily,
it is recommended to purchase the following solutions:
 |
2.13inch e-paper with driver board 2.13inch e-Paper HAT |
Click here to purchase |
 |
Universal e-Paper Raw Panel Driver HAT e-Paper Driver HAT |
Click here to purchase |
 |
E-paper Wi-Fi/Bluetooth Driver Board e-Paper ESP32 Driver Board |
Click here to purchase |
 |
E-paper Wi-Fi Driver Board e-Paper ESP8266 Driver Board |
Click here to purchase |
 |
E-paper Arduino/NUCLEO Driver Board e-Paper Shield |
Click here to purchase |
 |
2.13inch E-paper Display Case 2.13inch e-Paper Case |
Click here to purchase |
Application examples
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

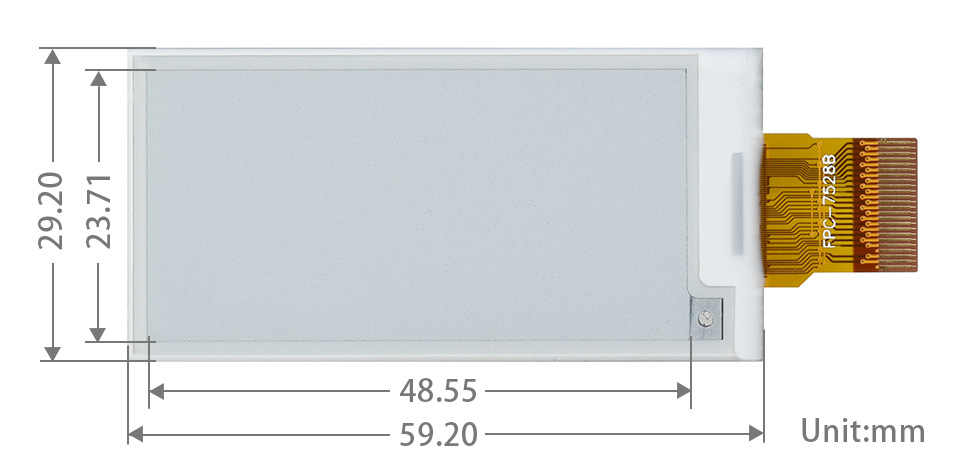

Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Selection Guide
| Part Number | Colors | Grey Scale | Resolution | Display size (mm) | Outline Dimension (mm) | Full Refresh Time (s) | Partial Refresh | Flexible | Interface |
|---|---|---|---|---|---|---|---|---|---|
| 1.02inch e-Paper | black, white | 2 | 128×80 | 21.76 × 14.00 | 32.57 × 18.60 × 0.98 | 2 | √ | SPI | |
| 1.54inch e-Paper | black, white | 2 | 200×200 | 27.60 × 27.60 | 37.32 × 31.80 × 1.05 | 2 | √ | SPI | |
| 1.54inch e-Paper (B) | red, black, white | 2 | 200×200 | 27.60 × 27.60 | 37.32 × 31.80 × 1.05 | 14 | SPI | ||
| 1.54inch e-Paper (G) | red, yellow, black, white | 2 | 200×200 | 27.00 × 27.00 | 37.32 × 31.8 × 1.00 | 20 | SPI | ||
| 1.64inch e-Paper (G) | red, yellow, black, white | 2 | 168×168 | 29.568 × 29.568 | 45.5 × 36.4 × 0.91 | 12 | SPI | ||
| 2.13inch e-Paper | black, white | 2 | 250×122 | 48.55 × 23.71 | 59.20 × 29.20 × 1.05 | 2 | √ | SPI | |
| 2.13inch e-Paper (B) | red, black, white | 2 | 250×122 | 48.55 × 23.70 | 59.20 × 29.20 × 0.98 | 15 | SPI | ||
| 2.13inch e-Paper (G) | red, yellow, black, white | 2 | 250×122 | 48.55 × 23.70 | 59.20 × 29.20 × 1.00 | 16 | SPI | ||
| 2.15inch e-Paper (B) | red, black, white | 2 | 296×160 | 48.10 × 26.00 | 60.8 × 31.8 × 1.00 | 23 | SPI | ||
| 2.15inch e-Paper (G) | red, yellow, black, white | 2 | 296×160 | 48.10 × 26.00 | 60.8 × 31.8 × 1.00 | 20 | SPI | ||
| 2.36inch e-Paper (G) | red, yellow, black, white | 2 | 296×168 | 52.096 × 29.568 | 68.1 × 37.9 × 0.85 | 12 | SPI | ||
| 2.66inch e-Paper | black, white | 2 | 296×152 | 30.704 × 60.088 | 36.304 × 71.820 × 1.00 | 6 | √ | SPI | |
| 2.66inch e-Paper (B) | red, black, white | 2 | 296×152 | 30.704 × 60.088 | 36.304 × 71.820 × 1.00 | 15 | SPI | ||
| 2.66inch e-Paper (G) | red, yellow, black, white | 2 | 360×184 | 60.05 × 30.69 | 72.59 × 37.11 × 1.00 | 26 | SPI | ||
| 2.7inch e-Paper | black, white | 4 | 264×176 | 57.29 × 38.19 | 70.42 × 45.80 × 0.98 | 6 | √ | SPI | |
| 2.7inch e-Paper (B) | red, black, white | 2 | 264×176 | 57.29 × 38.19 | 70.42 × 45.80 × 0.98 | 15 | SPI | ||
| 2.9inch e-Paper | black, white | 4 | 296×128 | 66.89 × 29.05 | 79.00 × 36.70 × 1.05 | 3 | √ | SPI | |
| 2.9inch e-Paper (B) | red, black, white | 2 | 296×128 | 66.90 × 29.06 | 79.00 × 36.70 × 1.20 | 14 | √ | SPI | |
| 2.9inch e-Paper (G) | red, yellow, black, white | 2 | 296×128 | 66.89 × 29.05 | 79.00 × 36.70 × 1.20 | 16 | SPI | ||
| 3inch e-Paper (G) | red, yellow, black, white | 2 | 400×168 | 70.4 × 29.568 | 86.4 × 39.2 × 0.85 | 12 | SPI | ||
| 3.5inch e-Paper (G) | red, yellow, black, white | 2 | 384×184 | 79.68 × 38.18 | 91.75 × 45.03 × 1.00 | 20 | SPI | ||
| 3.52inch e-Paper | black, white | 2 | 360×240 | 74.51 × 49.67 | 84.70 × 54.41 × 1.18 | 1.5 | SPI | ||
| 3.52inch e-Paper (B) | red, black, white | 2 | 360×240 | 74.51 × 49.67 | 84.70 × 54.41 × 0.85 | 16 | SPI | ||
| 3.6inch e-Paper (E) | E6 full color | 2 | 600×400 | 76.20 × 50.80 | 86.60 × 56.00 × 0.78 | 15 | SPI | ||
| 3.7inch e-Paper | black, white | 4 | 480×280 | 47.32 × 81.12 | 54.90 × 93.30 × 0.78 | 3 | √ | SPI | |
| 3.7inch e-Paper (G) | red, yellow, black, white | 2 | 416×240 | 81.54 × 47.07 | 92.99 × 53.00 × 1.00 | 20 | SPI | ||
| 3.97inch e-Paper | black, white | 4 | 800×480 | 99.50 × 60.00 | 96.62 × 56.24 × 0.92 | 3.5 | √ | SPI | |
| 3.97inch e-Paper (G) | red, yellow, black, white | 2 | 800×480 | 99.50 × 60.00 | 96.62 × 56.24 × 0.92 | 21 | SPI | ||
| 4inch e-Paper (E) | E6 full color | 2 | 600×400 | 84.6 × 56.4 | 99.00 × 66.00 × 0.85 | 19 | SPI | ||
| 4.2inch e-Paper | black, white | 4 | 400×300 | 84.80 × 63.60 | 91.00 × 77.00 × 1.18 | 5 | √ | SPI | |
| 4.2inch e-Paper (B) | red, black, white | 2 | 400×300 | 84.80 × 63.60 | 91.00 × 77.00 × 1.05 | 15 | SPI | ||
| 4.2inch e-Paper (G) | red, yellow, black, white | 2 | 400×300 | 84.80 × 63.60 | 91.00 × 77.00 × 1.00 | 21 | SPI | ||
| 4.26inch e-Paper | black, white | 4 | 800×480 | 92.8 × 55.68 | 129.33 × 62.37 × 0.93 | 4 | √ | SPI | |
| 4.26inch e-Paper (G) | red, yellow, black, white | 2 | 800×480 | 92.8 × 55.68 | 105.33 × 62.37 × 0.91 | 20 | SPI | ||
| 4.37inch e-Paper (G) | red, yellow, black, white | 2 | 512×368 | 90.11 × 64.77 | 99.5 × 79.5 × 0.85 | 14 | SPI | ||
| 5inch e-Paper | black, white | 2 | 960×552 | 110.59 × 62.65 | 126.38 × 71.19 × 0.79 | 1.8 | √ | SPI | |
| 5.65inch e-Paper (F) | 7-Color | 2 | 600×448 | 114.9 × 85.8 | 125.4 × 99.5 × 0.91 | <35 | SPI | ||
| 5.79inch e-Paper | black, white | 4 | 792×272 | 139.00 × 47.74 | 150.92 × 56.94 × 1.00 | 3.5 | √ | SPI | |
| 5.79inch e-Paper (B) | red, black, white | 2 | 792×272 | 139.00 × 47.74 | 150.92 × 56.94 × 1.00 | 24 | SPI | ||
| 5.79inch e-Paper (G) | red, yellow, black, white | 2 | 792×272 | 139.00 × 47.74 | 150.92 × 56.94 × 1.00 | 21 | SPI | ||
| 5.83inch e-Paper | black, white | 2 | 648×480 | 119.232 × 88.320 | 125.40 × 99.50 × 1.18 | 5 | SPI | ||
| 5.83inch e-Paper (G) | red, yellow, black, white | 2 | 648×480 | 118.78 × 88.22 | 125.40 × 99.50 × 1.20 | 20 | SPI | ||
| 6inch HD e-Paper | black, white | 16 | 1448×1072 | 122.356 × 90.60 | 138.40 × 101.80 × 0.67 | <1 | √ | Parallel port | |
| 7.3inch e-Paper (E) | E6 full color | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 × 0.91 | 25 | SPI | ||
| 7.3inch e-Paper (F) | 7-Color | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 × 0.91 | 35 | SPI | ||
| 7.5inch e-Paper | black, white | 4 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 × 1.18 | 4 | √ | SPI | |
| 7.5inch e-Paper (B) | red, black, white | 2 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 × 1.18 | 26 | √ | SPI | |
| 7.5inch e-Paper (G) | black, white | 4 | 800×480 | 163.20 × 97.92 | 177.20 × 118.20 × 2.00 | 5 | √ | SPI | |
| 7.5inch e-Paper (H) | red, yellow, black, white | 2 | 800×480 | 163.20 × 97.92 | 170.20 × 111.20 × 1.20 | 22 | SPI | ||
| 7.8inch e-Paper | black, white | 16 | 1872×1404 | 158.18 × 118.64 | 173.80 × 127.60 × 0.78 | <1 | √ | Parallel port | |
| 9.7inch e-Paper | black, white | 16 | 1200×825 | 202.8 × 139.43 | 218.80 × 156.425 × 1.15 | <1 | √ | Parallel port | |
| 10.2inch e-Paper (G) | red, yellow, black, white | 2 | 960×640 | 215.52 × 143.68 | 224.00 × 157.00 × 1.00 | 27 | SPI | ||
| 10.3inch e-Paper | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 216.70 × 174.40 × 0.78 | <1 | √ | Parallel port | |
| 10.3inch e-Paper (D) | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 227.70 × 165.80 × 0.647 | <1 | √ | √ | Parallel port |
| 10.85inch e-Paper | black, white | 2 | 1360×480 | 259.76 × 91.68 | 270.56 × 105.92 × 1.20 | 3.5 | SPI | ||
| 10.85inch e-Paper (G) | red, yellow, black, white | 2 | 1360×480 | 259.76 × 91.68 | 270.56 × 105.92 × 1.20 | 21 | SPI | ||
| 12.48inch e-Paper | black, white | 2 | 1304×984 | 252.98 × 190.90 | 261.50 × 211.00 × 0.30 | <8 | SPI | ||
| 12.48inch e-Paper (B) | red, black, white | 2 | 1304×984 | 252.98 × 190.90 | 261.40 × 211.00 × 1.20 | 37 | SPI | ||
| 13.3inch e-Paper | black, white | 16 | 1600×1200 | 270.40 × 202.80 | 285.80 × 213.65 × 0.78 | <1 | √ | Parallel port | |
| 13.3inch e-Paper (B) | red, black, white | 2 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 × 1.20 | 22 | √ | SPI | |
| 13.3inch e-Paper (E) | E6 full color | 2 | 1600×1200 | 270.40 × 202.80 | 284.70 × 208.80 × 0.850 | 19 | SPI | ||
| 13.3inch e-Paper (K) | black, white | 4 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 × 1.20 | 5 | √ | SPI |
Weight: 0.0176 kg
Quick Overview
Note: This is a raw display, you may also want to buy the assembled variant for easy testing and comparing: 2.13inch e-Paper HAT
2.13inch e-Paper x1
