X-NUCLEO-NFC01A1, Dynamic NFC tag expansion

SKU: 11144
Part Number: X-NUCLEO-NFC01A1
Brand: ST
UPC: 712321341556

$17.99 DISCONTINUED
$17.492+
$17.193+
$16.994+

Description

Details

X-NUCLEO-NFC01A1, Dynamic NFC tag expansion board based on M24SR for STM32 Nucleo

Description

The X-NUCLEO-NFC01A1 is a Dynamic NFC tag evaluation board to allow expansion of the STM32 Nucleo boards.

It is compatible with the Arduino UNO R3 connector layout and it is designed around the M24SR64-Y. The M24SR64-Y device is a dynamic NFC/RFID tag IC with a dual interface. It embeds a 64 Kbit EEPROM memory. It can be operated from an I2C interface or by a 13.56 MHz RFID reader or a NFC phone.

The board is powered through the Arduino UNO R3 connectors. It also includes three LEDs for general purpose.

Key Features

  • M24SR64-Y Dynamic NFC/RFID tag IC
  • NFC antenna: 31 mm x 30 mm 13.56 MHz double layer inductive antenna etched on the PCB (ANT14)
  • Compatible with STM32 Nucleo boards
  • Equipped with Arduino UNO R3 connector
  • Powered through the Arduino UNO R3 connectors
  • 3 color LEDs for general purpose

Photos

X-NUCLEO-NFC01A1 STM32 Nucleo Expansion
X-NUCLEO-NFC01A1 Packaging
X-NUCLEO-NFC01A1 STM32 Nucleo Expansion
X-NUCLEO-NFC01A1 Packaging Back View
X-NUCLEO-NFC01A1 STM32 Nucleo Expansion
X-NUCLEO-NFC01A1

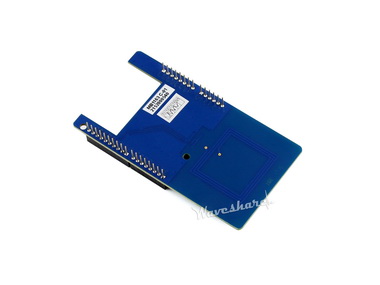

X-NUCLEO-NFC01A1 STM32 Nucleo Expansion
X-NUCLEO-NFC01A1 Back View
X-NUCLEO-NFC01A1 STM32 Nucleo Expansion
X-NUCLEO-NFC01A1
X-NUCLEO-NFC01A1 STM32 Nucleo Expansion
X-NUCLEO-NFC01A1 Back View

What's Onboard

X-NUCLEO-NFC01A1 what's onboard

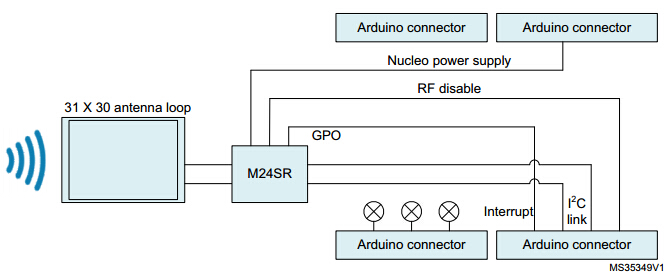

Block Diagram

X-NUCLEO-NFC01A1 board dimensions

Development Resources

  • User manual
  • Schematic
  • Demo code
  • Development software

Wiki : www.waveshare.com/wiki/X-NUCLEO-NFC01A1

Package Content

Weight: 0.061 kg

Quick Overview

  1. X-NUCLEO-NFC01A1 × 1
