X-NUCLEO-IKS01A1, Motion MEMS and environmental sensor expansion

SKU: 11143
Part Number: X-NUCLEO-IKS01A1
Brand: ST

$25.99 DISCONTINUED
$25.492+
$25.193+
$24.994+

Description

Details

X-NUCLEO-IKS01A1, Motion MEMS and environmental sensor expansion board for STM32 Nucleo

Description

The X-NUCLEO-IKS01A1 is a motion MEMS and environmental sensor evaluation board system.

It is compatible with the Arduino UNO R3 connector layout, and is designed around STMicroelectronics’ LSM6DS0 3-axis accelerometer + 3-axis gyroscope, the LIS3MDL 3-axis magnetometer, the HTS221 humidity and temperature sensor and the LPS25HB* pressure sensor.

The X-NUCLEO-IKS01A1 interfaces with the STM32 microcontroller via the I²C pin, and it is possible to change the default I²C port.

Key Features

  • LSM6DS0: MEMS 3D accelerometer (±2/±4/±8 g) + 3D gyroscope (±245/±500/±2000 dps)
  • LIS3MDL: MEMS 3D magnetometer (±4/ ±8/ ±12/ 16 gauss)
  • LPS25HB*: MEMS pressure sensor, 260-1260 hPa absolute digital output barometer
  • HTS221: capacitive digital relative humidity and temperature
  • DIL 24-pin socket available for additional MEMS adapters and other sensors (UV index)
  • Free comprehensive development firmware library and example for all sensors compatible with STM32Cube firmware
  • Compatible with STM32 Nucleo boards
  • Equipped with Arduino UNO R3 connector
  • RoHS compliant

Photos

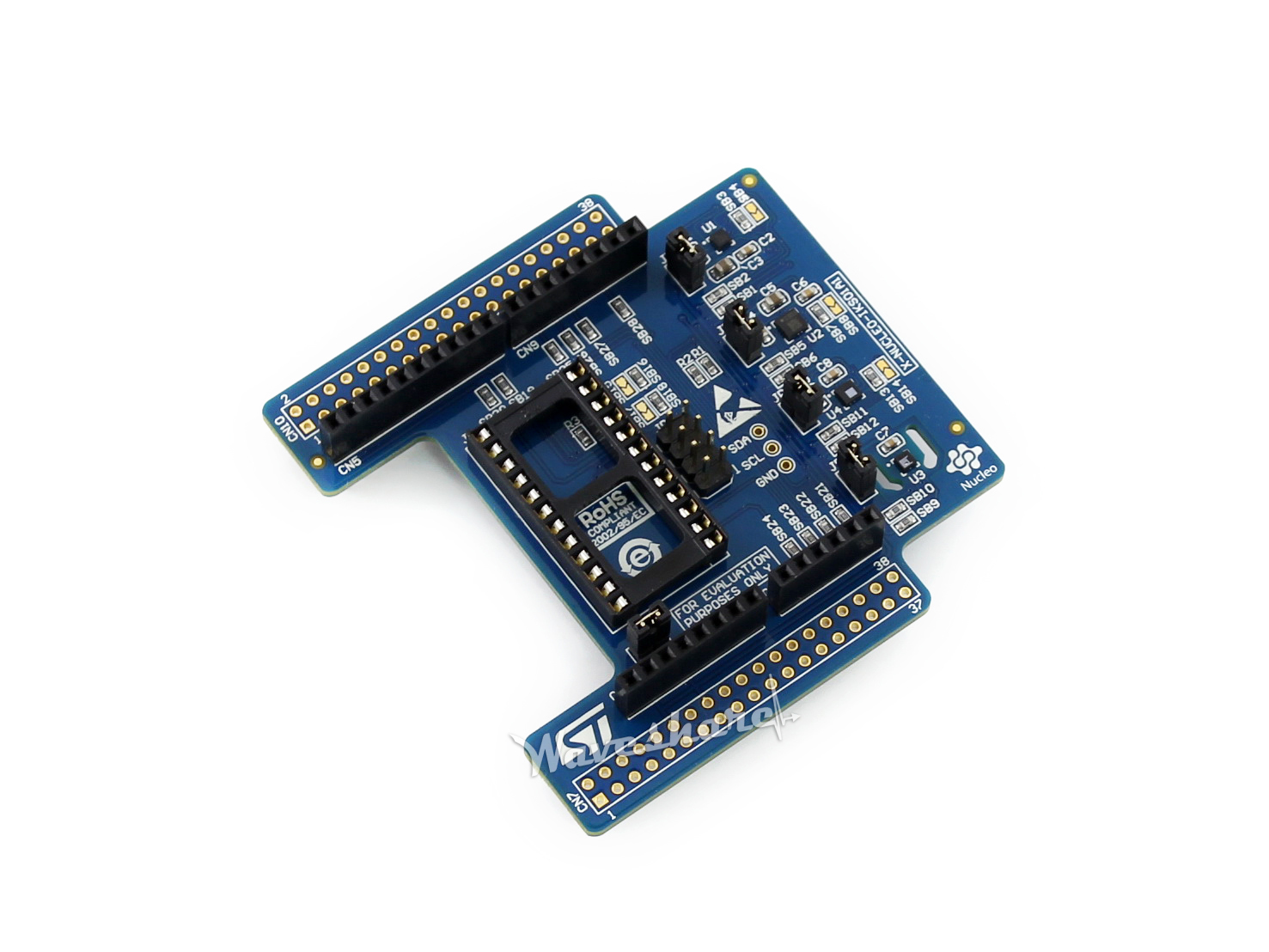

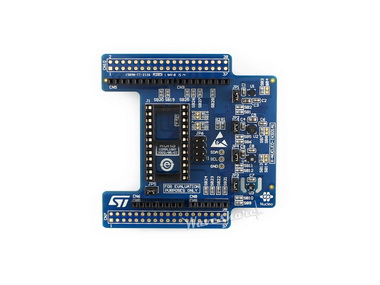

X-NUCLEO-IKS01A1 STM32 Nucleo Expansion
X-NUCLEO-IKS01A1 Packaging
X-NUCLEO-IKS01A1 STM32 Nucleo Expansion
X-NUCLEO-IKS01A1 Packaging Back View
X-NUCLEO-IKS01A1 STM32 Nucleo Expansion
X-NUCLEO-IKS01A1
X-NUCLEO-IKS01A1 STM32 Nucleo Expansion

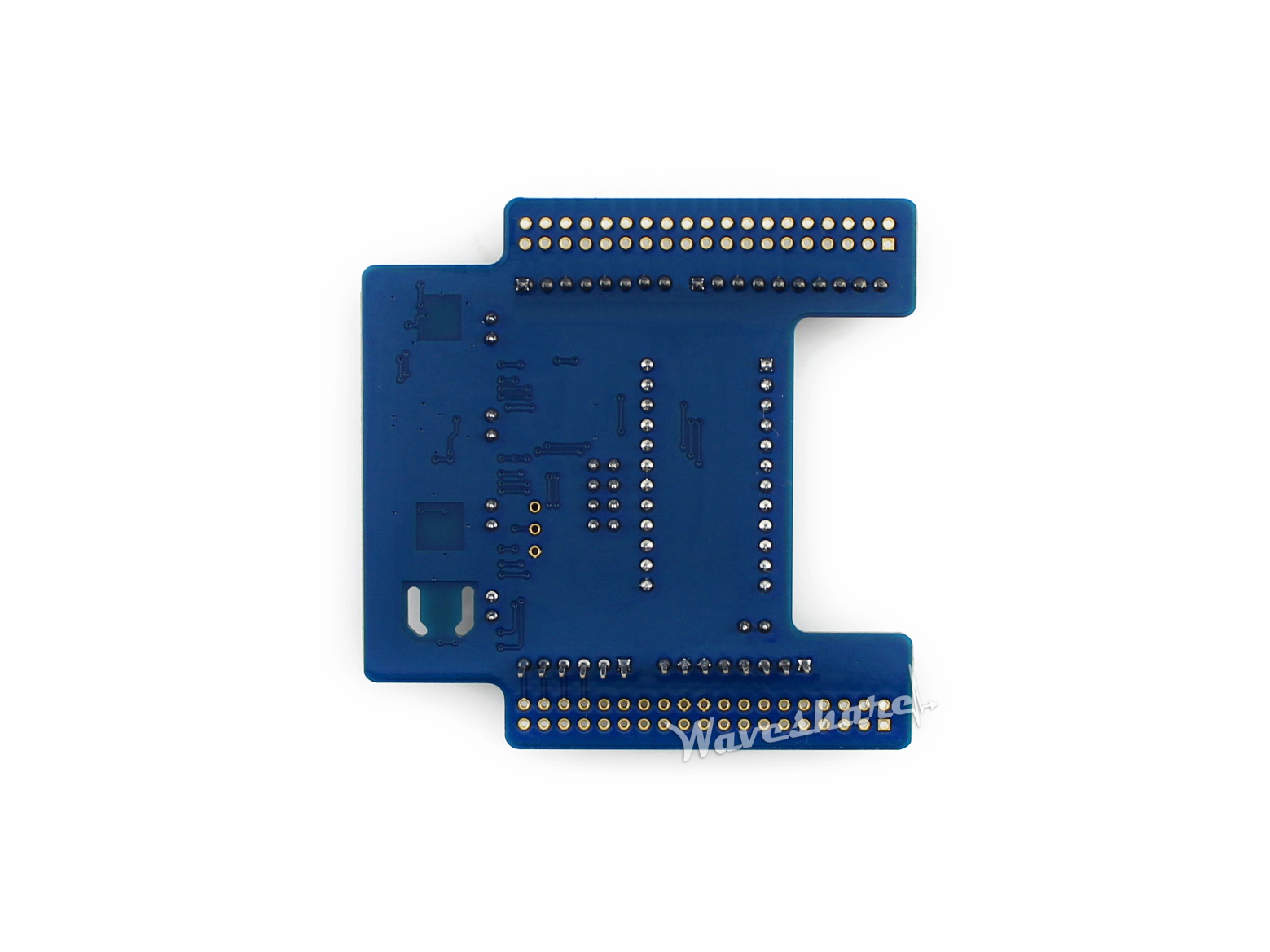

X-NUCLEO-IKS01A1 Back View
X-NUCLEO-IKS01A1 STM32 Nucleo Expansion
X-NUCLEO-IKS01A1
X-NUCLEO-IKS01A1 STM32 Nucleo Expansion
X-NUCLEO-IKS01A1 Back View

What's Onboard

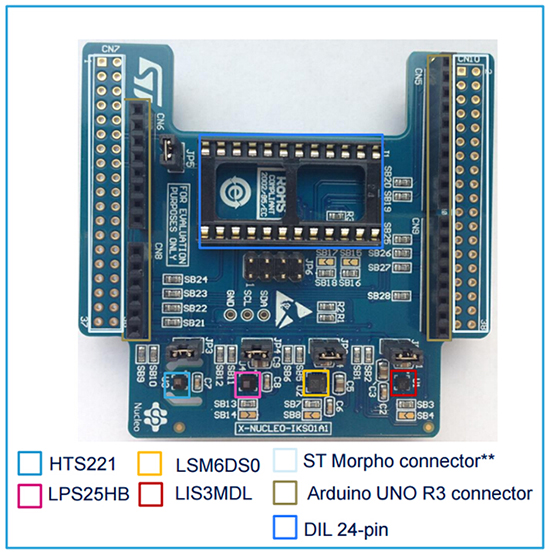

X-NUCLEO-IKS01A1 what's onboard

Block Diagram

X-NUCLEO-IKS01A1 board dimensions

Development Resources

  • User manual
  • Schematic
  • Demo code
  • Development software

Wiki : www.waveshare.com/wiki/X-NUCLEO-IKS01A1

Weight: 0.042 kg

Quick Overview

  1. X-NUCLEO-IKS01A1 × 1
