- Description
Details
USB HUB HAT (B) for Raspberry Pi series, 4x USB 2.0 Ports
USB HUB HAT (B)
extended 4x USB 2.0 Ports, suitable for Raspberry Pi series
Features at a glance
The USB HUB HAT (B) is a 4x ports USB HUB designed for Raspberry Pi. It's pogo pin design is specialized for Zero series, while the onboard normal USB connector can be used to connect with other Raspberry Pi boards or PC through a USB cable.
- 4x extended USB ports, compatible with USB 2.0 / 1.1
- Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero W/Zero WH
- USB HUB connector, for connecting with Raspberry Pi 4B/3B+/3A+/2B through USB cable

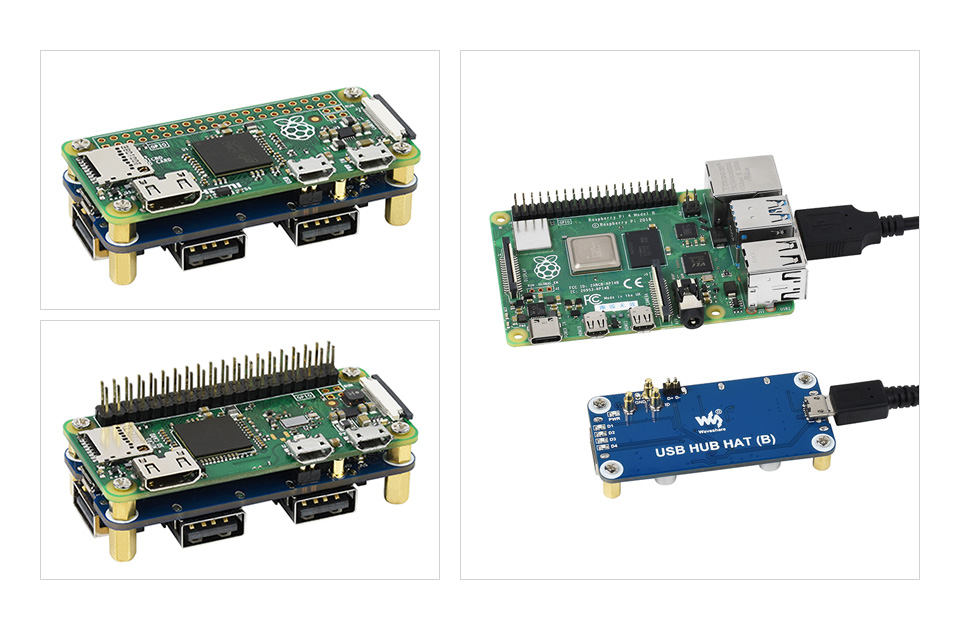

Compatible with Raspberry Pi series
specialized pogo pin for Zero series, plug-and-play, without preventing other HATs
normal USB HUB connector for other Raspberry Pi boards or PC

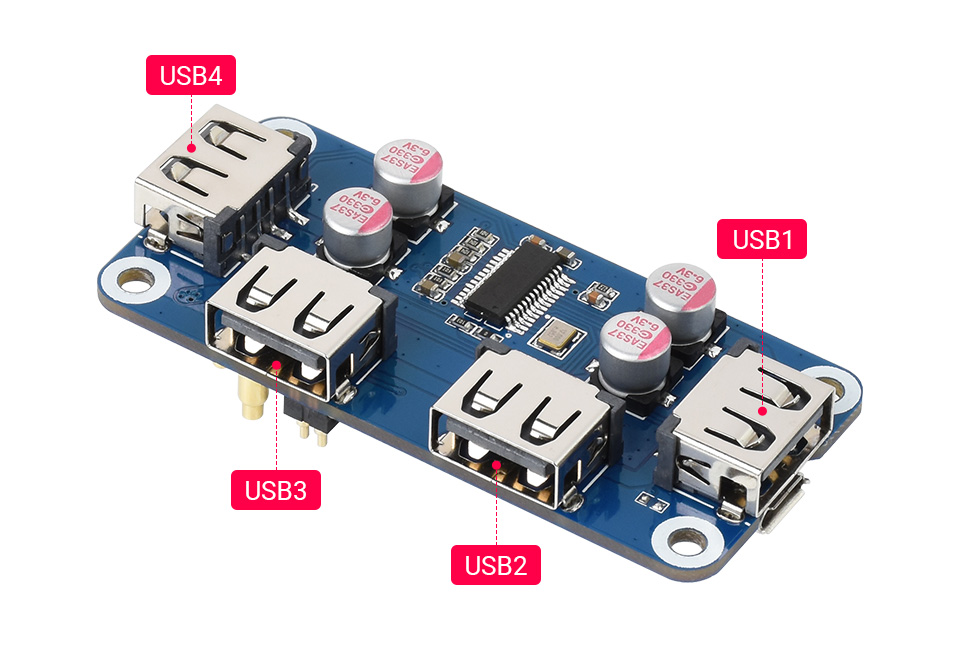

4x extended USB 2.0 ports
USB1 ~ USB4, compatible with USB 2.0 / 1.1
Outline dimensions
Weight: 0.024 kg
Quick Overview
- USB HUB HAT (B) x1
- Screws pack x1
