UART GPS NEO-6M

SKU: 8465
Part Number: UART GPS NEO-6M
Brand: Waveshare
UPC: 700646949243

$18.99 DISCONTINUED
$16.3410+
$15.0250+
$14.49100+

Description

Details

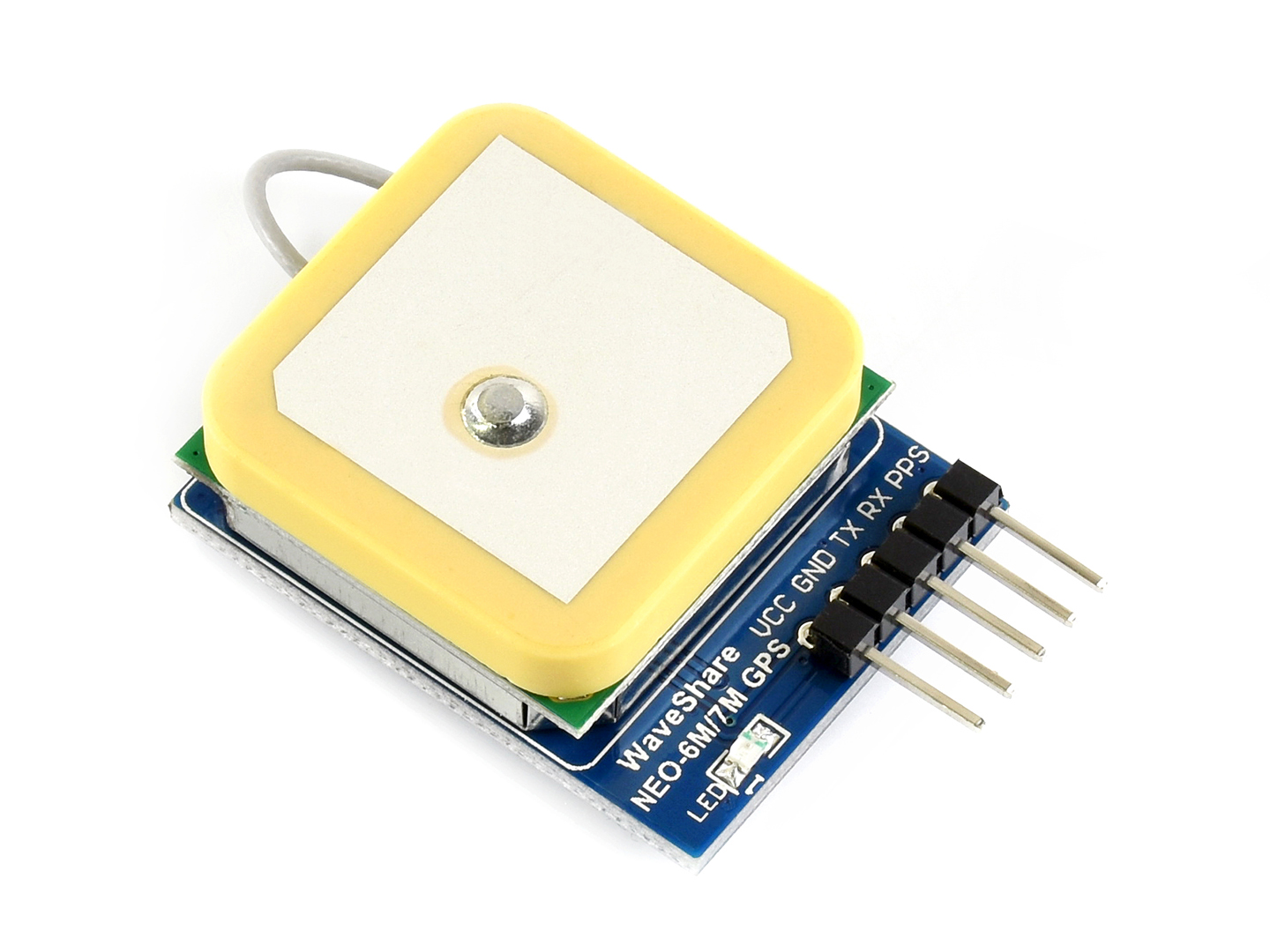

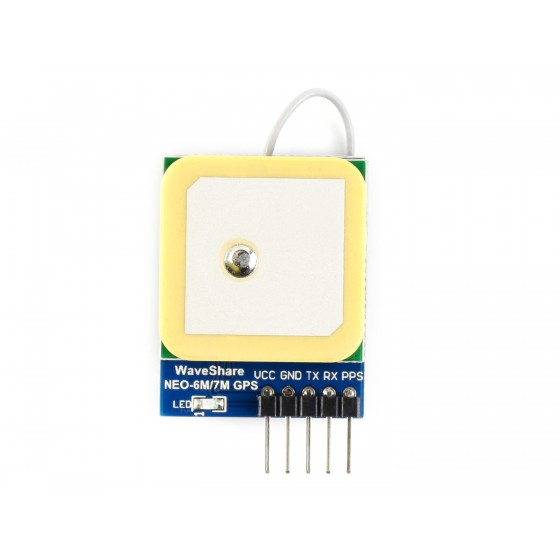

UART GPS Module, NEO-6M onboard, curved/horizontal pinheader

Features

  • NEO-6M onboard, with high-gain active antenna
  • IPX interface, for connecting different active antennas
  • Chargeable backup battery, keeps the ephemeris data when power down, supports hot starts
  • Onboard EEPROM for storing config information

Specifications

  • TTL level, compatible with 3.3V/5V systems
  • Default baud rate 9600, configurable via u-center

Applications

  • GPS Navigator
  • Quadcopter Positioning

How to Use

In the case of working with a MCU:

  • VCC: connects to 3.3V/5V
  • GND: connects to GND
  • TXD: connects to MCU.RX
  • RXD: connects to MCU.TX
  • PPS: connects to MCU.IO, timepulse output (optional)

Software Demo

The UART GPS NEO-6M module supports software like GoogleEarth, etc., pretty easy to use.

User interface:

Positioning info:

Ordering Info

This module provides 2 options for the onboard pinheader:

  • UART GPS NEO-6M: curved/horizontal pinheader
  • UART GPS NEO-6M (B): straight/vertical pinheader

Recommended Items


Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/UART_GPS_NEO-6M


Selection Guide

Part Number UART GPS
NEO-6M
UART GPS
NEO-6M (B)
UART GPS
NEO-7M-C
UART GPS
NEO-7M-C (B)
GPS Module NEO-6M NEO-6M NEO-7M NEO-7M
Pinheader curved/horizontal straight/vertical curved/horizontal straight/vertical
EEPROM X X
GLONASS X X
Receive channel 50 50 56 56
Operating current 45mA 45mA 35mA 35mA
Tracking sensitivity -161dBm -161dBm -162dBm -162dBm
Acquisition sensitivity (cold starts) -147dBm -147dBm -148dBm -148dBm
Navigation update rate 5Hz 5Hz 5Hz 5Hz
Oscillator Crystal Crystal TCXO TCXO
Package Content

Weight: 0.017 kg

Quick Overview

  1. UART GPS NEO-6M x1
  2. 5-pin custom connector jumper wire x1
1
2
