Long-wave IR Thermal Imaging Camera HAT (B) For Raspberry Pi, Options For 45° / 90° FOV, Raspberry Pi IR Camera, 80×62 Pixels, Standard 40PIN GPIO Header

$89.99
Description

Details

We cannot sell this product or provide any tech support to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
Long-wave IR Thermal Imaging Camera HAT (B) For Raspberry Pi, Options for 45° / 90° FOV, Raspberry Pi IR Camera, 80×62 Pixels, Standard 40PIN GPIO Header
Long-wave IR Thermal Imaging
Camera HAT (B)

80×62 Pixels IR Array

Small Size | Non-contact | Motion Detection

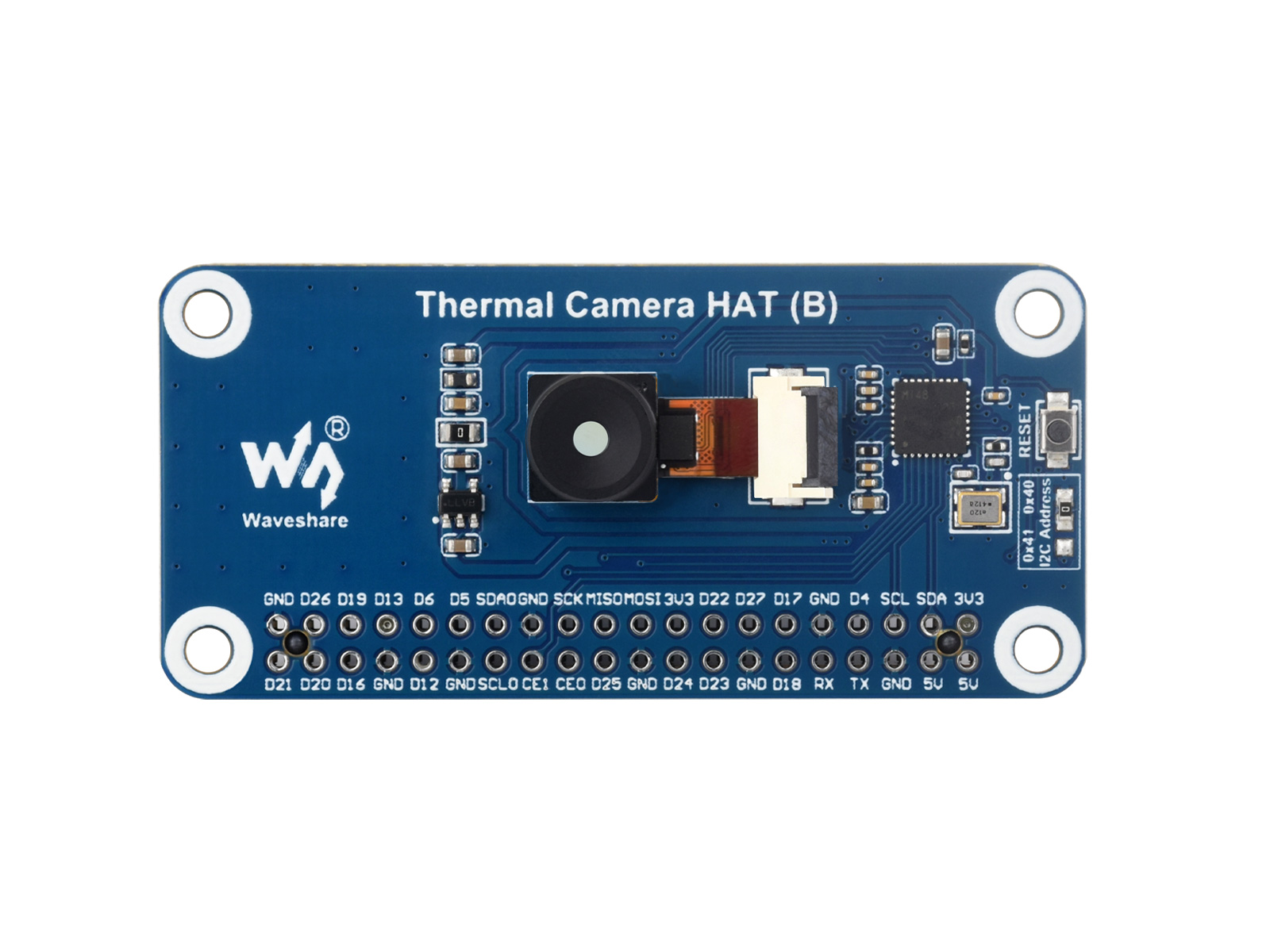

Thermal Camera HAT (B), front view
Features

This is a long-wave IR thermal imaging camera HAT that adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.

Compared to the Thermal Camera HAT, this product features optimized internal filter and image processing algorithm, reducing the lens size to 9 × 9 mm and using FPC cable for connecting. The product provides basic version and wide angle version with 45° / 90° FOV.

Key features include:

  • Adopts the hybrid technology of microbolometer and thermopile, 80x62 array pixels
  • Continuous operation and thermal imaging video stream due to shutterless design
  • Calibrated each pixel to ensure uniformity and accuracy of temperature reading
  • Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
  • Up to 25FPS (Max) thermal imaging video stream output
  • Provides lens options of 45° / 90° FOV
  • Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)

Main applications:

  • Long-term non-contact temperature online monitoring
  • IR thermal imaging devices, IR thermometers
  • Smart home, intelligent building, intelligent lighting
  • Infant and elderly care
  • Fever detection
  • Industrial temperature control, security & safety, intrude/motion detection
  • Small Target Thermal Analysis, Heat Trend Analysis and Solutions

Version Options
Thermal-45 Camera HAT (B)

Thermal-45 Camera HAT (B)
Basic version: 45° FOV

Thermal-90 Camera HAT (B)

Thermal-90 Camera HAT (B)
Wide angle version: 90° FOV

Specifications
Power supply 5V
Operating current 20mA@5V
wavelength range 8~14μm
Operating temperature -40~85℃
Target temperature -40~400℃
Refresh rate 25 FPS (Max)
FOV Basic version: 56°(D) × 45°(H) × 34°(V)
Wide angle version: 122°(D) × 90°(H) × 67°(V)
Noise Equivalent
Temperature Difference
125mK
Measuring Acctracy ±1.5℃ (ambient temp. 10~70℃)
Dimensions 65.0mm × 30.5mm

Onboard 40PIN GPIO Header

Compatible with Raspberry Pi boards

* for reference only, the Raspberry Pi boards above are NOT included


Application Scenarios
Thermal Camera HAT (B), application scenarios

Outline dimensions

Thermal-45 Camera HAT (B)

Thermal-45 Camera HAT (B), outline dimensions

Thermal-90 Camera HAT (B)

Thermal-90 Camera HAT (B), outline dimensions
Selection guide
  Thermal Camera HAT Thermal USB Camera Thermal-90 Camera HAT Thermal-90 USB Camera Thermal-45 Camera HAT (B) Thermal-90 Camera HAT (B)
Pixel array 80×62
Absolute accuracy ±2℃ (ambient temp. 10 ~ 70℃) ±1.5℃ (ambient temp. 10 ~ 70℃)
Target temp. range -20~400℃ -40~400℃
Field of view (FOV) 45° × 45° 90° × 68° 45° × 36° 90° × 67°
Refresh rate 25FPS
Operating temperature -20 ~ 85℃ -40 ~ 85℃
Current 61mA 20mA

Quick Overview

Thermal-45 Camera HAT (B)

  1. Thermal-45 Camera HAT (B) x1
  2. 2 × 20 PIN female header x1
  3. Screws pack x1
1Thermal-45 Camera HAT (B)
2
3

Thermal-90 Camera HAT (B)

  1. Thermal-90 Camera HAT (B) x1
  2. 2 × 20 PIN female header x1
  3. Screws pack x1
1Thermal-90 Camera HAT (B)
2
3
