32F469IDISCOVERY, Discovery kit with STM32F469NI MCU

Description

The STM32F469 Discovery kit (32F469IDISCOVERY) allows users to easily develop applications with the STM32F469 high-performance MCUs with ARM®Cortex®-M4 core and Chrom-ART Accelerator™.

The discovery kit enables a wide range of use cases taking advantage of premium graphics, audio, multi-sensor support, WVGA color display, security, memory extension and connectivity features. An embedded ST-LINK/V2-1 debugger/programmer is included; specialized add-on boards can be connected thanks to the Arduino™ UNO or to the expansion connectors.

Key Features

  • STM32F469NIH6 microcontroller featuring 2 Mbytes of Flash memory and 324 Kbytes of RAM in BGA216 package
  • On-board ST-LINK/V2-1 SWD debugger, supporting USB reenumeration capability
  • Mbed-enabled (mbed.org)
  • USB functions: USB virtual COM port, mass storage, debug port
  • 4 inches 800x480 pixel TFT color LCD with MIPI DSI interface and capacitive touch screen
  • SAI Audio DAC, with a stereo headphone output jack
  • 3 MEMS microphones
  • MicroSD card connector
  • I2C extension connector
  • 4Mx32bit SDRAM
  • 128-Mbit Quad-SPI NOR Flash
  • Reset and wake-up buttons
  • 4 color user LEDs
  • USB OTG FS with Micro-AB connector
  • Three power supply options
  • Expansion connectors and Arduino™ UNO V3 connectors
  • Comprehensive free software including a variety of examples, part of STM32Cube package
  • Supported by a wide choice of integrated development environments

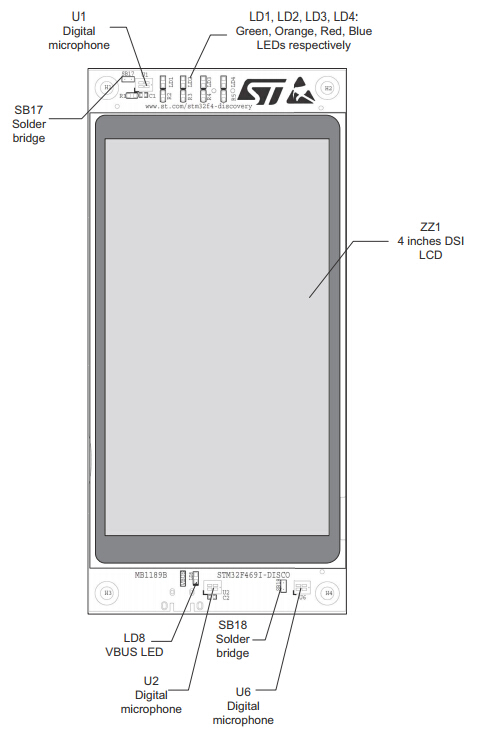

STM32F469I-DISCO: TOP LAYOUT
STM32F469I-DISCO what's onboard

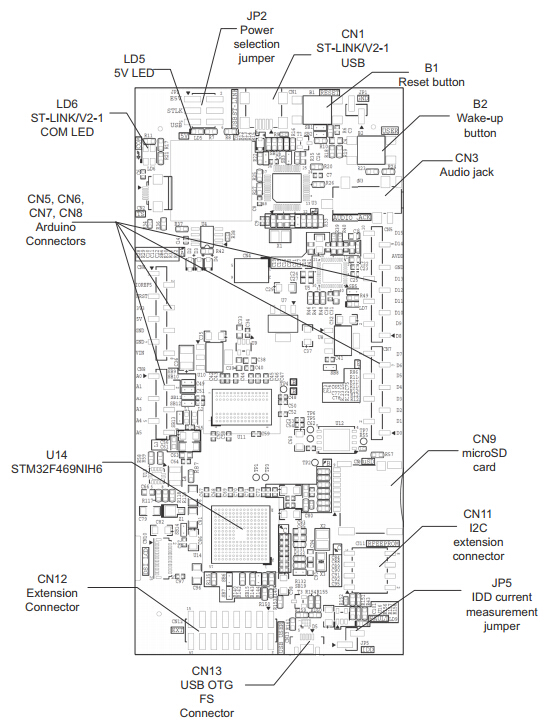

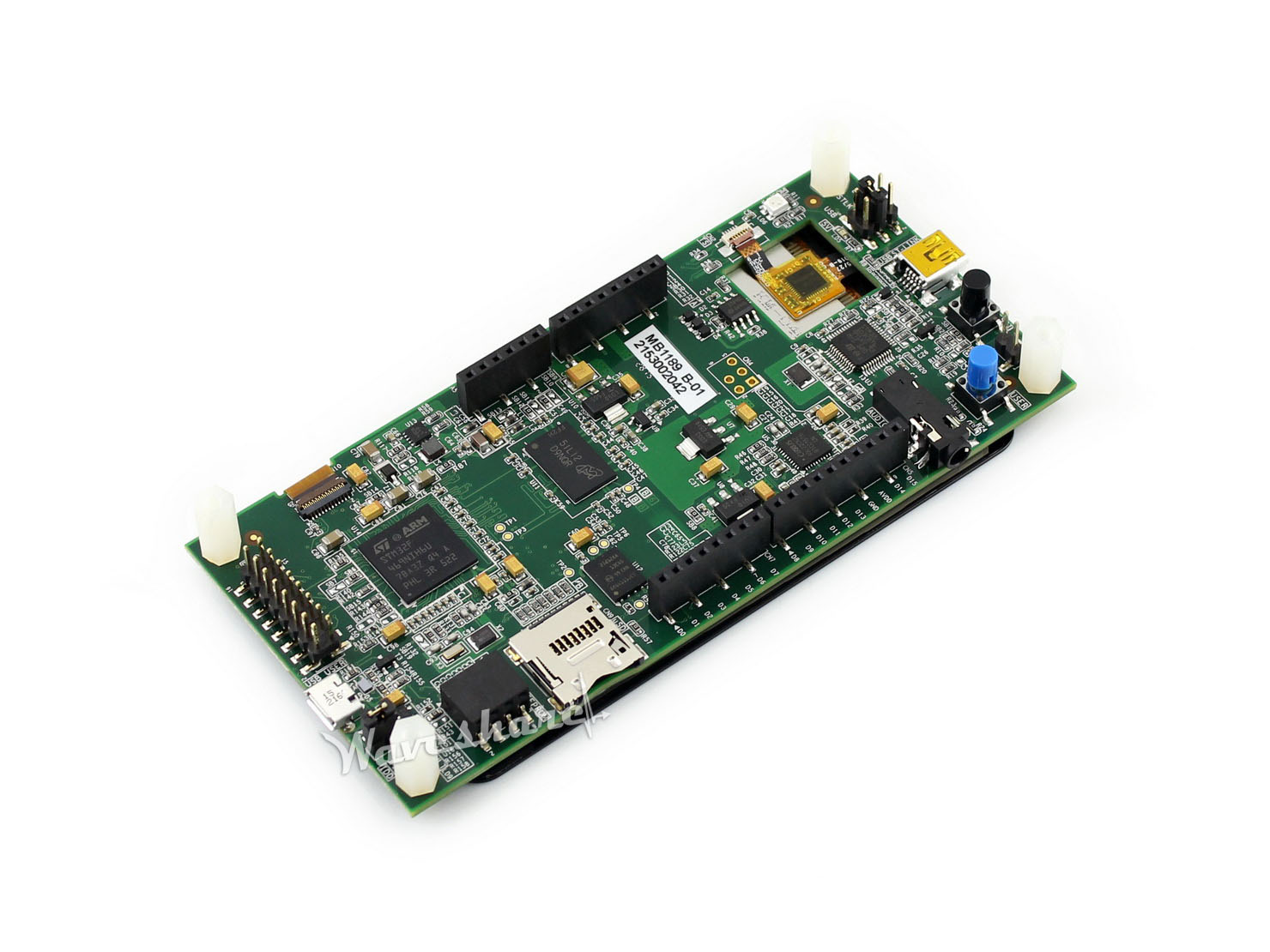

STM32F469I-DISCO: BOTTOM LAYOUT
STM32F469I-DISCO what's onboard

Photos

STM32F469I-DISCO evaluation development board
STM32F469I-DISCO Packaging
STM32F469I-DISCO evaluation development board
STM32F469I-DISCO Packaging Back View
STM32F469I-DISCO evaluation development board

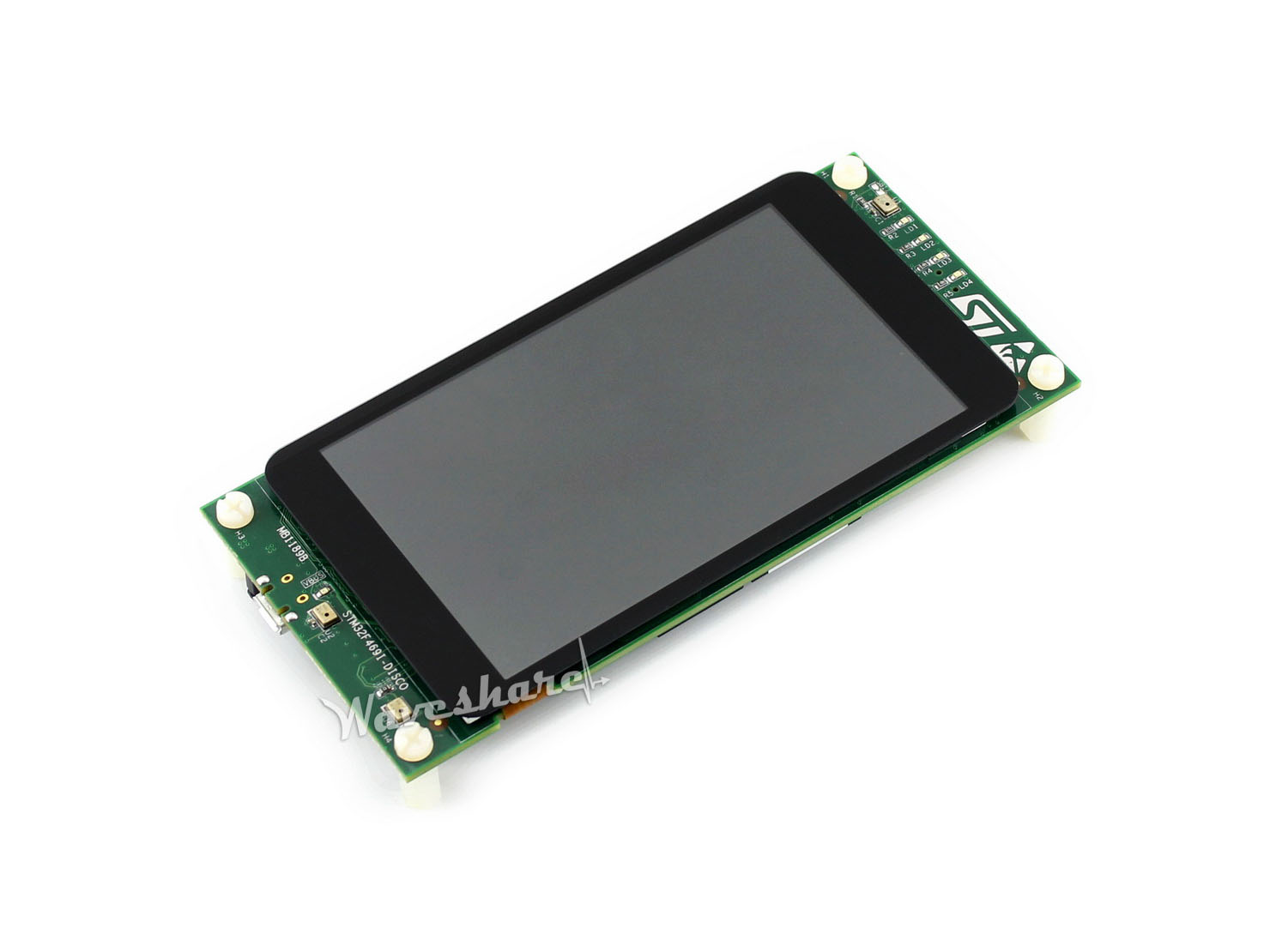

32F469IDISCOVERY Development Board
STM32F469I-DISCO evaluation development board
32F469IDISCOVERY Development Board
STM32F469I-DISCO evaluation development board
32F469IDISCOVERY Discovery kit
STM32F469I-DISCO evaluation development board

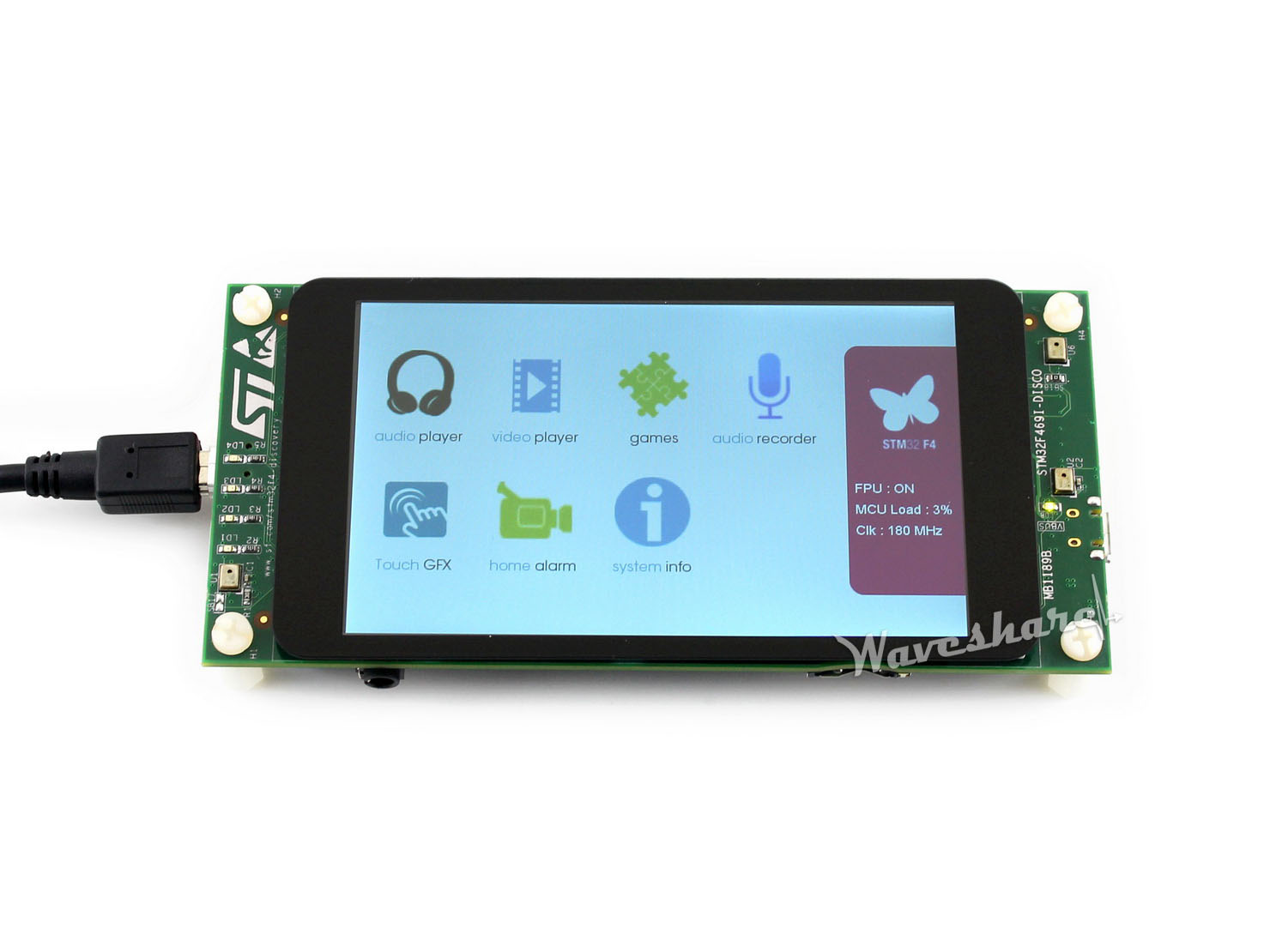

32F469IDISCOVERY Displaying

Dimensions

STM32F469I-DISCO board dimensions

Development Resources

Wiki : www.waveshare.com/wiki/STM32F469I-DISCO

Weight: 0.126 kg

Quick Overview

  1. STM32F469I-DISCO × 1
