Description

The STM32F0DISCOVERY helps you to discover the STM32F0 Cortex-M0 features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.

Based on the STM32F051R8T6, it includes an ST-LINK/V2 embedded debug tool, LEDs, pushbuttons and an additional prototyping board for easy connection of additional components and modules.

A large number of free ready-to-run application firmware examples are available on www.st.com/stm32f0discovery to support quick evaluation and development.

Key Features

• STM32F051R8T6 microcontroller featuring 64 KB Flash, 8 KB RAM in an LQFP64 package
• On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
• Board power supply: through USB bus or from an external 5 V supply voltage
• External application power supply: 3 V and 5 V
• Four LEDs:
  • LD1 (red) for 3.3 V power on
  • LD2 (red/green) for USB communication
  • LD3 (green) for PC9 output
  • LD4 (blue) for PC8 output
• Two push buttons (user and reset)
• Extension header for all LQFP64 I/Os for quick connection to prototyping board and easy probing
• An additional board is provided which can be connected to the extension connector for even easier prototyping and probing.

Photos

STM32F0DISCOVERY Packaging Back View

STM32F0DISCOVERY Development Board

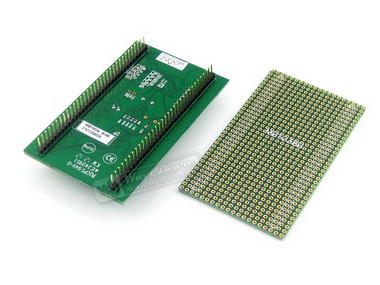

STM32F0DISCOVERY and the Prototyping Board

STM32F0DISCOVERY Development Board

What's Onboard

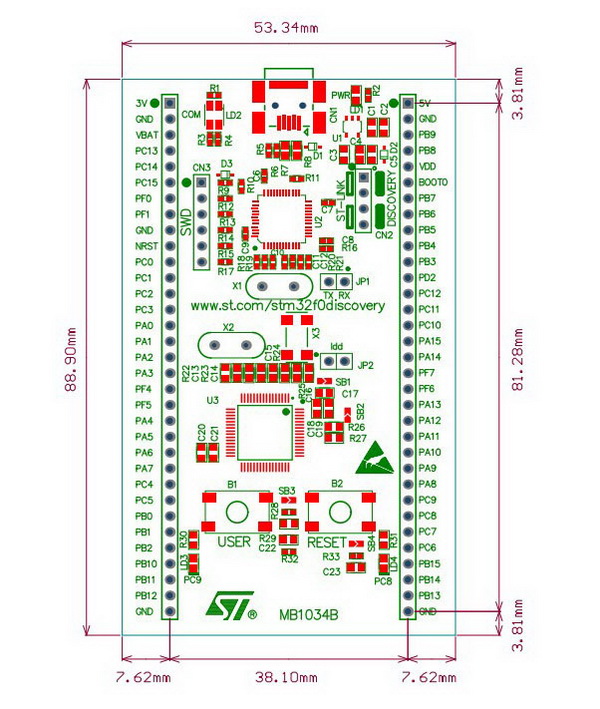

Dimensions

Design Support

For Technical Documentation, Software & Development Tools, Hardware Resources, view the STM32F0DISCOVERY official page on www.st.com to get more information: http://www.st.com/internet/evalboard/product/253215.jsp

Wiki: www.waveshare.com/wiki/STM32F0DISCOVERY
