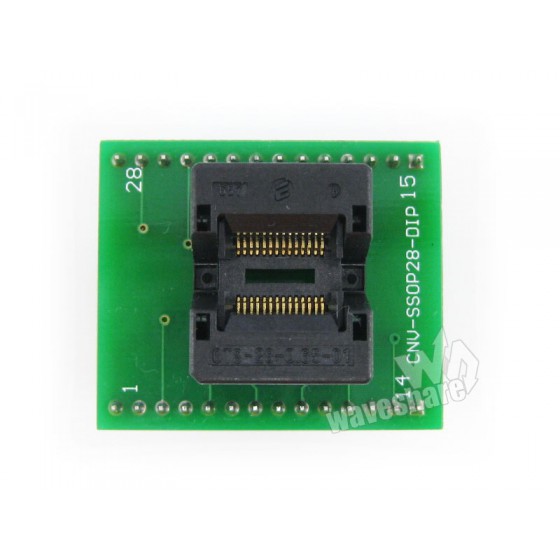

SSOP28 TO DIP28 (A), Programmer Adapter

SKU: 3790
Part Number: SSOP28 TO DIP28 (A)
Brand: Enplas
UPC: 700646947492

$30.99
$29.992+
$28.993+
$27.994+

Description

Details

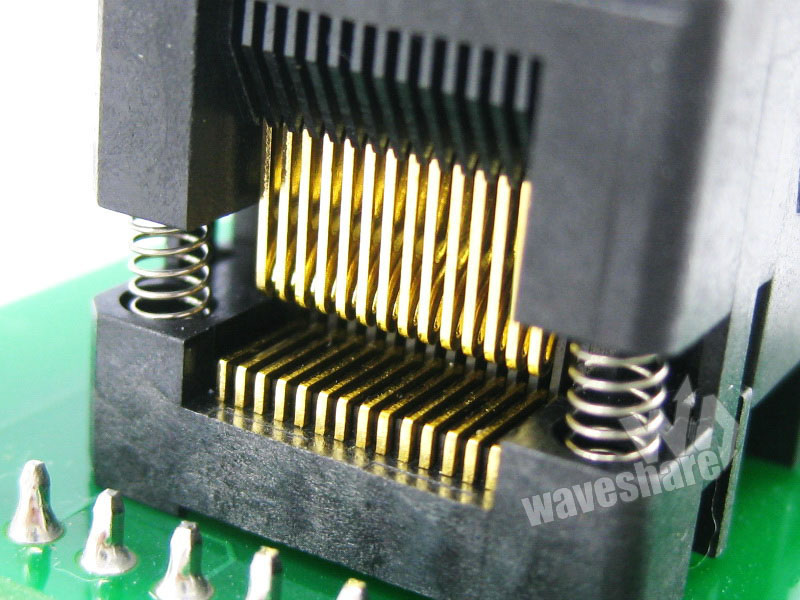

Enplas IC Programmer Adapter for SSOP28 package

Features

  • High quality and durable
  • Tested before shipping
  • Easy to use

Supported Devices

  • Package
    • SSOP28
  • Pitch: 0.65mm
  • Width: 4.4mm

Socket PN

  • OTS-28-0.65-01

Download

DIP Pin Header Dimensions

  • Pitch: 100mil (2.54mm)
  • Width: 600mil-630mil (1.52cm-1.6cm)

Note: we're going to ship the alternative A OR B randomly. As you can see in pictures below, there are nothing different between two alternatives, except the PCB sizes. They provide exactly the same functionality.

Alternative A (PCB sizes: 32mm * 38mm )

Alternative B (PCB sizes: 38mm * 39mm )

Outline and Dimensions

Unit: mm
Part Number Pitch Pins APPLICABLE IC DIMENSIONS (REF.) OUTSIDE DIMENSIONS (REF.)
A B C D E F G H
OTS-28-0.65-01 0.65 28 6.4±0.05 4.4±0.05 5.2 max9.7 21.5 17.6 17.5 3


Weight: 0.021 kg

Quick Overview

  • SSOP28 TO DIP28 adapter × 1
