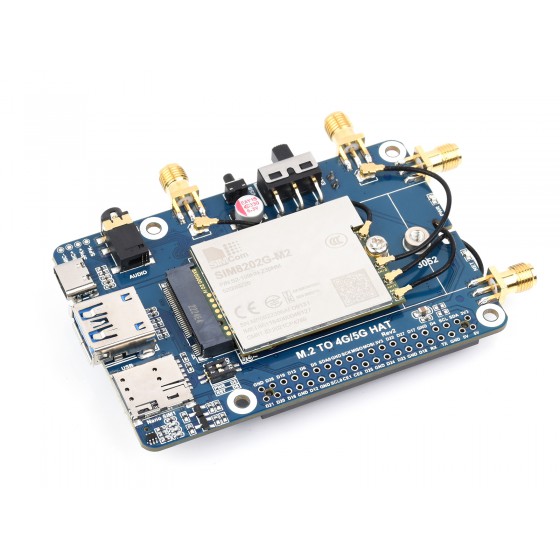

SIM82XX-M2 5G HAT For Raspberry Pi, Quad Antennas 5G NSA, Multi-Band, 5G/4G/3G Compatible, With Case(Optional)

SKU: 23253
Part Number: SIM8262E-M2 5G HAT
Brand: Waveshare



SIM82XX-M2 5G HAT for Raspberry Pi, quad antennas 5G NSA, multi-band, 5G/4G/3G compatible, with case(optional)
Raspberry Pi SIM82XX-M2 5G HAT

Supports 5G NSA And SA Networking, GNSS Positioning

* for reference only, Raspberry Pi board is NOT included

Features at a glance
  • Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band
  • Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
  • Operating system support: Windows/Linux/Android
  • USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
  • Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 / RM5XX series, setting via DIP switches
  • Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
  • Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
  • Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
  • 4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
  • 2x SIM card slot, dual card single standby, switchable via AT command
  • Onboard audio jack and audio decoder, allows audio operation like making phone call
  • High efficiency power supply circuit, up to 3A output current
Version Options

Without Case

With Case

5G Standard 3GPP R15 3GPP R16
Chip Qualcomm Snapdragon X55 Qualcomm Snapdragon X62
Frequency band
Sub-6G n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n78 n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79 n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79 n1, n2, n5, n7, n12, n13, n14, n18, n20, n25, n30, n41, n48, n66, n71, n77, n78, n79
LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 B1,B2, B4, B5, B7, B12, B13, B14, B17, B18, B19, B25, B26, B29, B30, B66, B71
LTE-TDD B34, B38, B39, B40, B41, B42, B43, B48 B38, B39, B40, B41, B42, B43 B38,B41,B42,B43, B46, B48
WCDMA B1, B2, B3, B4, B5, B8 B1, B5, B8 B1,B2,B4,B5,B8
GNSS GPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
Sub-6G 2.4 Gbps (DL)  /  500 Mbps (UL)
LTE 1 Gbps (DL)  /  200 Mbps (UL)
HSPA+ 42 Mbps (DL)  /  5.76 Mbps (UL)
Software functions
Operating systems Windows/Linux/Android
Communication protocols TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
SMS Supports MT, MO, CB, Text, PDU
Firmware upgrade Supports firmware upgrade via USB port
Hardware Specifications
SIM Card 1.8V/2.95V
Antenna For 3G/4G/5G/GNSS
6 × IPEX-4 connectors 4 × IPEX-4 connectors
Power Supply 3.135~4.4V
Form Factor M.2
Dimensions 52.0 × 30.0 × 2.3 mm 42.0 × 30.0 × 2.3 mm
Operating Temperature -30℃ ~ +70℃
Applicable regions except Americas Americas
The applicable regions above are for reference only, please choose the right module according to your local operator network coverage and supported frequency bands
Application examples CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security

Multi mode multi band

applicable for most of the countries and regions

Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

Multi system support, easy to use

supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...

Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use

Connection examples

for Windows PC or Jetson Nano series, use a USB cable
for Raspberry Pi 4B/3B+, or CM4-IO-BASE-A/B, use the purpose-made USB adapter

connecting with Raspberry Pi 4B

connecting with Raspberry Pi 3B+

connecting with CM4 IO Base

Cloud Communication
Multi-constellation High-Precision GNSS

supports GPS, Beidou, Glonass, Galileo, QZSS

Phone Call & SMS support

allows using AT commands to make phone call or send SMS

Standard Raspberry Pi 40PIN GPIO header

compatible with Raspberry Pi series and Jetson Nano, stackable design for more HATs

* for reference only, please check the Package Content section for exact part list.
High speed cooling fan

better heat dissipation for both Raspberry Pi and the 5G module

Optional Case

Multi Installation Methods, Convenient For Various Application Scenarios Such As Industry

* The case is optional and only suitable for Raspberry Pi 4B, please choose a proper option before placing order

Application examples

5G Wireless Router
Combined with OpenWrt, turns the Raspberry Pi into a 5G wireless router, providing WiFi hotspot for smartphones to easily access the 5G Network.

5G Live Streaming
While mounting an additional camera, it is able to do live streaming on webpage or live platform through ffmpeg video stream.

More Possibilities
Outline Dimensions

Weight: 0.257 kg

Quick Overview

The power supply of this product is not included, it is recommended to used with a 5V/3A Power Supply
  1. OPTIONS Protection case kit x1
  2. M.2 TO 4G/5G HAT x1
  3. OPTIONS SIM82XX-M2 5G module x1
  4. Antenna 4pcs x1
  5. IPEX adapter cable 4pcs x1
  6. 2*20PIN pin header x1
  7. Passive GPS antenna x1
  8. Dual plug USB3.0 cable x1
  9. USB3.0 adapter x1
  10. USB2.0 adapter x1
  11. SMA protective cap 4pcs x1
  12. Screws pack x1
