Details
Raspberry Pi 3 Model B + 5inch HDMI LCD (B) + Bicolor case + 16GB Micro SD card
Overview
The Raspberry Pi 3 is the third generation Raspberry Pi. It replaced the Raspberry Pi 2 Model B in February 2016. Compared to the Raspberry Pi 2 it has:
- A 1.2GHz 64-bit quad-core ARMv8 CPU
- 802.11n Wireless LAN
- Bluetooth 4.1 & Bluetooth Low Energy (BLE)
Raspberry Pi 3 Features
- BCM2837B0, 1.2GHz 64-bit quad-core ARM Cortex-A53
- 1GB RAM
- 10/100 Ethernet port
- 802.11n WiFi NIC
- Bluetooth 4.1 & Bluetooth Low Energy (BLE)
- HDMI port
- USB 2.0 interface x 4
- Micro SD card slot
- Combined 3.5mm audio jack and composite video
- 40-pin GPIO interface
- Camera interface (CSI)
- Display interface (DSI)
- Upgraded power management, supports more peripherals (requires a 2.5A power supply or above)
The LCD
- 800x480 high hardware resolution
- Resistive touch control
- Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, single touch, and driver free
- Backlight can be turned off to lower power consumption
Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable
More info : 5inch HDMI LCD (B)
The Case
- Material : high quality bicolor Acrylic, black and white
- Comes with bottom holder, optional tilt angle, 45° or 60°
- Features mounting holes for Raspberry Pi B/A+/B+/2B/3B/3B+/4B, Banana Pro
More info : Bicolor Case for 5inch LCD Type B
Photos
Development Resources
Wiki : www.waveshare.com/wiki/RPi3_B_Package_E
Raspberry Pi 3 Selection Guide
| Package Contents | Products | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item | Description | Acce. A | Acce. B | Package B | Acce. C | Package C | Acce. D | Package D | Acce. E | Package E | Acce. F | Package F | Acce. α | Package α |
| RPi3 B | Raspberry Pi 3 Model B | √ | √ | √ | √ | √ | √ | |||||||
| Micro SD Card 16GB | 16GB Miro SD Card, class 10 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |
| 5V 3A Power Adapter | Provides 5V 3A power supply, micro USB plug | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |
| Pioneer600 | Expansion Board, provides expansion interfaces and onboard components | √ | √ | |||||||||||
| DS18B20 | Temperature sensor | √ | √ | |||||||||||
| Infrared Remote Controller | IR control | √ | √ | √ | √ | |||||||||
| USB Camera 0307 | USB camera | √ | √ | |||||||||||
| Mini Wireless Keyboard | Mini wireless keyboard with touchpad | √ | √ | |||||||||||
| HDMI to VGA Convertor | For working with VGA monitors | √ | √ | |||||||||||
| ARPI600 | Raspberry Pi to Arduino | √ | √ | |||||||||||
| Sensors Pack | Various sensors in one pack | √ | √ | |||||||||||
| 5inch HDMI LCD (B) | 5inch HDMI interface touch screen LCD | √ | √ | |||||||||||
| Bicolor Case for 5inch LCD Type B | Case and holder | √ | √ | |||||||||||
| 7inch HDMI LCD (C) | 7inch HDMI interface touch screen LCD, high-definition | √ | √ | |||||||||||
| Bicolor Case for 7inch LCD | Case and holder | √ | √ | |||||||||||
| RPi Camera (B) | Raspberry Pi camera, adjustable focus | √ | √ | |||||||||||
| AlphaBot | Robotic platform (line tracking, obstacle avoidance, speed measuring) | √ | √ | |||||||||||
| SG90 servo | servo and 2 DOF pan head | √ | √ | |||||||||||
| DVK512 | Expansion Board, provides expansion interfaces and onboard components | √ | ||||||||||||
| 3.5inch RPi LCD (A) | 3.5inch touch screen LCD | √ | ||||||||||||
| PCF8591 AD DA Board | 8-bit AD/DA module | √ | ||||||||||||
| L3G4200D Board | Angular rate sensor | √ | ||||||||||||
| LSM303DLHC Board | e-compass | √ | ||||||||||||
| Mix Board | Buzzer, Joystick, Infrared Receiver, Temperature Sensor | √ | ||||||||||||
| Logic Level Converter | 8ch Logic Level Bus Transceiver | √ | ||||||||||||
Weight: 0.46 kg

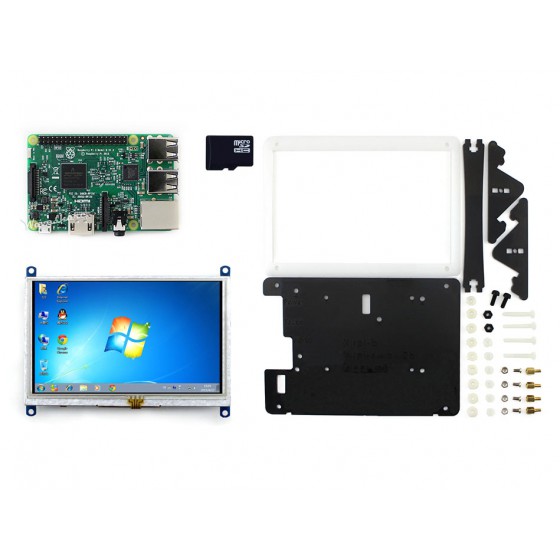

Quick Overview
- Raspberry Pi 3 Model B x 1
- 5inch HDMI LCD (B) x 1
- HDMI cable x 1
- Touch pen x 1
- USB type A plug to micro B plug cable x1
- RPi LCD screws pack (4pcs) x 1
- Bicolor Case for 5inch LCD Type B × 1
- Screws Pack × 1
- Micro SD Card 16GB x1
- Power adapter US standard 5V/3A micro x1
- Micro SD Card Reader x 1 (Extra Free)
