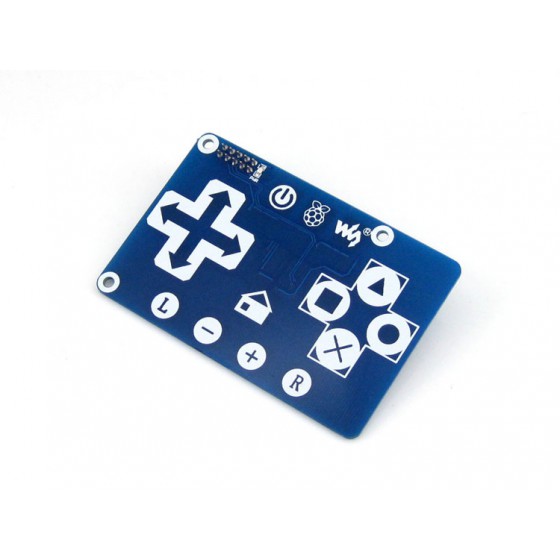

RPi Touch Keypad

SKU:10232
Part No.:RPi Touch Keypad
Brand:Waveshare

$6.99 DISCONTINUED
PriceQuantity
$6.492+
$6.193+
$5.994+
Description

Details

Capacitive Touch Keypad Designed for Raspberry Pi

Features

  • Supports any revision of Raspberry Pi (directly-pluggable)
  • Provides your Pi with 16 touch keys
  • Features TONTEK TonTouch touch pad detector IC TTP229-LSF, supports up to 16 keys with adjustable sensitivity and built-in LDO
  • The system re-calibrates automatically when all keys are not detected touch more than about 4 seconds

Specifications

  • Interface : I2C
  • Keys : 16
  • Sampling rate : 8Hz
  • Human Body Mode : 6KV
  • Operating voltage : 2.4V-5.5V
  • Operating temperature : -40℃ to +85℃
  • Storage temperature : -50℃ to +125℃
  • Dimensions : 8.5CM × 5.6CM

How to Use

  • After power-on have about 0.5sec stable-time. During the time do not touch the key pad, and all functions are disabled

Pinouts

  • VCC : Power supply (2.4V-5.5V)
  • GND : Ground
  • SDA : I2C SDA
  • SCL : I2C SCL

Dimensions


Downloads

Development resources: schematic, demo code, datasheets, etc.
Download: www.waveshare.com/wiki/RPi_Touch_Keypad

Weight: 0.017 kg

Quick Overview

  1. RPi Touch Keypad × 1
  2. RPi screws pack (2pcs) x 1
