RGB Full-Color LED Matrix Panel, 4mm Pitch, 64×32 Pixels, Adjustable Brightness

SKU: 22101
Part Number: RGB-Matrix-P4-64x32
Brand: Waveshare

$19.99
$18.7910+
$18.1950+
$17.95100+

Related Products:

Description

Details

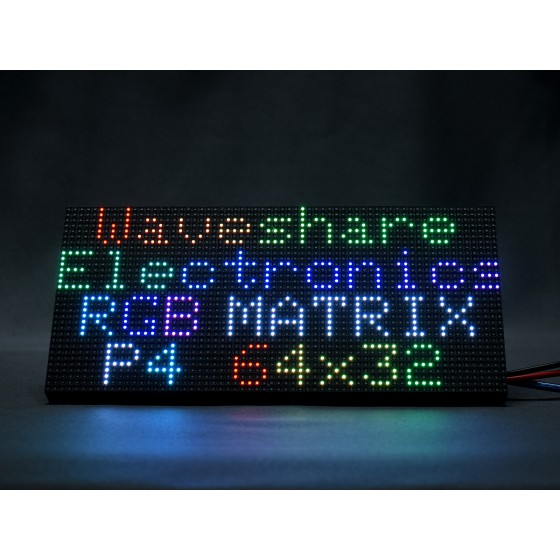

RGB full-color LED matrix panel, 4mm Pitch, 64×32 pixels, adjustable brightness
64×32 RGB LED matrix panel

2048 individual RGB LEDs, 4mm pitch

supports Raspberry Pi and Arduino...

Features at a glance

By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

  • 2048 individual RGB LEDs, full-color display, adjustable brightness
  • 64×32 pixels, 4mm pitch, allows displaying text, colorful image, or animation
  • 256×128mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

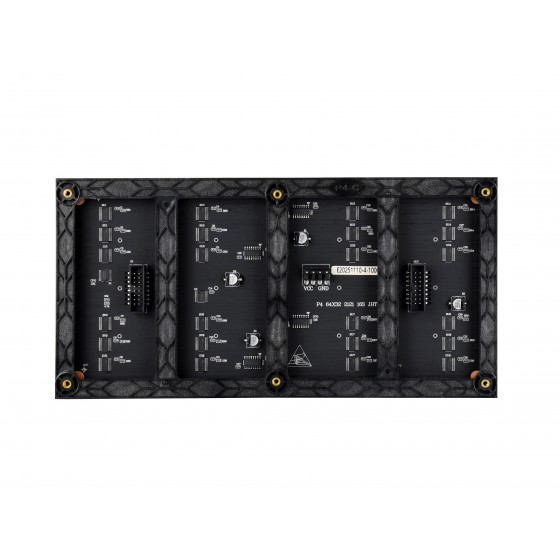

  • Onboard two HUB75 header, one for controller data input, one for output, chain support
  • Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on
Specifications
Dimensions 256mm × 128mm
Pixels 64×32=2048 DOTS
Pitch 4mm
Pixel form 1R1G1B
Viewing angle ≥160°
Control type synchronization
Driving 1/16 scan
Header HUB75
Power supply 5V / 4A (VH4 header input)
Power ≤20W
Header definition
Pin Description Pin Description
VCC 5V power input GND Ground
R1 R higher bit data R2 R lower bit data
G1 G higher bit data G2 G lower bit data
B1 B higher bit data B2 B lower bit data
A A line selection B B line selection
C C line selection D D line selection
E E line selection CLK clock input
LAT/STB latch pin OE output enable
chainable design

multi LED matrix panel can be chained together to build a larger panel
via HUB75 input/output header

Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.
Usage scenarios

DIY maker desktop or wall mount display, signboard, environment monitor...

Dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide
PART NUMBERPIXELSPITCHVIEWING ANGLEPOWER SUPPLYDRIVINGDIMENSIONS
P3-64x32 64×32 3mm ≥160° 5V/2.5A 1/16 scan 192×96
P3-64x64 64×64 3mm ≥160° 5V/4A 1/32 scan 192×192
P4-64x32 64×32 4mm ≥160° 5V/4A 1/16 scan 256×128

Weight: 0.255 kg

Quick Overview

  1. RGB-Matrix-P4-64x32 LED matrix and accessories x1
  2. Power supply terminal adapter x1
  3. 16P wire ~30cm x1
It is recommended to used with a 5V 4A power supply
